5V to 3.3V 8-Channel Optocoupler Isolator Photoelectric Isolation Module Level Voltage Converter 8Bit NPN Output PLC Signal Converter

15021
5 9
$10.99 $7.69
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:

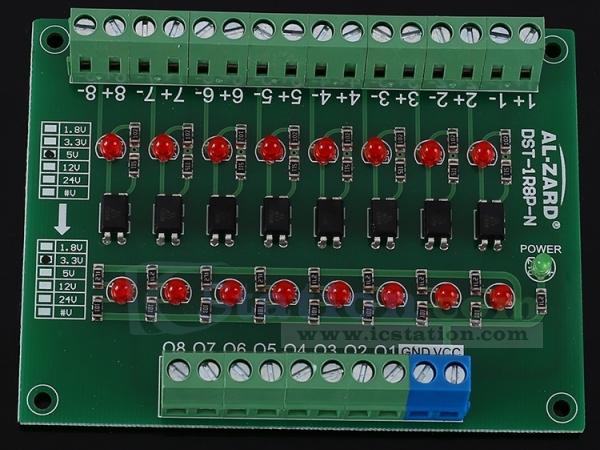

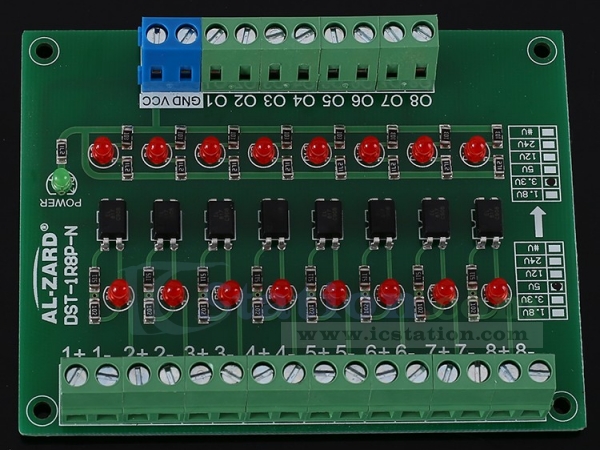

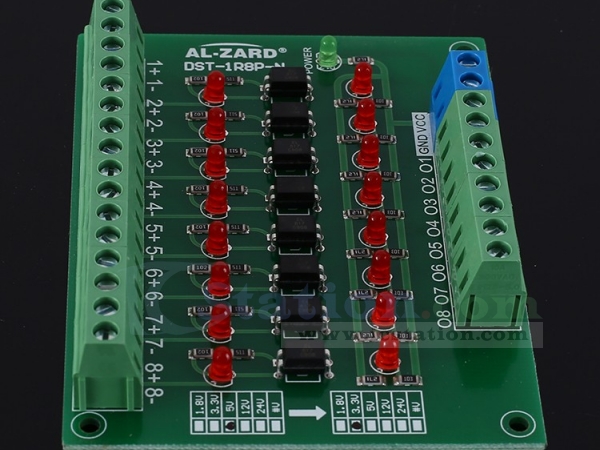

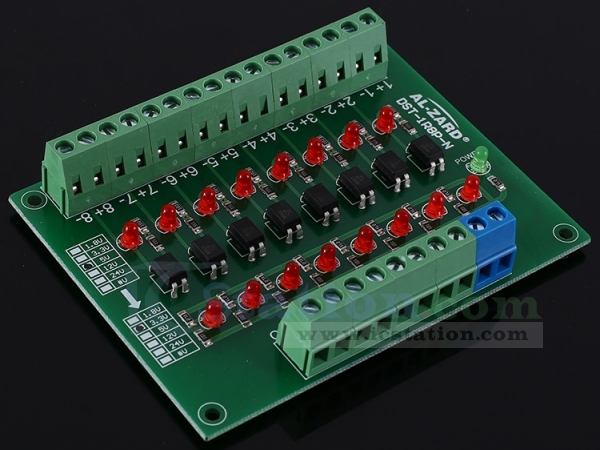

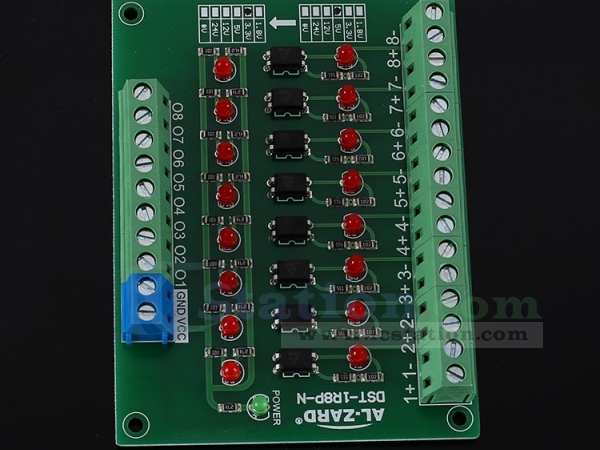

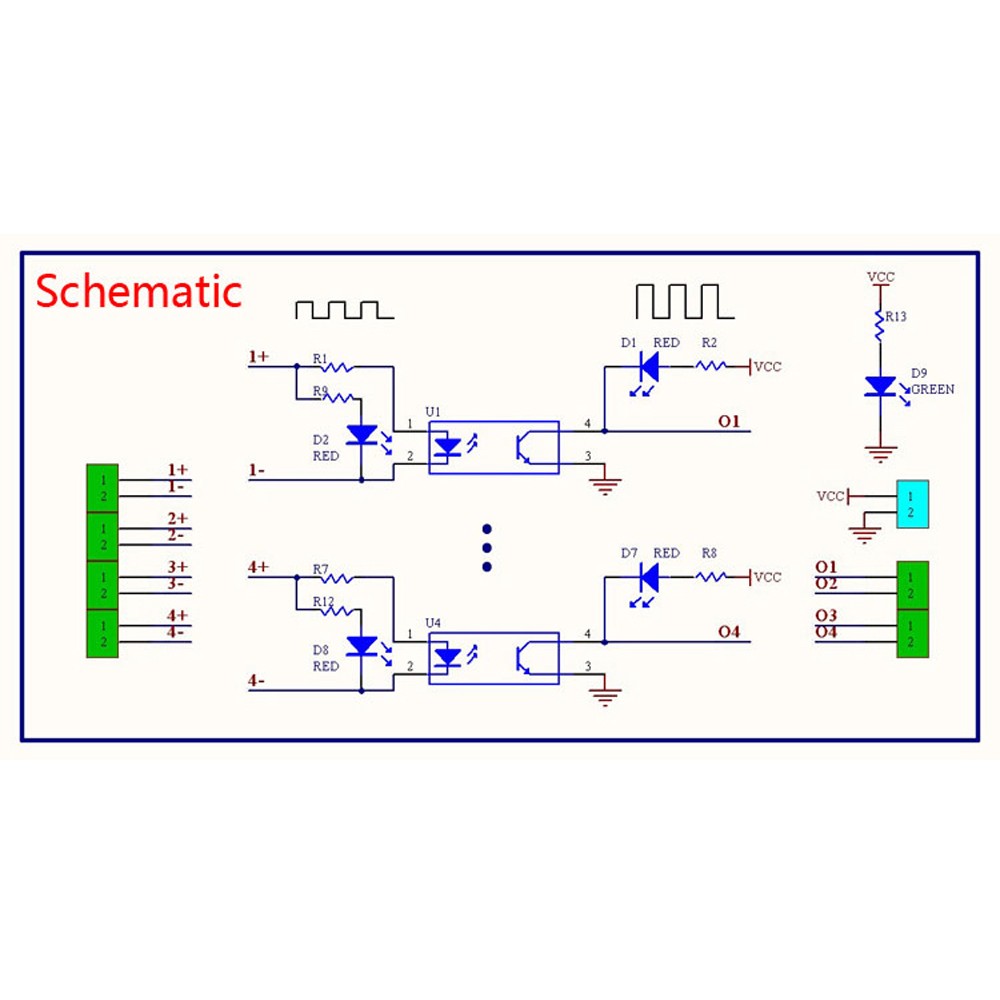

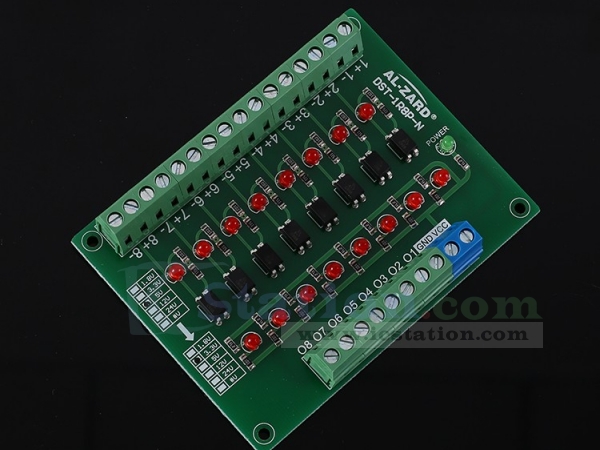

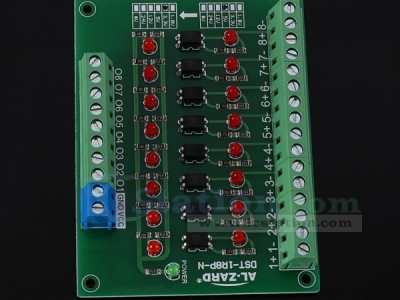

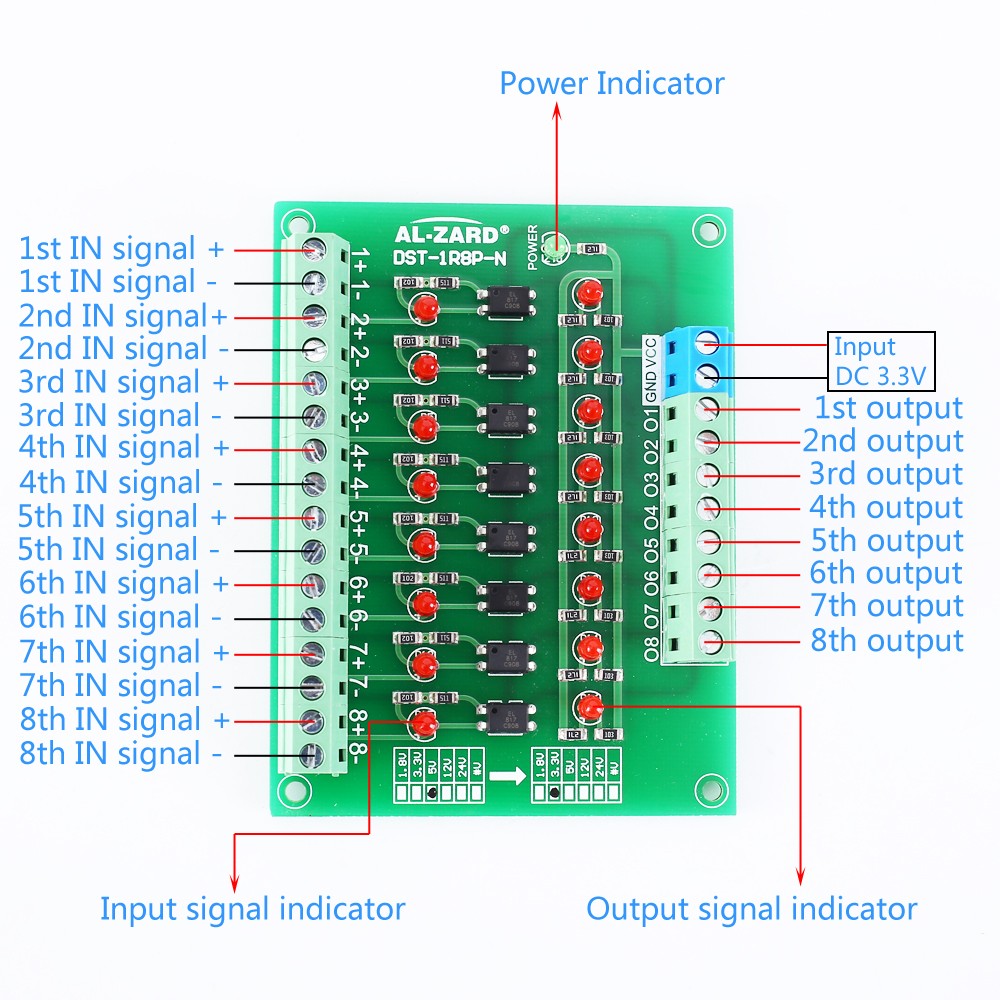

DST-1R8P-N is a 8CH optocoupler isolator for signal converter.It is used for digital signal one-way conversion and NPN output.


2.Features:
  1>.Optocoupler isolator
  2>.Conversion frequency 20KHz
  3>.2-Channel signal conversion

3.Parameters:
  1>.Model: DST-1R8P-N
  2>.Work voltage: DC 3.3V
  3>.Input signal voltage: DC 5V
  4>.Output signal voltage: DC 3.3V
  7>.Output current:about 15mA
  8>.Conversion channel:8channels
  9>.Conversion frequency:20KHz
  10>.Output type:NPN
  11>.Operating Temperature:-20℃~85℃
  12>.Operating Humidity:5%~95%RH

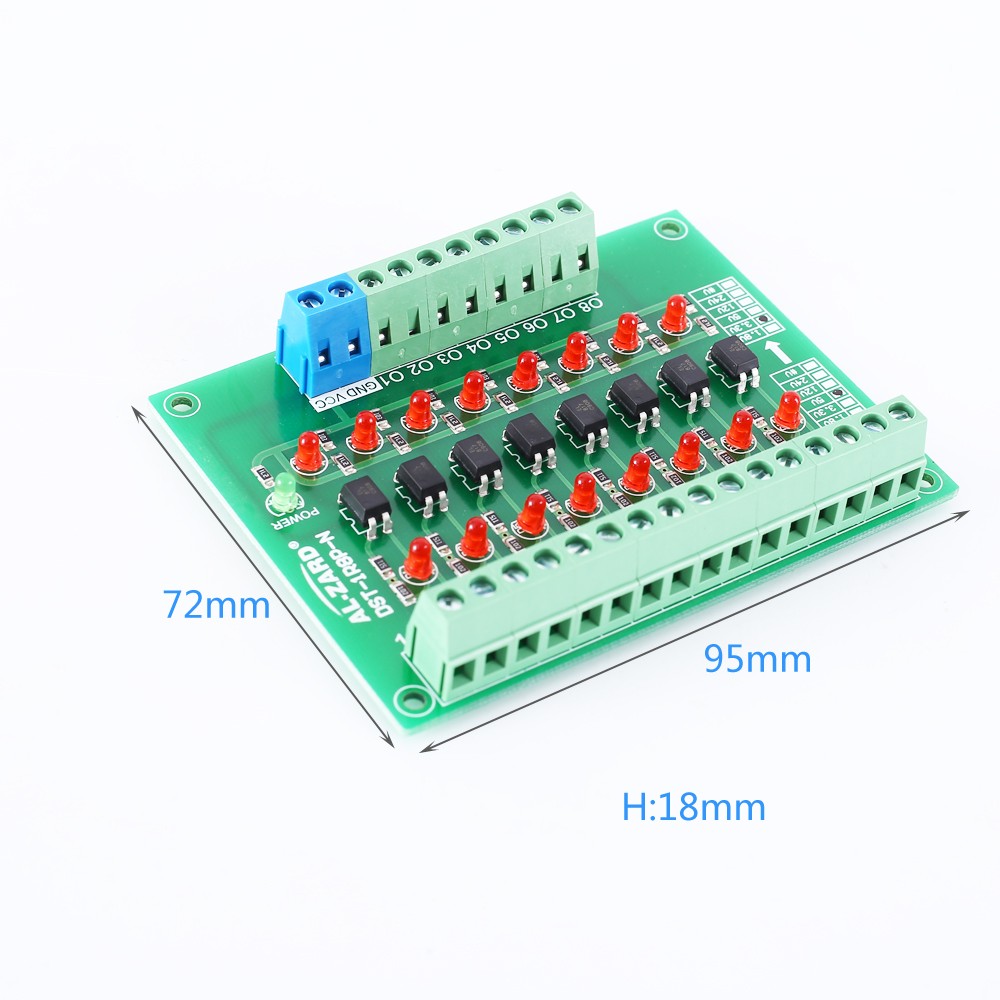

  13>.Module Size:95*72*18mm

4.Package:
  1pcs 5V to 3.3V 8-Channel Optocoupler Isolator
