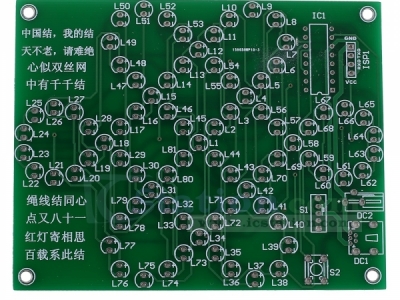

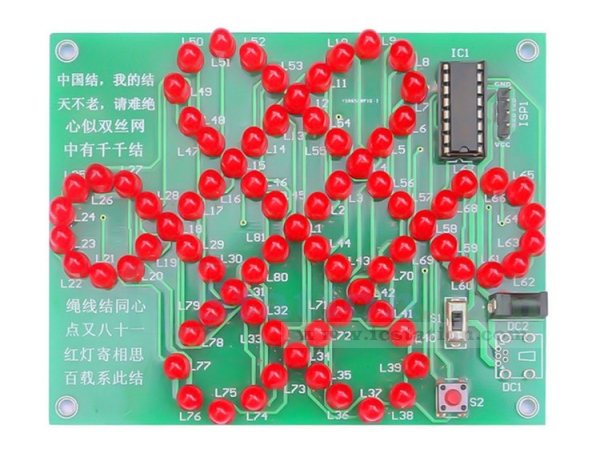

DIY Kit Red Chinese Knot Analog Electronic Circuit Suite IRC15W207S Single-chip Soldering Practice Kit

13821
5 9
$5.99 $4.61
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1. Function introduction:
  • This circuit is driven by IRC15W207S single-chip microcomputer.
  • It has wide working voltage range and can work with 4-6V DC.
  • The circuit is simple and stable, which is conducive to learning new technology.
  • There are a variety of lighting control modes in the circuit.
  • After the power is turned on, it can be played in a loop.
  • Press the button to quickly enter the display mode of the next state.
  • The circuit is extremely interesting, the circuit is simple, and the assembly success rate is high.

2. Introduction of key components:
The core circuit is IRC15W207 single-chip microcomputer. The single-chip microcomputer has its own oscillation circuit and reset circuit. The voltage range is wide to 2.4-6V. Through ingenious programming, 20 kinds of light control modes are achieved. The default configuration LED for the kit is red.
Just need to replace the LED if you need other colors or colorful effects.

3. Circuit board characteristics:

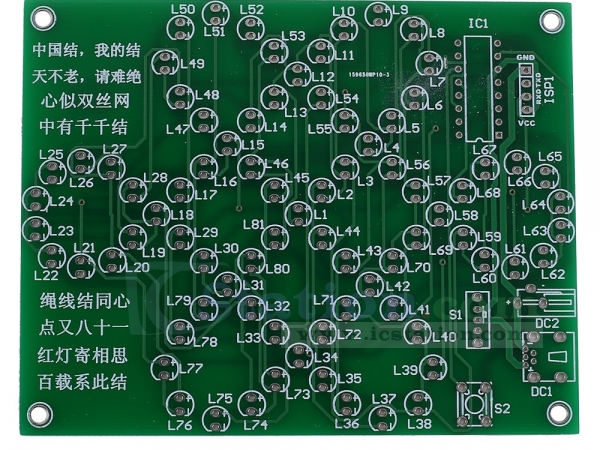

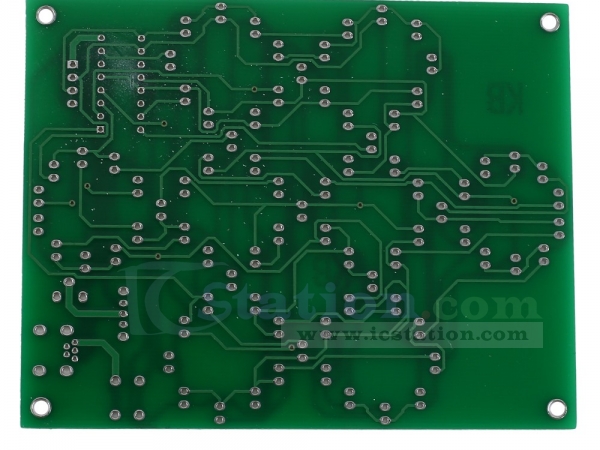

It adopts 1.6mm high-quality double-sided fiberglass board to process the whole process, the pad is enlarged, the wire is thicker, and the component layout is beautiful. It is specially designed for the training, and it is easy to withstand repeated and repeated desoldering, which can improve the use efficiency and high cost performance.

4. Special instructions:
The MCU program of this kit has been burned well. After soldering, the effect can be produced. The source program is not provided. Interested friends can program their own effects to achieve the desired effect. The circuit has a program download port reserved.

5. Parameter:
Work voltage:DC 2.4V-6V

Tested by ICStation's Good Friend Adam:

The default led color of this kit is Red. We only ship the red leds. Adam has prepared the other 2 colors leds (yellow and white) himself.
