Home > DIY Module > Funny DIY > Colorful RGB Flashing DIY LED Cube Ball Light Apple Shaped Spherical Spectrum Light DIY Kits with Remote Control for Home Decoration

Colorful RGB Flashing DIY LED Cube Ball Light Apple Shaped Spherical Spectrum Light DIY Kits with Remote Control for Home Decoration

5 9
$22.99 $17.24
Time Remaining:
- OR - Add to Wish List


No. Parameter Value
1 Name DIY LED APPLE Shape Bluetooth Music Spectrum KIT
2 Size About 80*80*120mm(with PCB)
3 Color Colorful
4 Weight About 160g
5 Nature Parts of the DIY package
6 Power supply Mini USB power supply DC4.5-5.5V 100mA
7 Power supply Portable charger, power adapter, computer USB
8 Sound source External audio input (no audio in this product)
Bluetooth transmission
MP3 decoding
9 Control model Infrared remote control control or button control
10 Material selection Full plug-in design, soldering success rate 99%
11 Basic function Bluetooth audio, animation mode, spectrum animation, MP3 playback, R/C, external audio input, Inner audio output, lossless decoding

1>. Learn Electronics.
2>. Learn MCU.
3>. Practice soldering.
4>. DIY production.
5>. Graduation design.
6>. Curriculum design.
7>. Electronic competition.
8>. Gift giving.
9>. Arts and crafts collection.
10>. Souvenir collection.
11>. Family decoration.

1>. New shape, more cool and fun.
2>. Contains a 10-minute integrated animation, at least 6 kinds of spectrum animation, all kinds of animation can be automatically loop play.
3>. Support memory card, U disk Music.
4>. Support mobile phone transmission of Bluetooth music, 15m effective distance lossless music transmission.
5>. Support audio output, input
6>. Self-3W high quality paper plate horn
7>. Self-acoustic without external
8>. Live voice broadcast, music memory playback
9>. 6 kinds of audio switch, lossless music playback
10>. Full plug-in backplane design, easy to solder

Bluetooth Module Description:
1>. Wireless precision matching 15m transmission
2>. Support memory card, u disk
3>. 320Kbps Lossless decoding MP3
4>. Support Playback Memory
5>. Live voice Broadcast
6>. Self-rated amplifier IC with 3W audio
7>. Support FM Radios
The module supports independent work, can be welded to the infrared receiver head, the following pins support the expansion of 4 buttons + control line +AUX+ Power + horn line. The detachable design is powerful. The package is finished product module.

Package Included:
1>. This package of LED are colorful color, very beautiful.
2>. Transparent LED emit spotlights, like incandescent bulbs.
3>. Standard one IR receiver, optional enhanced accessories.

This is a DIY kit parts.You need solder it by yourself.

Component Listing:

NO. Component Name PCB Marker Parameter QTY
1 Metal Film Resistor R1 100K 1
2 MINI USB Female Socket J1 5P 1
3 IC Socket U1 DIP-40 1
4 STM15F2K60S2 U1 DIP-40 1
5 Power Switch S1 Red Self-locking 1
6 Mode Button S2 Black 1
7 Electrolytic Capacitor C1 220uf 16V 1
8 Infrared Receiver IR1,IR2 VS1838V 2
9 RGB LED D1-D4 3mm 132
10 Copper Pillar   M3*15mm 4
11 Screw   M3*7mm 4
12 USB Audio Cable   About 45mm 1
13 White Cable   About 1M 1
14 Remote Control   85*40*6mm 1
15 Acrylic Welding Template   82*82mm 1
16 PCB   66*87mm 1
17 Female Pin B1 1.27mm 10P 1
18 Copper Pillar   M3*5+6mm 2
19 Screw   M3*5mm 2
20 Nut   M3 2
21 Speaker   4ohm 3W 1
22 Micro to Mini USB     1
23 Copper Wire   30mm 1
24 Plastic Green leaves     2

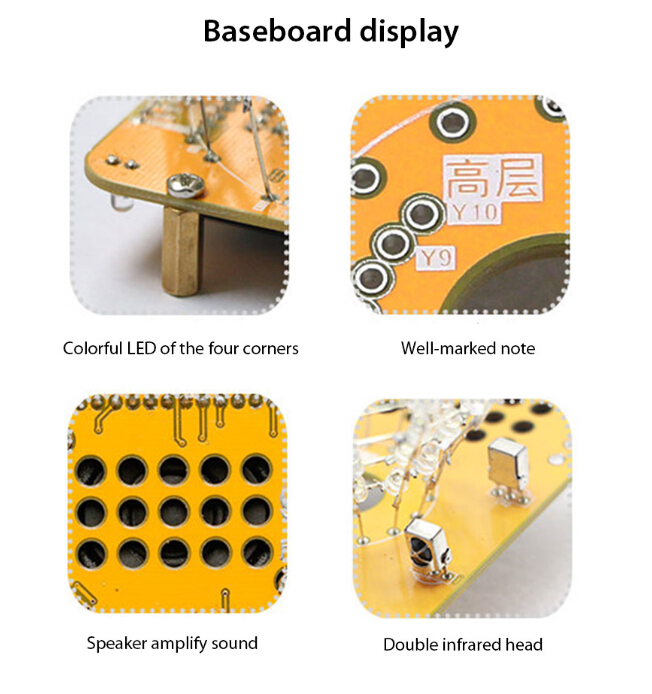

Product Details:


Finished Product Picture:
