Colorful LED Tower Display Rhythm Lamp Light
Support Wholesale!
Free Express Shipping for Orders from $200.

1. LED Tower is imitated from Guangzhou Tower. Guangzhou Tower, also known as Guangzhou new TV tower, nickname Xiaoman Yao.

2. It is the tallest building in Guangzhou, the design of the tower is very characteristic, especially in the night under the lighting decoration, very beautiful.

3. Now it becomes a landmark in Guangzhou (a city of China). We combined with the single-chip micro-chip display technology to make the beauty of the Guangzhou Tower.

4. Using STC12C5A60S2 as a control system, the display part is 16*16 dot matrix display, through the production of the Guangzhou Tower, can better enhance the microcontroller on the principle of dot matrix display.

1>.PCB size:78*78mm
2>.Tower size: 90*78*450mm (Different people installed, the height will be slightly different)
3>.Power:DC 5V
4>.Installation method: DIY soldering assembly
5>.Light Color: Colorful

1>. 16 * 16 led lattice design
2>.A variety of modes can be freely converted:

  ----Offline animation mode(More than a dozen)
  ----Music spectrum mode(Flash with music)

3>.Plug-in components used to make high success rate
4>.With some code (The default code inside the chip, the function is more abundant, so please do not update the code inside arbitrarily)
5>.USB power audio line

1>.Home Furnishing decoration
2>.Store decoration
3>.Graduation design
4>.Practice for electronic enthusiasts
5>.Holiday gifts


Component Listing:

NO. Component Name PCB Marker Parameter QTY Remarks
1 STC12C5A60S2   DIP-40 1
2 IC Socket U7 DIP-40 1
3 Metal film resistor R1-R4,R6-R21 300ohm 20
4 Metal film resistor R5 100K 1
5 Metal film resistor R22 10K 1
6 Ceramic capacitors C1,C2,C5 30P 3
7 5mm LED D1-D4 Colorful 4
8 Crystal Y1 11.0592MHz 1
9 Mini USB P1   1
10 Round Pin J1-J16 16P 1
11 Infrared sensor JS VS1838B 1
12 Self-locking switch S   1
13 Button S1   1
14 Male Pin X 4P 1
15 3mm LED   Colorful 271
16 USB/Audio Cable   45mm 1
17 Copper pillars   M3*10 4
18 Screw   M3*6 4
19 USB-TTL Downloader     1
20 Dupont line   20mm 5
21 Remote control     1 Include CR2025 battery
24 Cable   4.2m 1
25 PCB   78*78 1
26 Acrylic welding template   90*90mm 1

Component Description:

1>.1pcs STC12C5A60S2 DIP-40
2>.1pcs IC Socket DIP-40
3>.20pcs 300ohm Metal film resistor
4>.1pcs 100K Metal film resistor
5>.1pcs 10K Metal film resistor
6>.3pcs 30P Ceramic capacitors
7>.4pcs Colorful 5mm LED
8>.1pcs 11.0592MHz Crystal
9>.1pcs Mini USB
10>.1pcs 16P Round Pin
11>.1pcs VS1838B Infrared sensor
12>.1pcs Self-locking switch
13>.1pcs Button
14>.1pcs 4P Male Pin
15>.271pcs Colorful 3mm LED
16>.1pcs USB/Audio Cable
17>.4pcs M3*10 Copper pillars
18>.4pcs M3*6 Screw
19>.1pcs USB-TTL Downloader
20>.5pcs 20mm DuPont line
21>.1pcs Remote control
24>.1pcs 4.2m Cable
25>.1pcs PCB
26>.1pcs Acrylic welding template

Remote Description:

LED Processing Methods:

Here the Installation Manual:

(Please use the latest version of the installation manual, Version Number: V20171221)

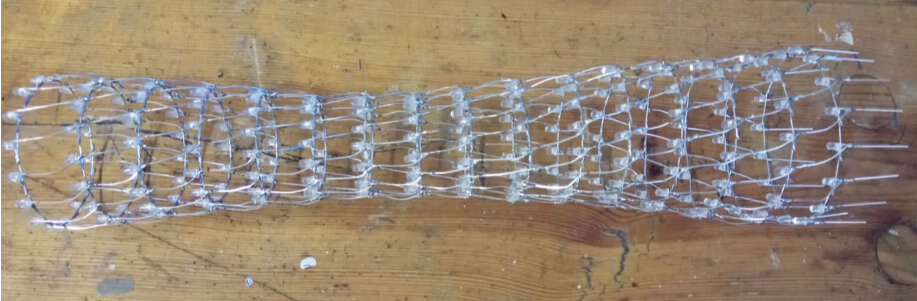

Finished Product Picture: (picture for your reference)

Tested by ICStation's Outstanding Partner SinKi:

Learn More Details in the Video:
