2.4G EMW3080 Intelligent IOT Wireless Wifi Module Serial Port Module ARM M4 Kernel DC 3.0-3.6V 100m

12303
5 9
$4.99 $3.74
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Size: 18*33mm
2.Operating Frequency Band: 2.412-2.484GHz
3.Operating Voltage: DC 3.0-3.6V
4.Communication Level: DC 3.6V (max)
5.Data Transmission Rate: 11-72.2Mbps
6.Distance: 100m (in sunny days, open area, antenna gain 5dBi, height is more than 2m)
7.PCB Craft: 4 layer (impedance debugging)
8.Transmit Power: 14.3-18dBm (13 transmitting channels)
9.AT Support: built-in intelligent process (read via AT command)
10.Wifi Version: 802.11 b/g/n
11.Communication Interface: UART serial port/ second development support, I2C, SPI, SWD, PWM
12.Antenna Form: PCB onboard antenna (50 ohm impedance)
13.Operating Temperature: -30~85 Celsius
14.Operating Humidity: 10%-80%
15.Storage Temperature: -20~85 Celsius

Features:

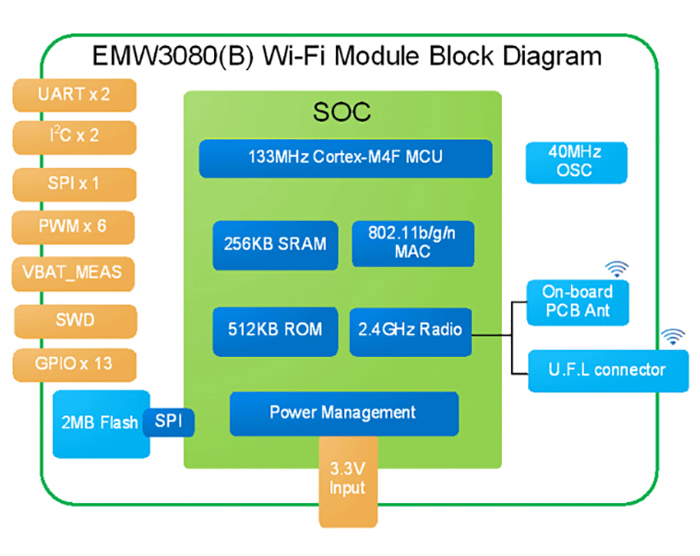

1.Integrated ARM-Cortex-M4F, WLAN MAC/BB/RF
  Kernel: Cortex-M4F
  Main Frequency: 133MHz
  RAM: 256KB
  FLASH: 2MB (QS01 100MHZ, support XIPCACHE operating and deciphering)

2.WIFI Characteristics:
  Standard: support 802.11b/g/n standard
  Mode: support Station, SoftAP mode
  Network Access Way: support EasyLink

3.Wide Operating Voltage: 3.0-3.6V

4.Main Interface: UART

5.Operating Temperature: -30~85 Celsius

AT unvarnished transmission firmware

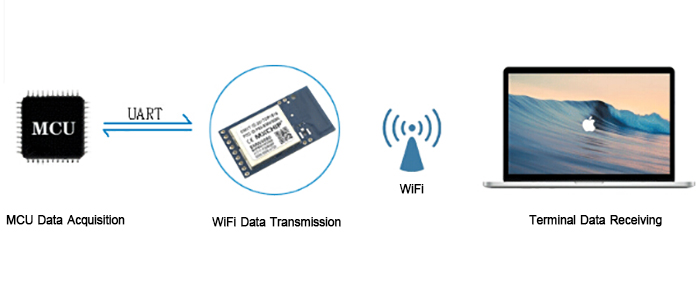

Serial Data Unvarnished Transmission

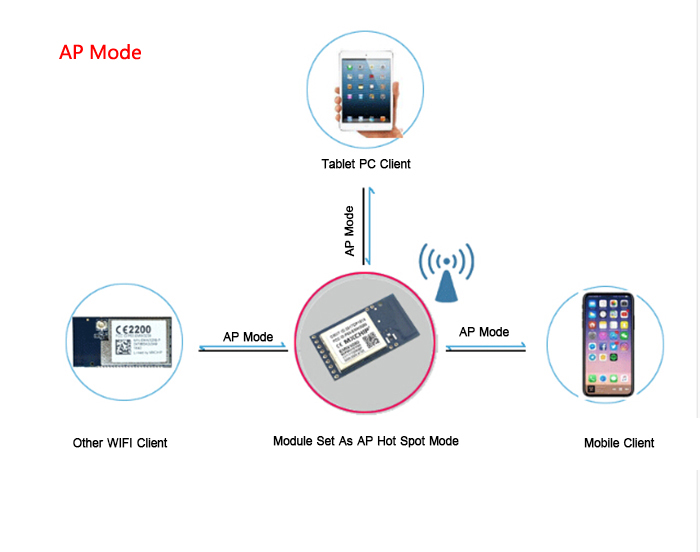

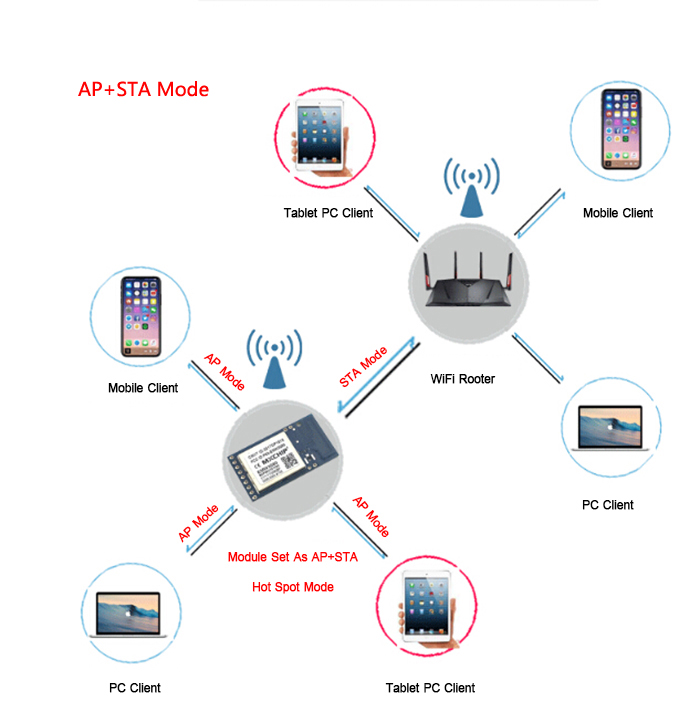

Different Mode!

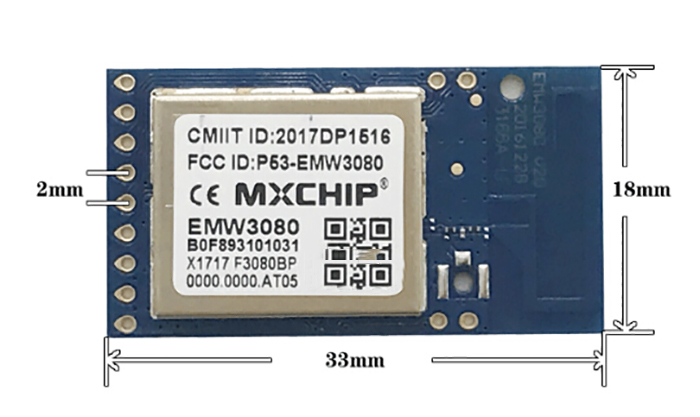

Size Picture:
