ESP8285 ESP-01M WIFI IOT Wireless Transceiver UART to WIFI Module for Smart Home

12591
5 9
$3.75 $2.81
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$5.21-6%Bundled Price:$4.89

Description:
This module is designed for small volume, customized products. It has built-in 1MByte Flash. Double sided gold finger design, suitable for smart socket, smart lamp and other simple control class, small volume requirements of the product.

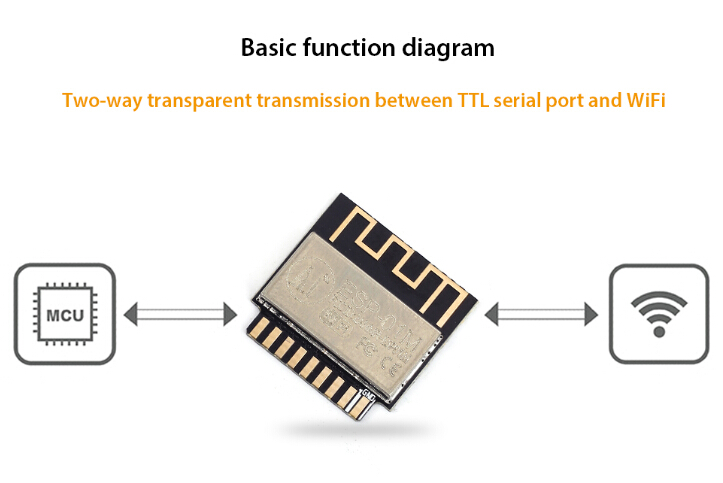

Ultra low power, ultra small size, bidirectional transparent transmission, deep sleep, multiple serial speed selection, WEP, WPA/WPA2 security mode.

Features:
1>. ESP-01M built in ESP8285 chip. The chip has a fully self-contained WiFi network function that can be used as standalone applications. It can also be used as a slave to run on other host MCU.
2>. The main frequency is up to 160MHz
3>. Supports URAT/GPIO/IIC/PWM/ADC and other interfaces
4>. Integrated WiFi MAC/BB/RF/PA/LNA
5>. Support multiple sleep modes, standby power consumption as low as 1..0mW
6>. Embedded Lwip protocol stack
7>. Support STA/AP/STA+AP working mode
8>. Support Smart Config/Airkiss one button network allocation
9>. The serial port rate is up to 4Mbps
10>. General AT instructions can run quickly. Brush Web configuration firmware
11>. Supports serial local upgrade and remote firmware upgrade (FOTA)

Parameters:

Parameter Value
Module type ESP-01M
Encapsulation DIP-18
Size 18*18*2..8 (+-0..2) mm
SPI Flash Built in 1MB
Support interface UART//GPIO//ADC//PWM
IO port 11
Series Rate Support 300-4608000bps, default 115200bps
Spectrum range 2412--2484MHz
Antenna form Support
Two development PCB antenna, gain 2dBi
Transmitting power 802.11b: 16+-2dBm (@11Mbps)
802.11g: 16+-2dBm (@54Mbps)
802.11n: 16+-2dBm (@HT20, MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54Mbps (3/4 64--QAM): -70dBm
HT20, MCS7 (65 Mbps, 72.2Mbps): -67dBm
Power waste Continuous sending = average value: ~71mA, peak value: 300mA
Modem Sleep:~20mA
Light Sleep:~2 mA
Deep Sleep:~0.02mA
Security WEP//WPA-PSK//WPA2--PSK
Power supply range Power supply voltage 3..0V~3.6V, power supply current "300mA"
Working temperature - 20 degrees Celsius ~85 degrees Celsius
Storage environment - 40 degrees Celsius ~90 degrees Celsius, 90%RH
Weight 0.40g


Application:
1>. Intelligent socket
2>. Intelligent temperature sensor
3>. Intelligent lamp
4>. Intelligent Gateway
5>. Instruments and Apparatuses

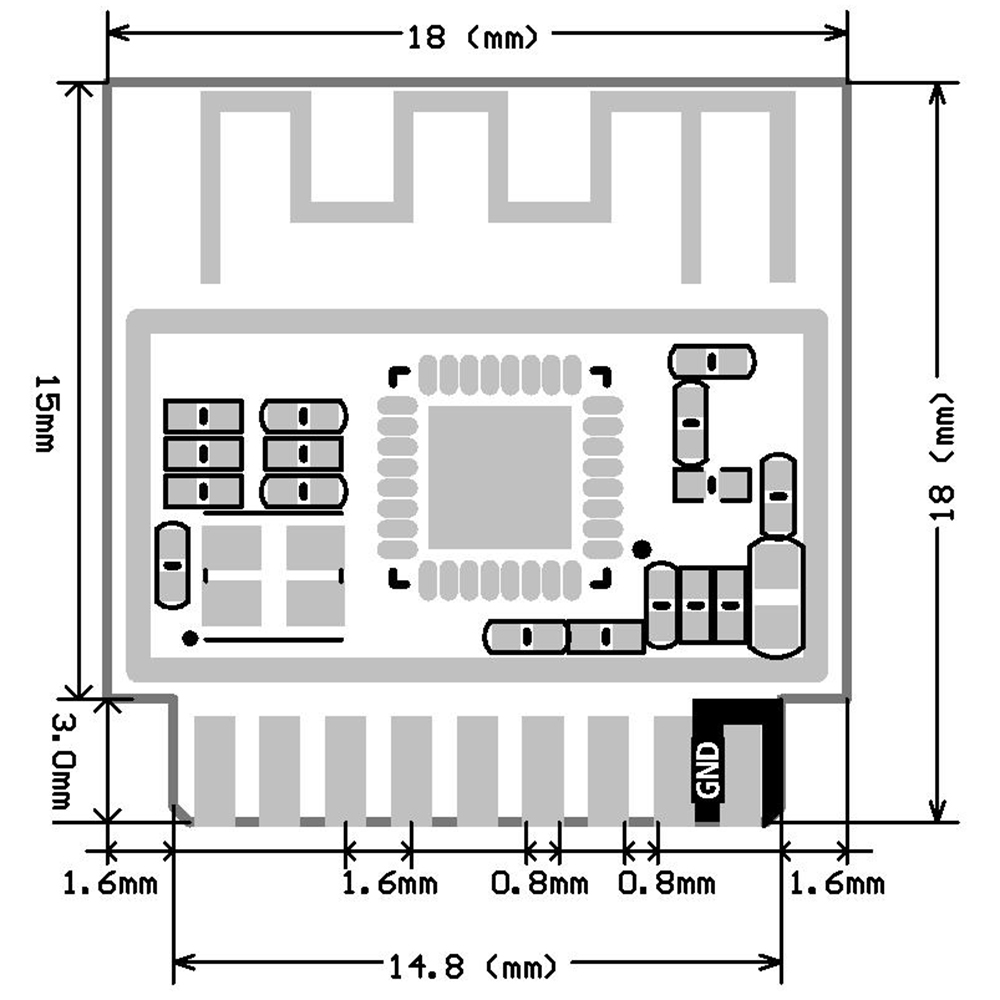

Board Size:
