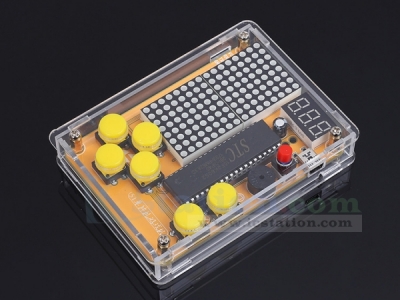

DIY Kit Game Toy Creative Electronics Experiment Kit MCU Computer Game Machine with Protective Shell for Snake/Plane/Racing

5 9
$15.99 $11.19
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$15.88-7%Bundled Price:$14.77


No. Parameter Value
1 Product name MCU computer game machine
2 Model CZL--YXJ01
3 Voltage and current 5V-100mA
4 Power supply interface Portable charger, power adapter, computer USB, battery box power supply
5 Control mode Large size button control
6 PCB material Golden military grade FR4
7 Shell size 100mm*80mm(with shell)
8 Key cap With

    1>. With the dot matrix of 16*8.
    2>. All copper mini USB, 3 bit mini digital tube.
    3>. Golden PCB looks more exquisite.
    4>. STC12C5A60S2 high speed and high speed.
    5>. Humanized keypad arrangement.
    6>. 12mm big button, better feel.
    7>. Corner treatment is better.

Components List:

No. Name Specs. Packaging Tag No. Qty Remark
1 Buzzer 12mm5V passive BEEP-12MM B1 1 In no particular direction
2 Electrolytic Capacitor 16V_220UF RB_01_6.3X5 C2 1 Long pin is positive
3 Micro USB USB_2PIN USB-micro J1 1 solder in accordance with the silk-screen
4 White Switch SWITCH_2X2 KTF_8MM0 S1 1 solder in accordance with the silk-screen
5 Touch Switch 12x12 12x12 S2,S3,S4,S5,S6,S7,S8 6 solder in accordance with the silk-screen
6 Lattice 3x8 0.26 L1,L2 2 solder in accordance with the silk-screen
7 Nixie Tube 8x8 30mm SEG1 1 solder in accordance with the silk-screen
8 Copper Cylinder M3*12+6 single pass     4 Fittings
9 Bolt M3x5     4 Fittings
10 Power line Micro USB line     1 Fittings
11 PCB CZL-YXJ01     1 Main part
12 IC Base 40p DIP-40-W or PLCC-44   1 solder in accordance with the silk-screen
13 SCM STC15F2K60S2   U1   Insert it into IC Base
Due to the shortage of chips, the DIP-40 chips have been replaced with PLCC-44 chips, which is the same model but with different packaging methods. Hope for your understanding.

Soldering Steps:
Firstly, solder the parts at the lower point, as is shown, there is no positive or negative difference, just install them in accordance with the symbols.

1>.Solder the IC base. Be sure to align the direction, two pins at the diagonal positions must be fixed first, then adjust the IC base using the soldering iron, solder the buzzer afterwards, there is no positive and negative difference of the passive buzzer.

2>.Solder the lattice module. There is a small block under the silk-screen on the PCB as well as a bump at the lattice edge, correspond the block with the bump.
Warning: Don’t install the lattice wrong, it is hard to uninstall the lattice if it’s installed wrong, aim at the direction as is shown in the picture.

3>.Solder the switches. There is a small box on the silk-screen as well as at the bottom of the switch, box to box soldering is enough.

4>.Pay attention to the positive and negative when soldering the capacitor, the long pin is positive while the short pin is negative.

5>.All others electronic components are easy to solder, solder in accordance with the silk-screen.

Warm Tips:
1>. Check if the materials are complete by contrast to the electronic components list, some small components are easy to lose, so attention must be paid;
2>. Carefully read the user’s manual;
3>. Solder the baseboard and test to see if it is normal.


1>. After the boot, the left and right buttons switch games, as follow
    Retro Snaker
    Hit a plane
    Luminance regulation (upper down-regulation)
    Music switch (firing button switch)

2>. Switch to the game interface, open the firing button into the game
    Part of the game can be accelerated (firing button)
    Tetris and snake support game suspension (menu button)
    After death, the menu button exit

Product Details:

1. Tested by ICStation:

Learn More Details in the Video:

2. Tested by ICStation's Outstanding Partner CarlosVolt Tutoriales:


Learn More Details in the Video:
(The language in the video is Spanish)


3. Tested by ICStation's Outstanding Partner Vertijog:

Learn More Details in the Video:
(The language in the video is Music)


4. Tested by ICStation's Outstanding Partner Csongor Varga:

Learn More Details in the Video:
(The language in the video is English)


5. Tested by ICStation's Outstanding Partner todderbert:
