DC-DC High Power Step Up Module Boost Converter DC 3.0-35V to DC 3.5-35V 100W Power Supply Module

13231
5 9
$7.99 $5.59
Time Remaining:
- OR - Add to Wish List

Description:
Automatic boost module provide a stable power supply.Applicable to unstable voltage source or voltage conversion.

Features:
1>. Small size.
2>. Simple wiring.
3>. Targeted.
4>. Custom installation.
5>. High power 100W.
6>. Switch display output and input voltage.
7>. Adjustable output voltage.
8>. Real-time display voltage.
9>. Comes with excellent heat sink
10>. Fixed mounting hole.
11>. High quality terminal block

Parameters:

No. Parameter Value
1 Input voltage DC3 ~ 35V(Display will be abnormal if input less than 4V)
2 Input current 9A(Max.)
3 Output voltage DC3.5-35V(It is a boost module,So output voltage is higher than input voltage)
4 Output current 6A (Max.)
5 Output power 75W
6 Conversion efficiency 96.7% (Max.)
7 Output ripple 24mV(TYP)
8 Measuring range of onboard voltmeter 4~40V,
9 Error +/ -0.1V.
10 Short circuit protection Yes (limit current 14A).
11 Input reverse protection No (One diode can be connected in series by yourself if need protection)
12 Size 67*43*12MM


Use Manual:
1>. Connect load at OUT+ and OUT- at first.Please note the positive and negative.
2>. Connect power supply at IN+ and IN-.Please note the positive and negative.

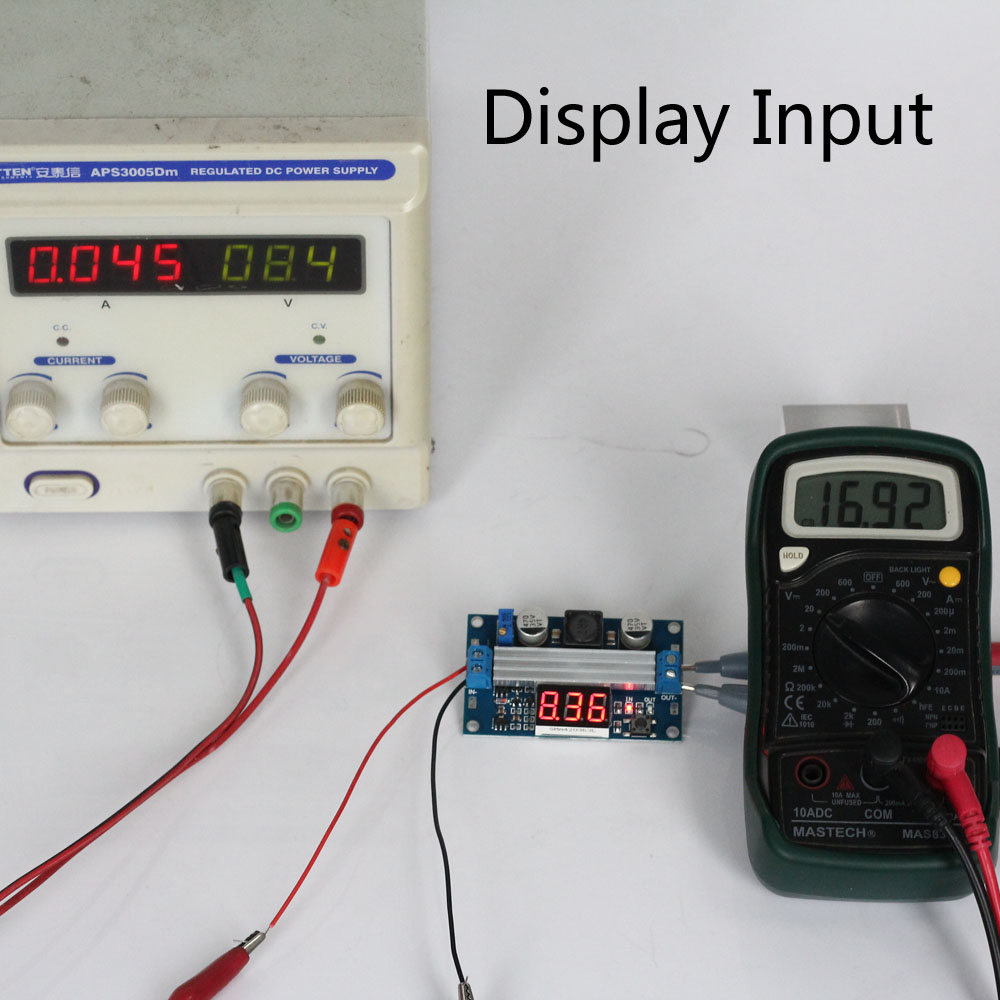

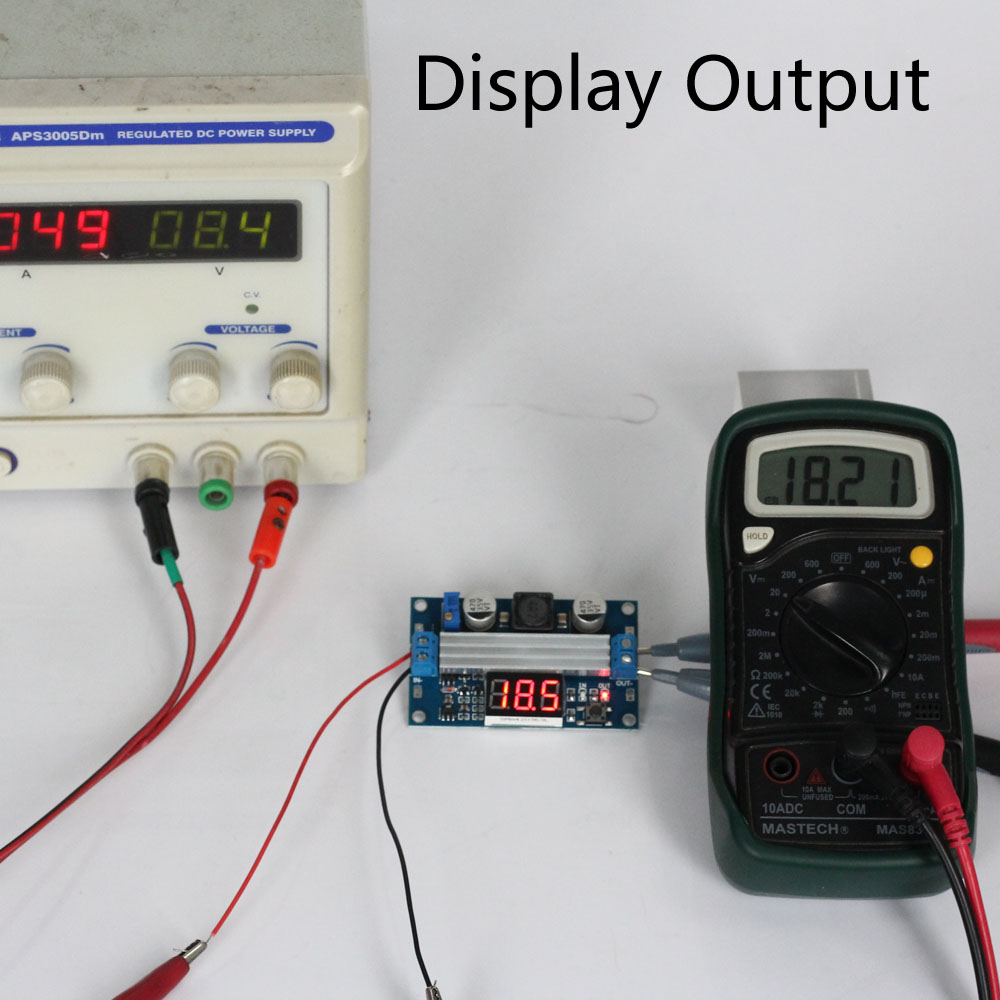

3>. Press the button to switch the display input or output voltage value.

Warm Tips:
When the high power load is connected, because the shock current of the start-up is very limited, it is recommended to start up and then connect the load.

Application:
1>. Ordinary power supply
2>. Battery charger
3>. LED drive power
4>. Instrument voltage display
5>. Test meter
6>. Circuit test

Frequency asked questions:
1>. Can it output 35V at 6A?
Q : No,it can not.The output max is 100W.Only 75W for stable operation.
2>. Can it meet : input 12V and output 5V?
Q : No,it can not.It is step up module. The output must higher input

Illustration:
