ICStation Electronic Clock DIY Kit Digital Tube

5486
5 1
$11.98 $9.58
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$19.69-6%Bundled Price:$18.51

This DIY kit is a kind of expansion suite which is designed for arduino learners.It can help us promote our electronic skills, for example, soldering skills, programming skills, besides, we can also learn more knowledge about the expansion board.

1.Function
1).Display Time
2).Timing alarm clock
3).Display the data of the light sensor
4).Display the temperature data

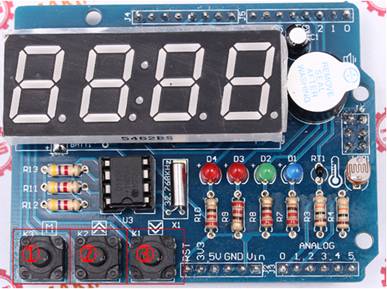

2.Using instruction



“①” menu:Press it to change the working modes(Time, Alarm, normal state)
“②”   Up: Press it to increase the value of the hours, display the data of the light sensor
“③” Down: Press it to increase the value of the minutes, display the environment temperature data.

3.Download the code
①Download the program library
We have not finish the download link of this library at present, if you need it, pls feel free to contact our sales
②Imported the library into the arduino
After you download the file, extract it into any directory, then load on it as a library to the Arduino
③Download the code for the Arduino
You can find the program for the clock as the following route
File→sketchbook→clock
Then click “upload” to download the code for your arduino

4.Electrical parameters
Control board: Arduino UNO
PCB size: 53*68mm
LED color: Blue

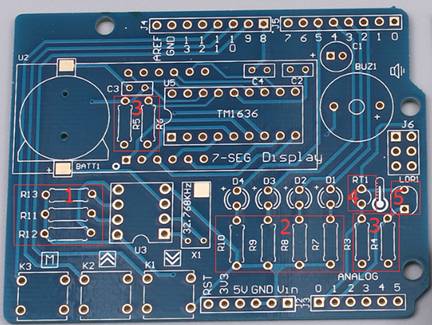

5.Welding specification

“1” Solder 4.7K resistor
“2” Solder 220Ω resistor
“3” Solder 10K resistor
“4” Solder temperature sensor
“5” Solder photosensitive sensor
“C3”, “C4” Solder 1NF(102) Ceramics capacitors
“C2” Solder 100nf(104)Ceramics capacitors

6.Mechanical drawing



7.Components list

Components

Label

Capsulation

Value

Quantity

Resistor



DIP

10K

6

Resistor



DIP

220

6

Resistor



DIP

4.7K

5

F3 Blue LED



DIP



1

F3 Green LED



DIP



1

F3 Red LED



DIP



2

crystal oscillator(3x8mm)



DIP

32.768K

1

thermistor(MF52-103)



DIP



1

photoresistance(5506)



DIP



1

Ceramics capacitors



DIP

1nf

2

Ceramics capacitors



DIP

100nf

1

electrolytic capacitor



DIP

16V/100uf

1

DS1307



DIP-8



1

TM1636



DIP-18



1

8P IC socket



DIP-4



1

18P IC socket



DIP



1

CR1220 battery holder







1

CR1220 button cell







1

tuch-button(8x8mm)







3

5V Active buzzer







1

6P Female Header







2

6P rounded corner pin board







2

8P pin board







2

HS410561K digital tube







1
