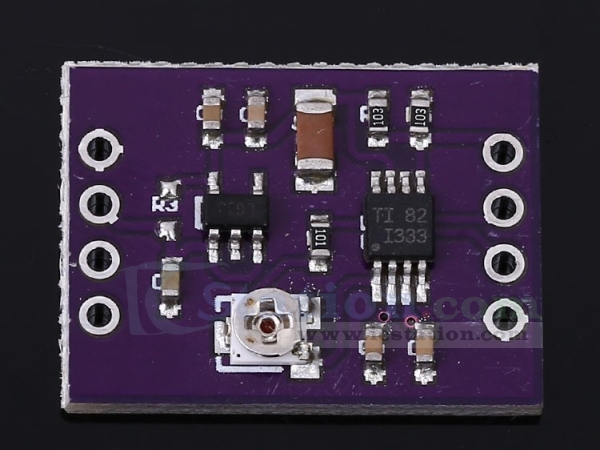

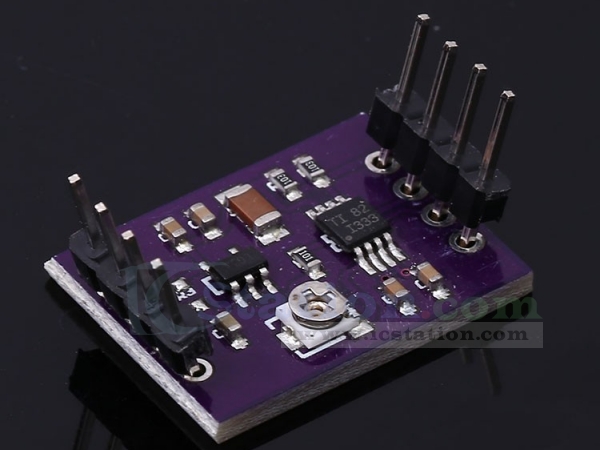

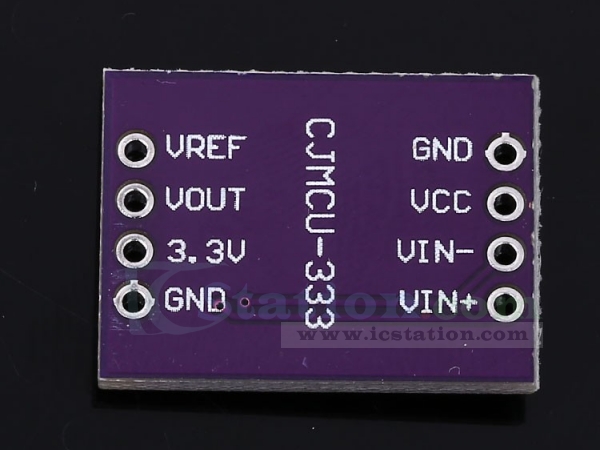

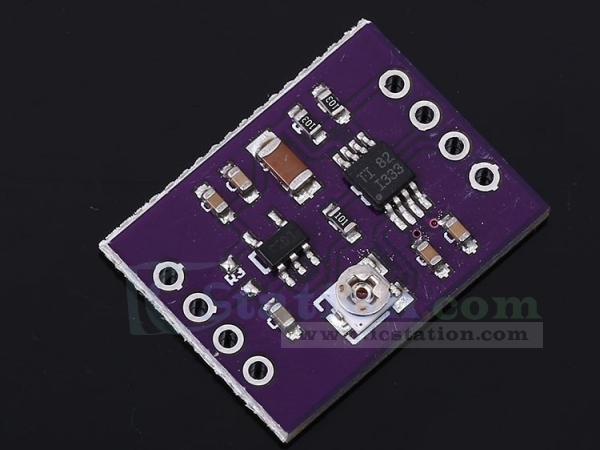

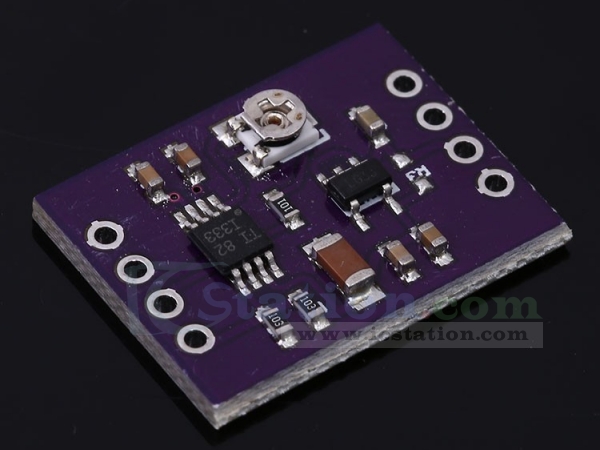

INA333 Three-Operational-Amplifier Module Multifunction Low Power Precision Instrumentation

13525
5 9
$10.99 $7.69 (only 0 pcs )
Quantity20+100+
Price$7.00$6.30
Contact us for wholesale price
Time Remaining:

Sold out


Description:
    The INA333 device is a low-power, precision instrumentation amplifier offering excellent accuracy. The versatile 3-operational amplifier design, small size, and low power make it ideal for a wide range of portable applications.
    A single external resistor sets any gain from 1 to 1000. The INA333 is designed to use an industry-standard gain equation: G=1+(100kohm/RG).

    The INA333 device provides very low offset voltage (25uV, G>=100), excellent offset voltage drift (0.1uV/℃, G>=100), and high common-mode rejection (100dB at G>=10). It operates with power supplies as low as 1.8V(+/-0.9V) and quiescent current is only 50uA, making it ideal for battery-operated systems. Using autocalibration techniques to ensure excellent precision over the extended industrial temperature range, the INA333 device also offers exceptionally low noise density (50nV/√Hz) that extends down to DC.

    The INA333 device is available in both 8-pin VSSOP and WSON surface-mount packages and is specified over the TA =-40℃ to +125℃ temperature range

Parameter:
1>.Work Voltage:DC 3.3V
2>.Protocol:None
3>.Work Temperature:-40℃~125℃
4>.Work Humidity:0%~95%RH
5>.Size:21*16*3.3mm

Features:
1>.Low Offset Voltage: 25uV (Maximum), G>=100
2>.Low Drift: 0.1uV/℃, G>=100
3>.Low Noise: 50nV/√Hz, G>=100
4>.High CMRR: 100dB(Minimum),G>=10
5>.Low Input Bias Current: 200pA(Maximum)
6>.Supply Range: 1.8V to 5.5V
7>.Input Voltage: (V-) +0.1 V to (V+) -0.1V
8>.Output Range: (V-) +0.05 V to (V+) -0.05V
9>.Low Quiescent Current:50uA
10>.Operating Temperature:–40℃ to +125℃
11>.RFI Filtered Inputs

Package:

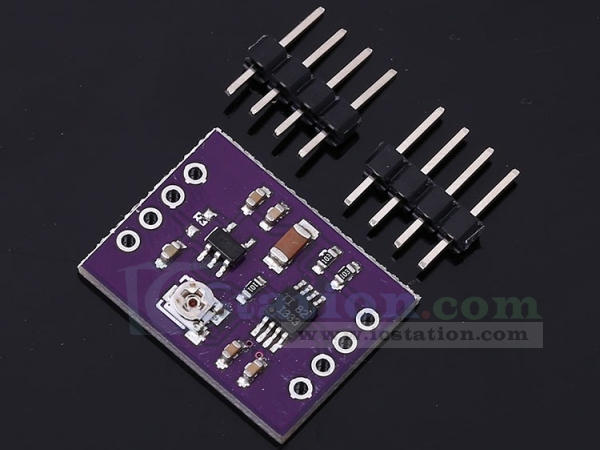

1pcs INA333 Three-Operational-Amplifier Module
2pcs 4Pin 2.54mm male pin
Quantity20+100+
Price$7.00$6.30
