DIY Kits Sound Control Level Indicator Lamp Module Suite LED Light 3-5.5V 3x2.3cm Electronic Circuit Training Parts dgf-01

5 1
$2.25 $1.58 (only 11 pcs )
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$3.98-6%Bundled Price:$3.74

Product Introduction:

1.Operating Voltage: 3-5.5V

2.Appearance Size: 3cm*2.3cm

3.Operating Principle: It is composed of power supply circuit,microphone amplification circuit and LED flash circuit.Power is input by J1,MIC1 turns voice signal into electricity signal,and then amplified by C2 coupling;amplified signal sent to Q2 base,Q2 will drive 5pcs LEDs and let them on;the brightness of LED lamp will become stronger if the voice is louder

4.Packing List:





4.7K ohm



10K ohm



1M ohm






F5 Red








Power Wire

XH2 54

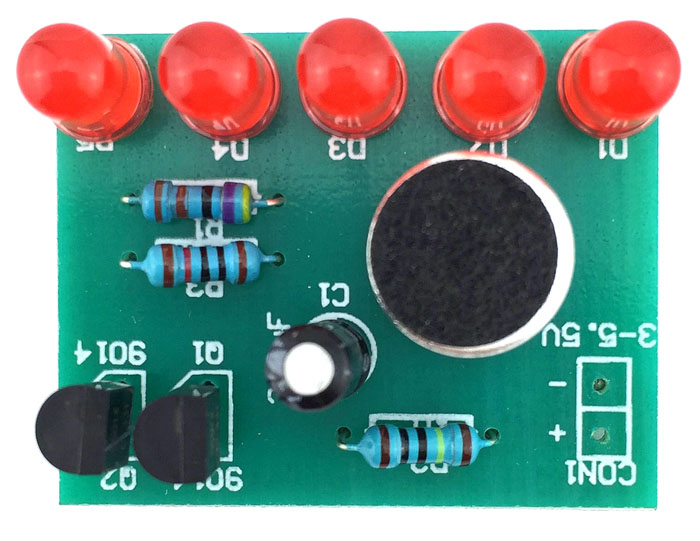

5.Finished Product Picture:

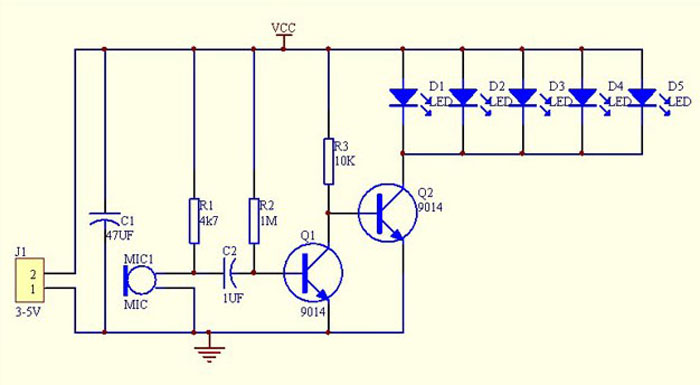

6.Circuit Picture:

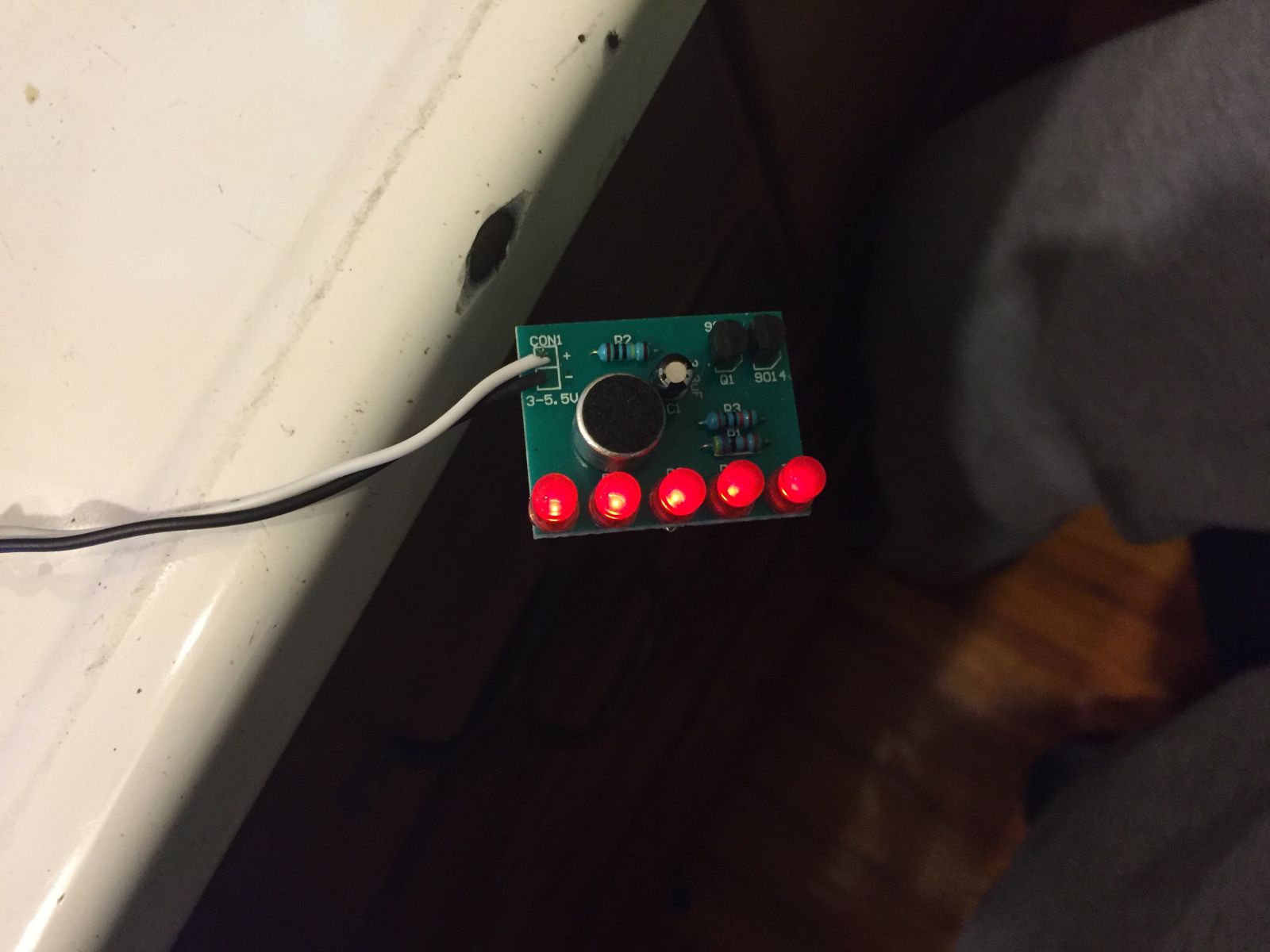

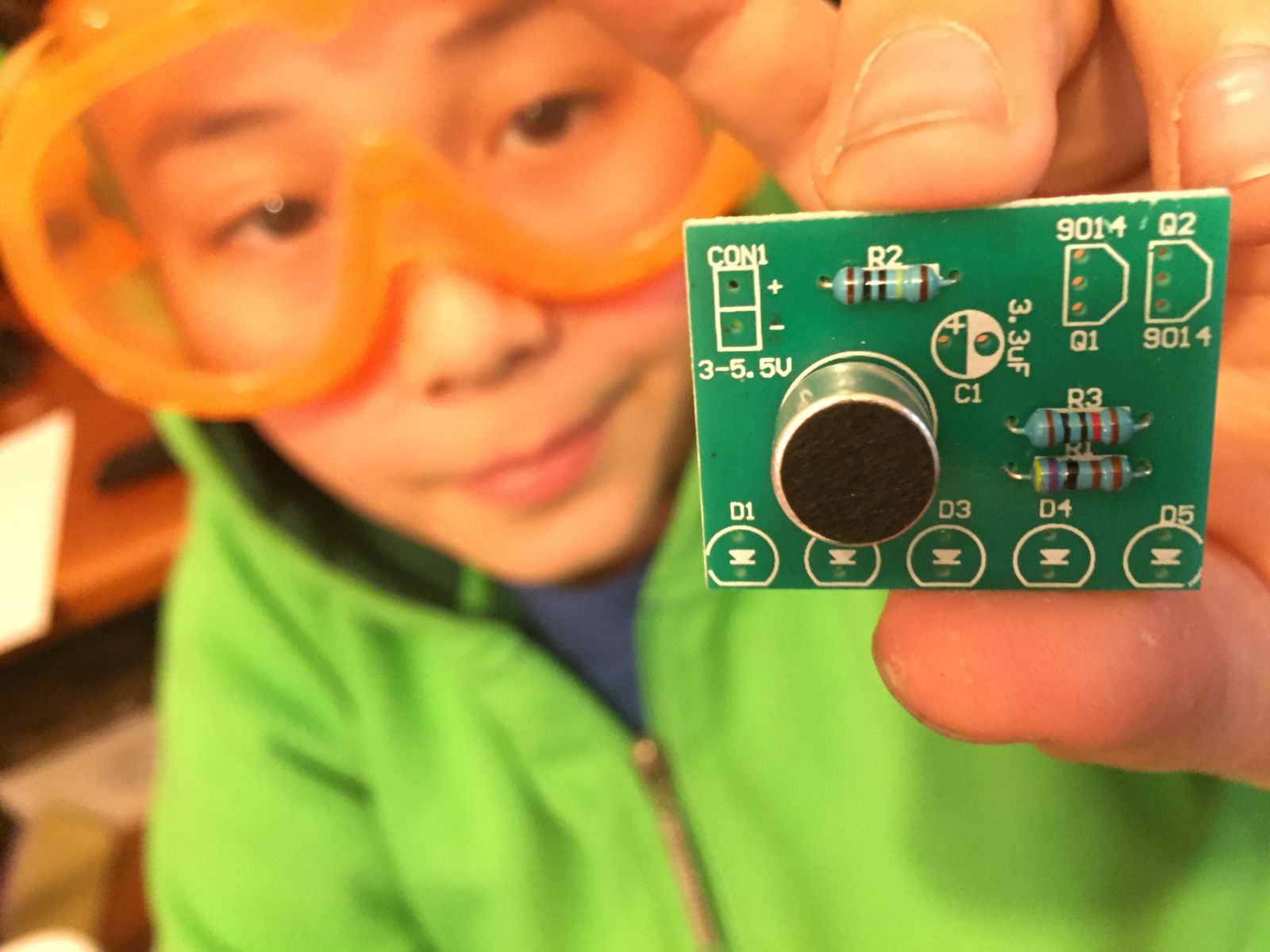

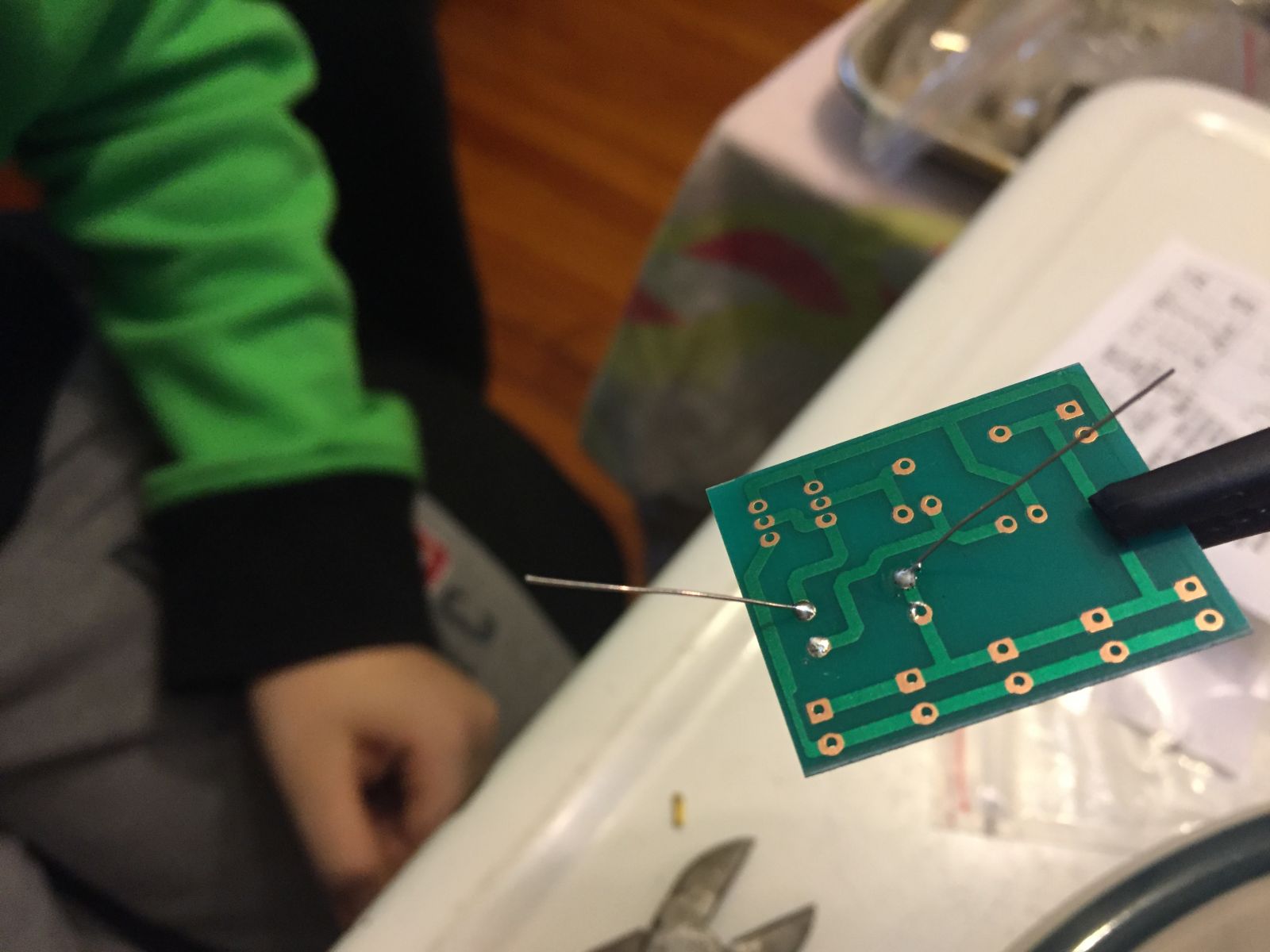

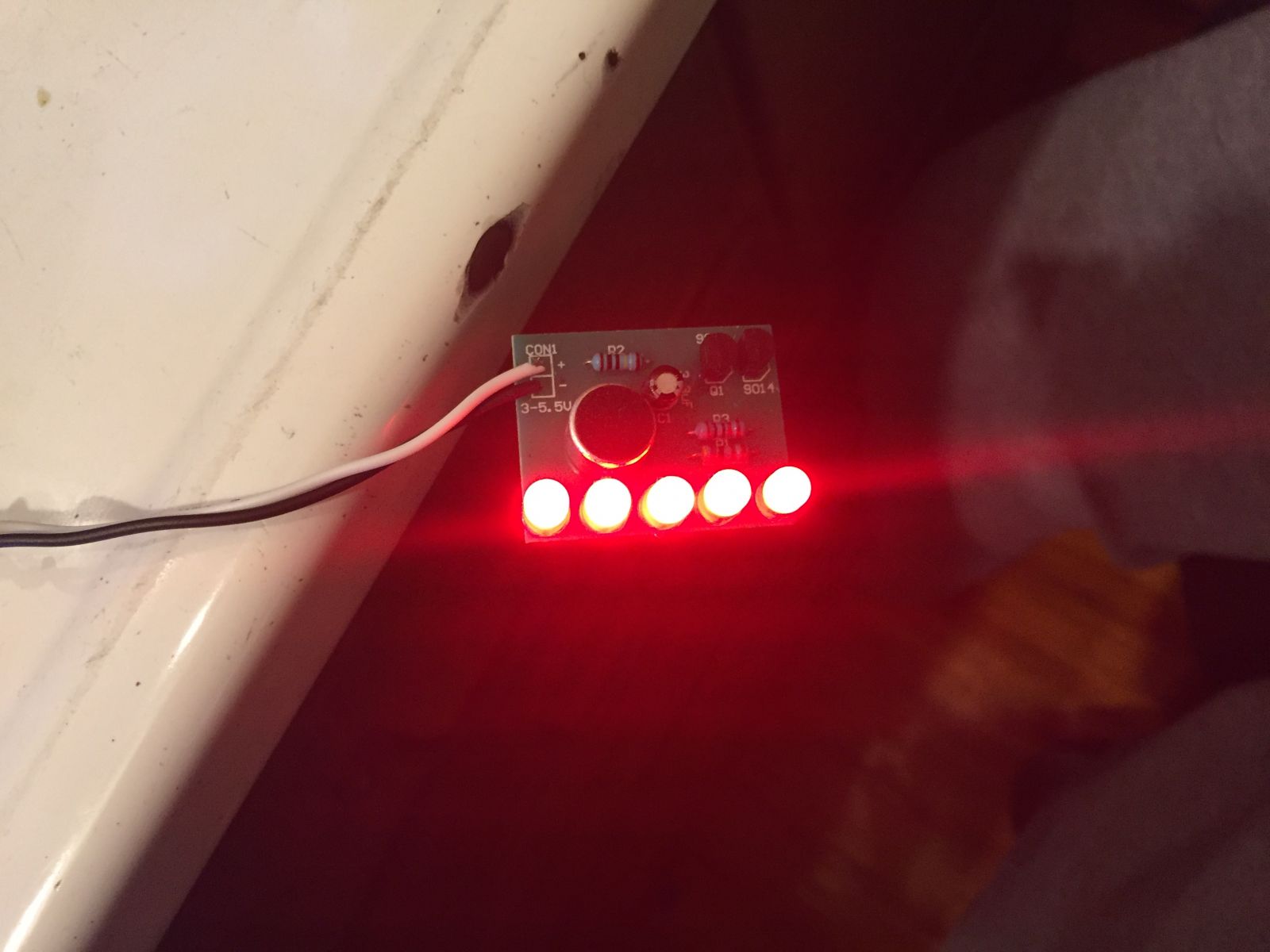

Tested by ICStation Outstanding Customer Elijah
