XH-M222 DC Motor PWM Speed Control Module 800W DC 12V-40V Motor Driver

5 9
$9.99 $7.99
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$23.69-6%Bundled Price:$22.27

This is XH-M222 DC motor PWM speed control module with high-power. The duty cycle adjusted at 0%-100%.

Parameter Value
Input voltage DC 12-40V
Maximum power 800W
Maximum current 20A
Speed regulation principle PWM modulation
Speed range 0-100% full speed (stepless speed change)
Appearance size 86*56*34mm
Net weight About 86g

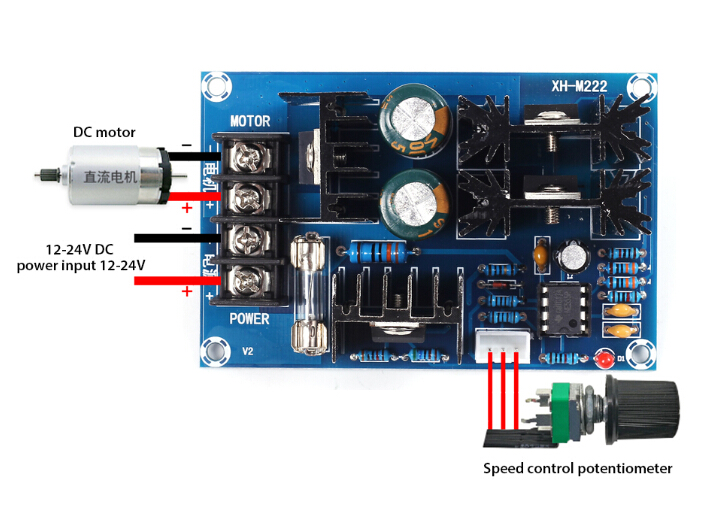

1>. Motor: suitable for all DC motors in DC12-40V (motor only, not for other uses)
2>. Power supply: DC 12-40V power supply.

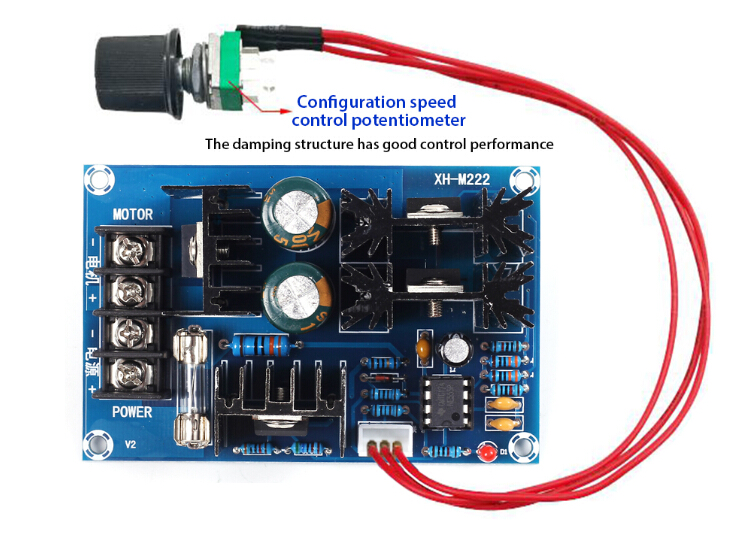

3>. Speed control potentiometer: rotate adjust motor speed, can mediate or at full speed, unplug potentiometer motor rotating at full speed.

1>. Definition:
Pulse width modulation (PWM) is a very effective technique to control analog circuits using digital output from microprocessors.
It is widely used in many fields such as measurement, communication, power control and transformation.

2>. Principle and advantages of speed regulation:
A wave crest and a trough for a cycle. The voltage motor has a wave crest when it rotates. When the voltage is 0, the trough stops rotating.
The cycle time of this module is 0..5MHz// seconds. The conversion period is 0..5 megabits per second.
The traditional speed regulation can adjust the motor speed by changing the voltage, which is low in adjustability and  efficiency.
PWM modulation adjusts the cycle time, and the vector efficiency is higher.

Product Details:

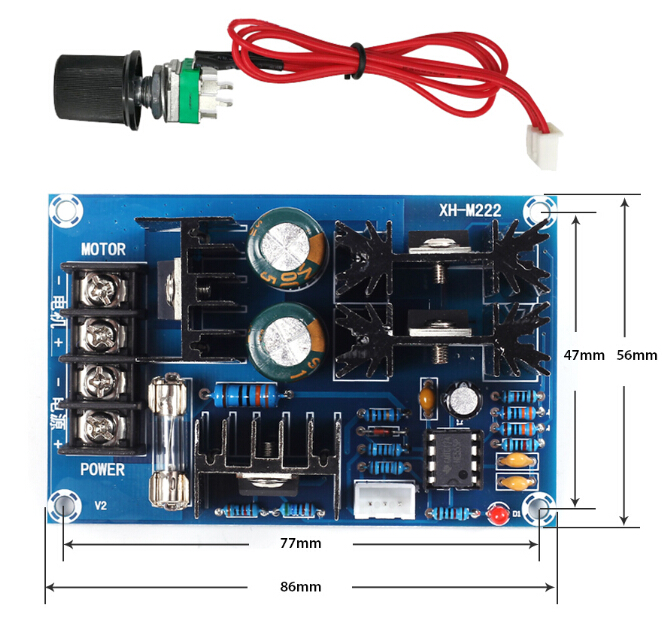

Module Size:
