Home > Power Module > AC-DC Convertor > XH-M651 DC 12-30V 60-300W High Voltage Arc Generator ZVS Driving Board for SGTC Marx Generator

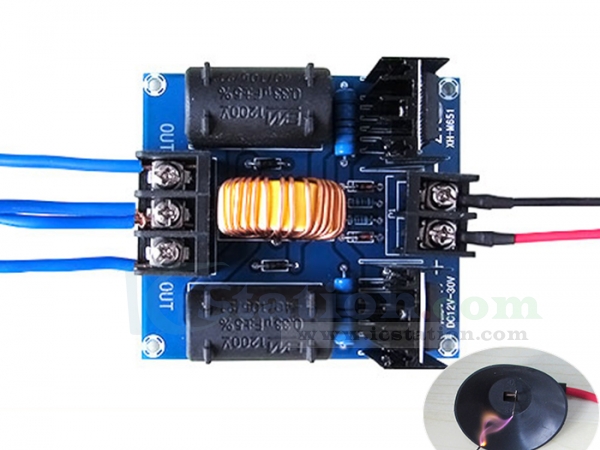

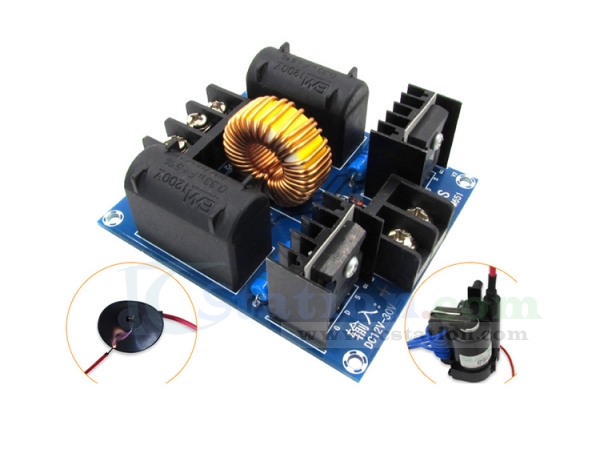

XH-M651 DC 12-30V 60-300W High Voltage Arc Generator ZVS Driving Board for SGTC Marx Generator

11318
5 9
$21.99 $16.49 (only 99 pcs )
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:
1.Model:XH-M651

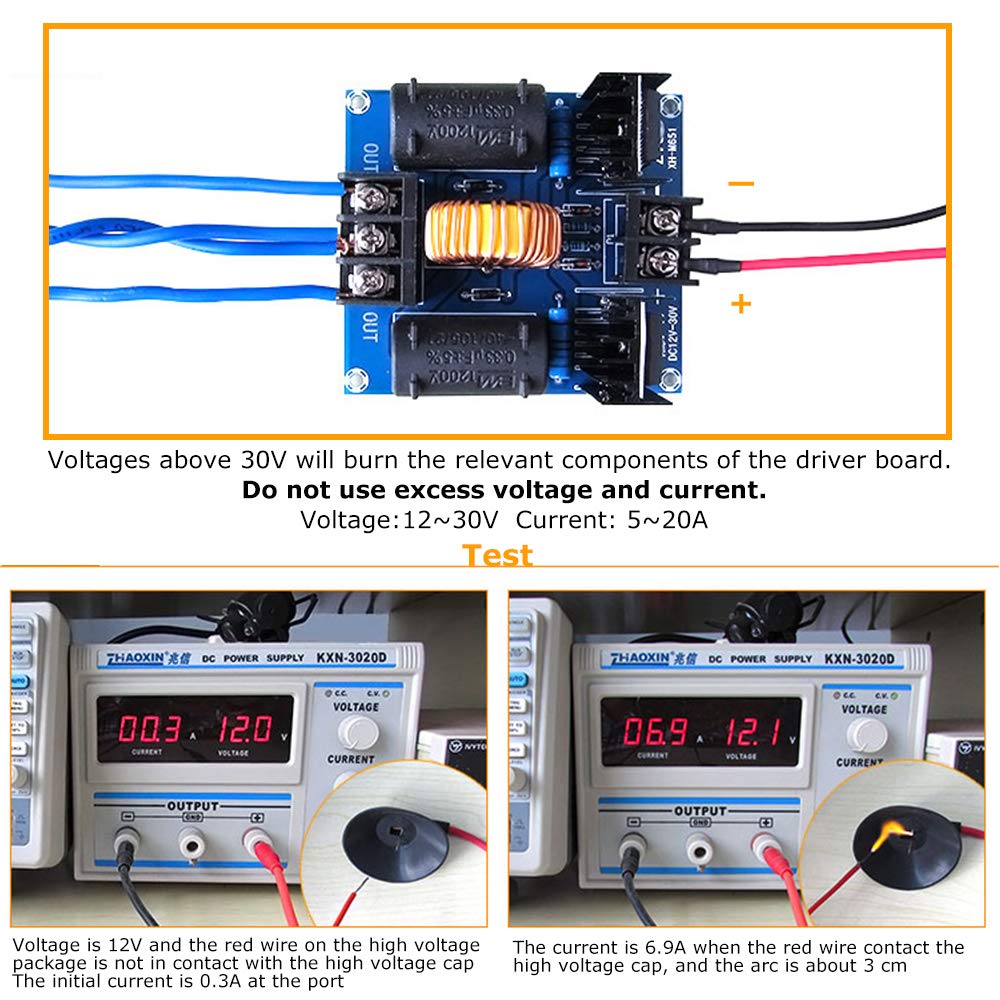

2. Input Power Supply Voltage:DC 12V>=5A;24V>=10A;30V (max)
3.Operating Frequency:30-50kHz
4. Turns of Secondary Parameter:5T+5T

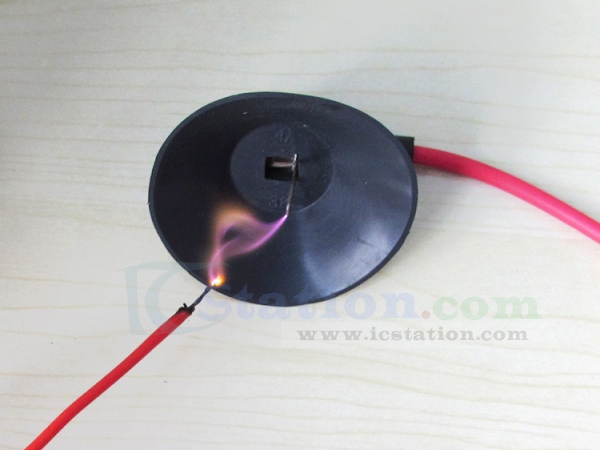

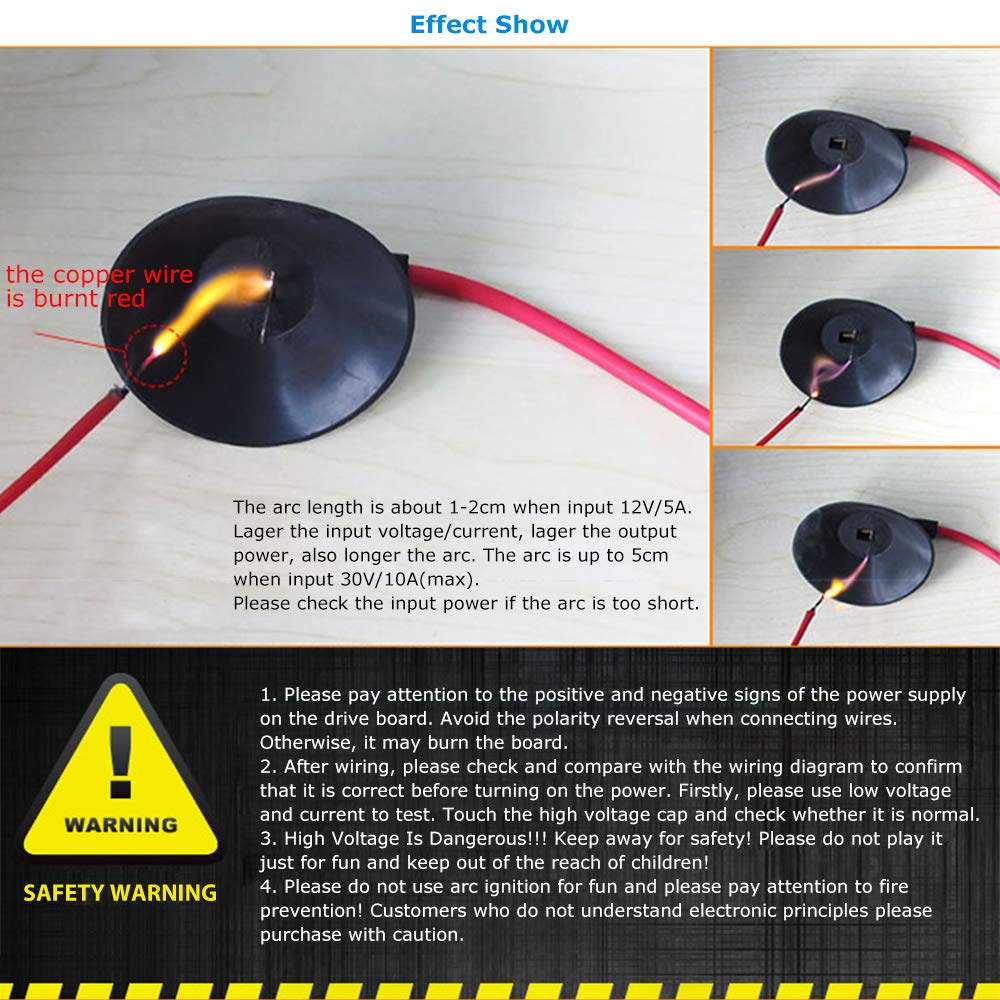

5.Arc Length:1-4cm
6.Output Power: 60-300W
7.Driver Board Size:83*74*33mm / 3.27 X 2.91 X 1.30inch

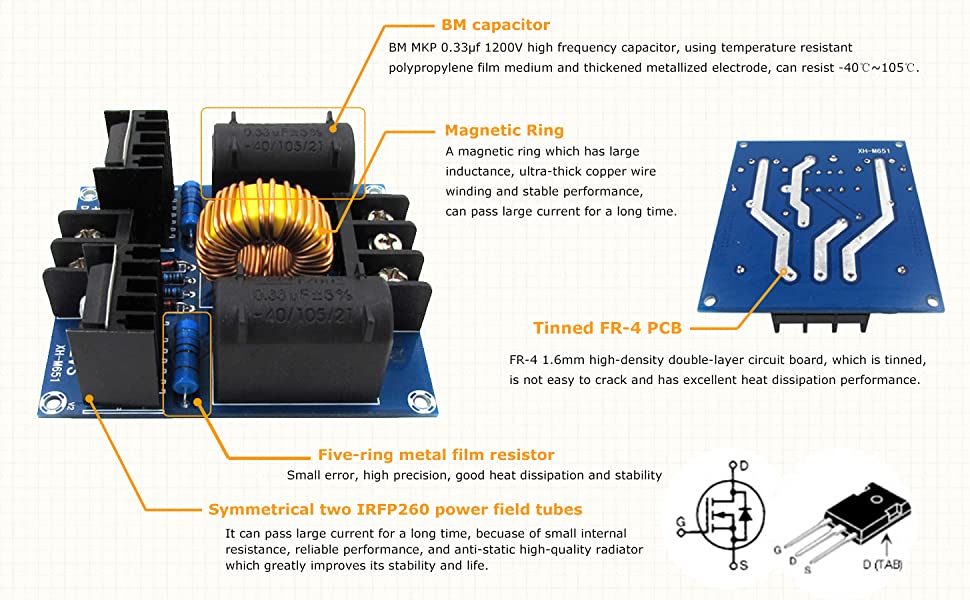

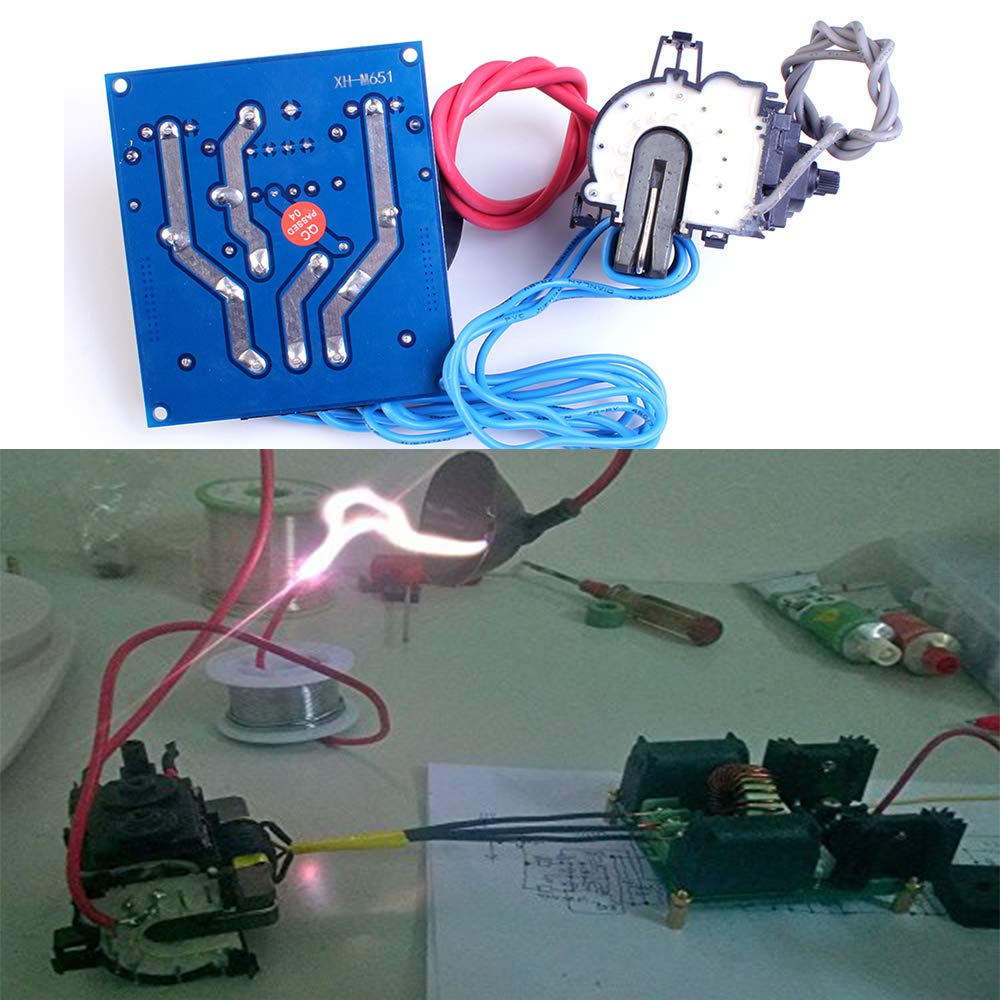

This flyback drive circuit, which is used to drive the ignition coil, has Zero Voltage Switching, so it is called as "ZVS circuit". With big power, low heat and reliability, it is widely used in the drive spark gap tesla coil (SGTC), Jacob, ladders, Marx generator, etc. Icstation ZVS driver kit supports DC 12-30V voltage input and high voltage output which is up to 800 times of the input voltage. And it has high arc that generated up to 3cm, which is ideal for electricity science experiment.

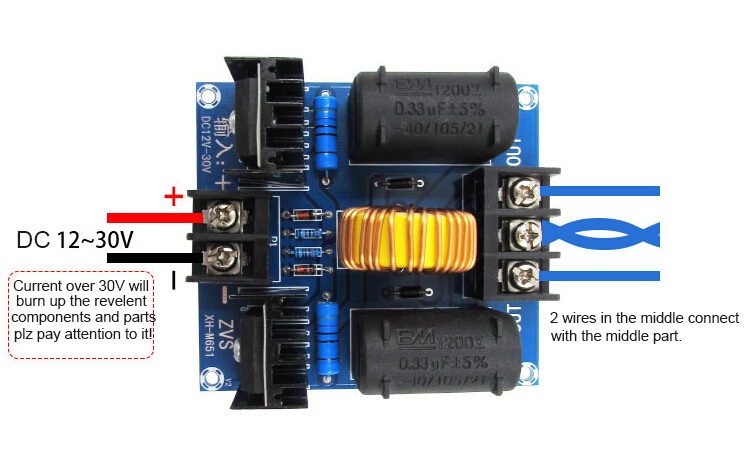

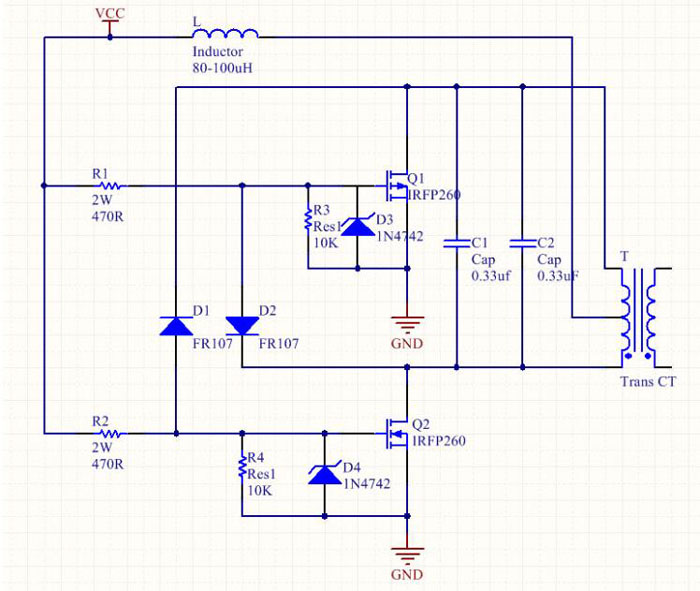

Module Diagram:
