Mosfet MOS Transistor Trigger Switch Driver Board PWM Control Module 3-20V

12191
5 9
$4.99 $3.49
Quantity10+20+
Price$2.99$2.49
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

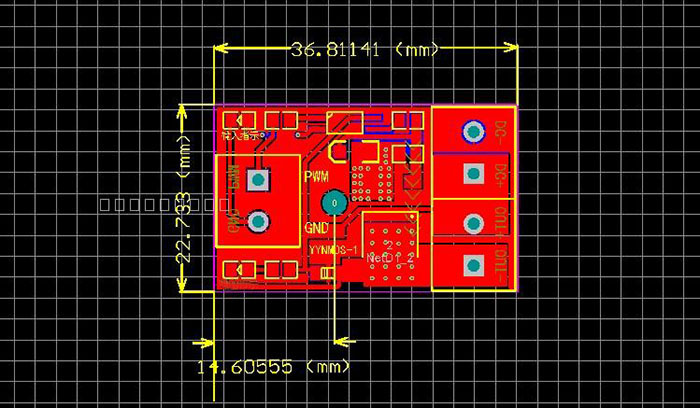

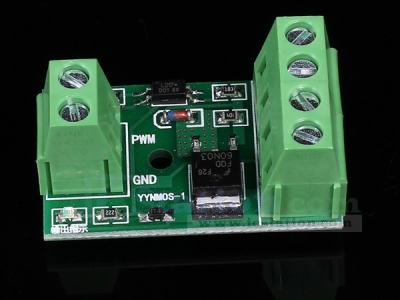

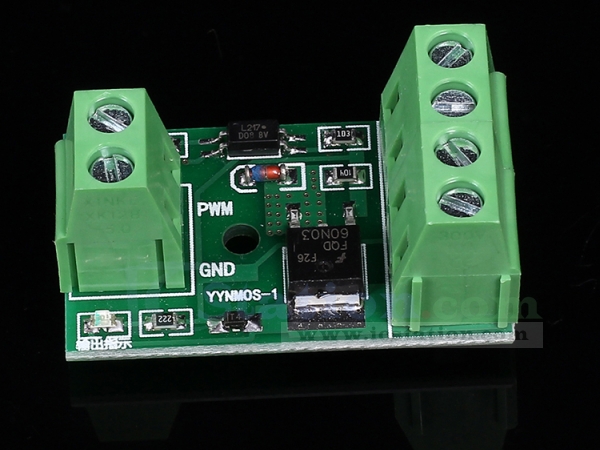

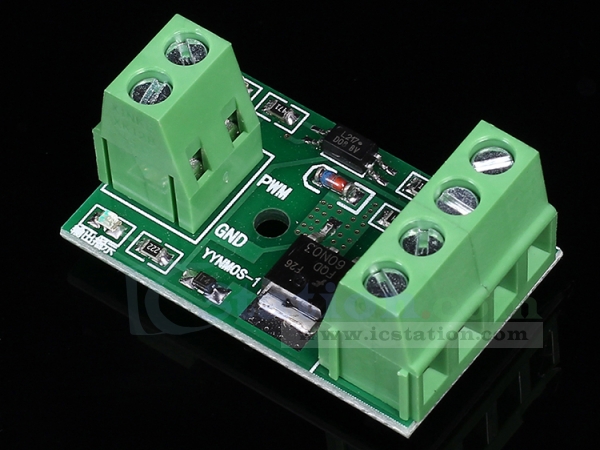

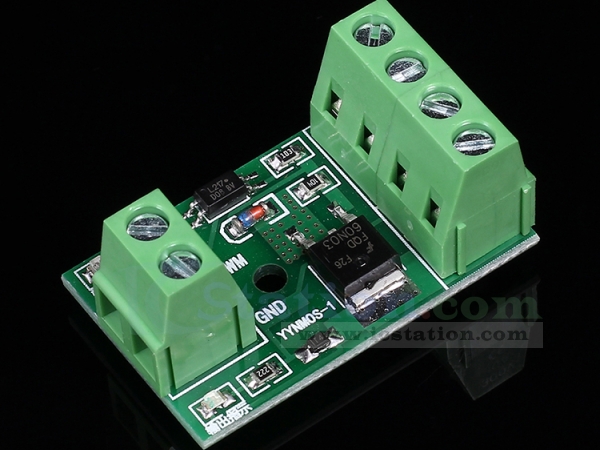

1>. Model: YYNMOS-1 (input and output are completely isolated)
2>. Input Signal: 3-20V PWM signal
3>. Output Capacity: DC 3.7-27V, and the current is within 10A
4>. PWM Frequency: 0-20KHz
5>. Application: output port can control high power devices, such as motors, lamps, LED lamp strings,
  DC motors, micro water pumps, electromagnet valves; it can input PWM to control motor rotate
 speed and the brightness of lamp.

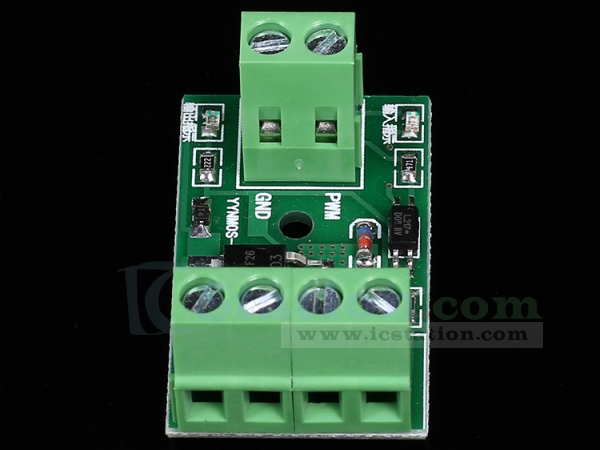

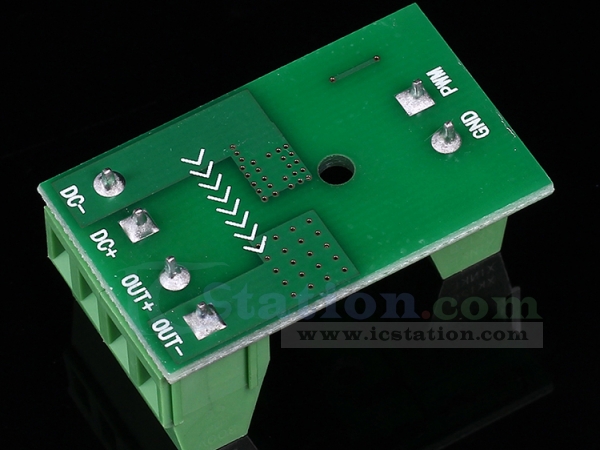

Interface Introduction:
1>. DC+: device DC power positive
2>. DC-: device DC power negative
3>. PWM: signal input port (connects MCU IO ports, PLC interface, DC power)
4>. GND: signal negative port
5>. OUT+: output port positive (connects device positive)
6>. OUT-: output port negative (connects device negative)
