nRF51-M0 Ultra-small Bluetooth nRF51822 BLE4.0 Module Precise with Accelerometer

8466
5 9
$14.35 $11.19
Time Remaining:
- OR - Add to Wish List

Description:
Introduction:
ULP and Ultra-small  wireless module
The nRF51-M0 module is a powerful multi-protocol module solution for ULP wireless applications. It incorporates Nordic's latest best-in-class performance radio transceiver, an ARM Cortex M0 CPU and 256 flash + 16kB RAM memory. Integrated an ultra-low power accelerometer, LIS3DH, which is a high performance three axes linear accelerometer, with digital I2C/SPI serial interface standard output.
User defined outside 2.4Ghz antenna leaves the biggest flexibility to the customer for matching different application, like high power long distance and short distance application.

Specifications:


APPLICATIONS
-   Wearables
-   Beacons
-   Appcessories
-  Computer peripherals
-  Proximity and security alert tags
-  Sports- and fitness sensors
-  Healthcare and lifestyle sensors
-  Game controllers for computers
-  Toys and Electronic games
-  Domestic/Industrial control and data-acquisition
-  Intelligent domestic appliances
-  CE remote controls for TV, STB and media systems

KEY FEATURES
-  Software stacks available as downloads
-  Multi-protocol 2.4GHz radio
-  32-bit ARM Cortex M0 processor
-  256 flash + 16kB RAM
-  Fully on-air compatible with nRF24L-series
-  Programmable output power from +4dBm to -20dBm
-  RSSI
-  RAM mapped FIFOs using EasyDMA
-  Dynamic on air payload length up to 256 Bytes
-  Flexible and configurable 10 pin GPIO
-  Integrated an ultra-low power accelerometer, LIS3DH
-  SMT available for fast manufacturing
-   Full set of digital interfaces including: SPI/2-wire/UART
-  3 X 8-bit ADC
-  128-bit AES ECB/CCM/AAR co-processor
-  Low cost external crystal 16MHz ± 40ppm
-  Ultra-low-power 32kHz crystal and RC oscillators
-  Wide supply voltage range (1.8 V to 3.6 V)

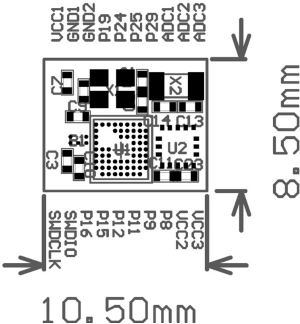

-  Package options: 8.5 X 10.5 mm

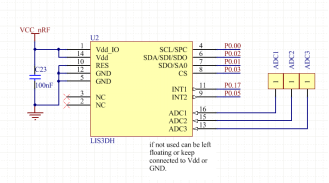

Accelerometer connection
The LIS3DH can be connected by I2C or SPI interface. Make sure the P0.03 is high and P0.01 is not float, when you connect it by I2C interface.
The 8-bit ADC is come from LIS3DH, which is great helpful to reduce the complexity of the software.



Flexible and configurable GPIOs
The nRF51-M0 module have 10 Flexible and configurable GPIOs, it means you can make every single GPIO as every function that it can be. Only needed is to set them through the software.


Note: There is no program in this module, users need to program by themselves.
