Power Polarity Detection Module AC L/N/E Wire Detector 16A Voltage Regulator

12436
5 9
$2.85 $2.22
Time Remaining:
- OR - Add to Wish List

Description:
The power detector module can be used to check whether the live line, zero line of the socket are connected according to the request,
and it can figure out the safety problems of household socket so as to guarantee your safety.

Features:
1>. Onboard 5.08mm connection terminal
2>. Onboard 3 LEDs status lamp
3>. Used for detecting socket whose rated current is 10A or 16A
4>. Working temperature:-25~85℃

Using Introduction:
1>. The L, N, E pin on the connection terminal should respectively connect L (live/phase line), N (zero line), E (GND)
2>. According to L1, L2, L3 status to judge whether the connection is correct (0 means off, 1 means on)

L1 L2 L3 Test Result
0 1 1 Right Connection
0 1 0 GND Not Connected
0 0 1 Neutral Line Not Connected
1 1 0 Live Line Neutral  Line Wrong Connected
1 0 1 Live Line GND Wire Wrong Connected
1 1 1 Live Line GND Wire Wrong Connected And GND Not Connected

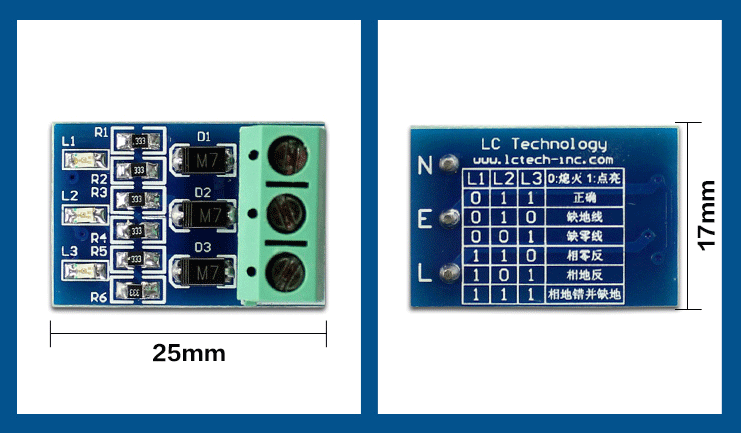

Module Size
