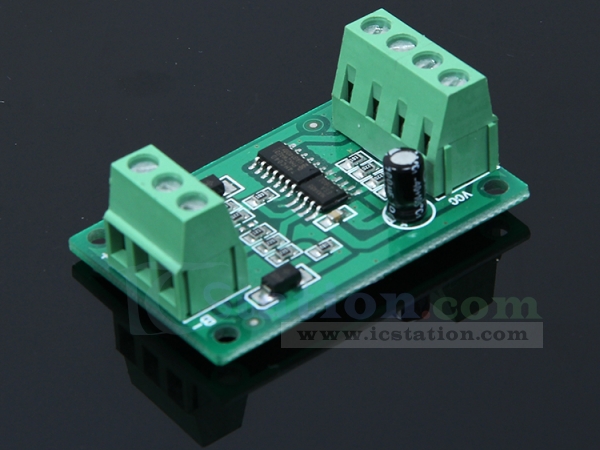

TTL to RS485 Conversion Module Automatic Lighting and Surging Protection

TTL to RS485 RS485 Turn TTL Conversion Module Automatic Lighting and Surging Protection

Product Introduction:
1.Size:36*22*18mm
2,Operating Voltage: DC 5V

Features:
1.Circuit is simple and practical,and connection is simple.
2.One port connects with 485 module, and the other can directly connect with SCM
3.Can achieve SCM to SCM communication by conversion module'
4.Circuit is light and easy to install
5.Maximum communication distance is 1200 meters
6.RS485 the fastest data transmission speed rate is 10Mps
7.RS485 the farthest communication distance is 1200 meters, the farthest transmission speed rate is 10Mbs/S. Transmission speed rate is in inverse proportion to transmission diatance.

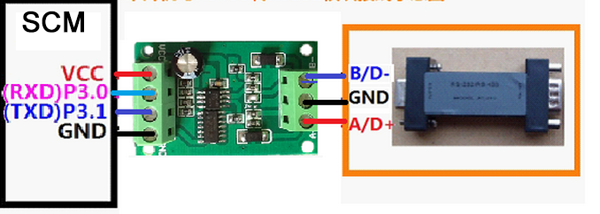

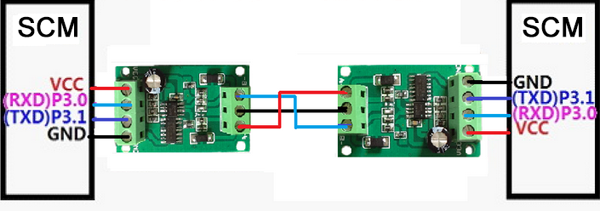

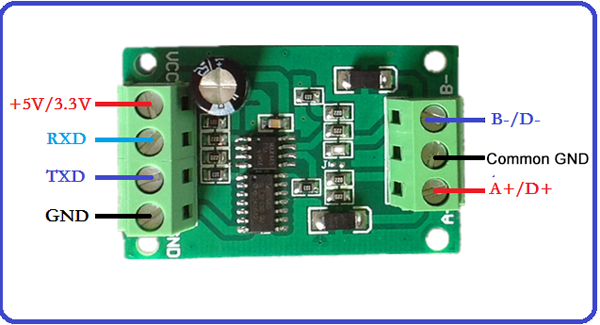

Connection Diagrams:
