Home > Wireless Module > WiFi Module > 2.4G RTL8189ES-44 Wifi Wireless Transceiver Module SDIO Interface 3.3V 100m 150Mbps

2.4G RTL8189ES-44 Wifi Wireless Transceiver Module SDIO Interface 3.3V 100m 150Mbps

5 9
$3.35 $2.58
Time Remaining:
- OR - Add to Wish List

2.Interface Type: SDIO (1.1/2.0/3.0)/ SPI
3.Antenna Type: built-in antenna
4.Size: 12*12mm
5.Protocol/Standard: IEEE 802.11b, IEEE 802.11g, IEEE 802.n (1T1R modes)
6.Frequency Range: 2.400-2.4835GHz
7.Channel: 1-11 (America, Canada), 1-13 (Europe), 1-14 (Japan)
8.Modulation Mode:
  802.11b:DSSS (CCK, DQPSK, DBPSK); 802.11g/n
  802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
9.Wireless Transmission Rate:
  802.11: 1, 2Mbps
  802.11b: 11, 5.5Mbps
  802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
  802.11n: 150Mbps (max)
10.Transmit Power: 802.11b/g; 13+/-1.5dBm
11.Receive Sensitivity: 802.11b/g; -74+/-1.0dBm
12.Frequency Offset: 802.11b/g; +/-15PPM
13.Operating Mode: Ad-Hoc mode and Infrastructure mode
14.Wireless Safety: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TK1P/AES)
15.Power Consumption: 190mW (standby); 650mW (operating)
16.System Support: Linux/Android/WIN2000/XP/VISTA/WIN7
17.Operating Temperature: -20~70 Celsius
18.Operating Humidity: 10%-90%
19.Transmission Distance: 100m
20.Voltage: 3.3V (+/-5%)
21.Applications: for robots, network set-top box, intelligent household appliances,
   network camera, intelligent TV, unmanned aerial vehicle image transmission, vehicle device.

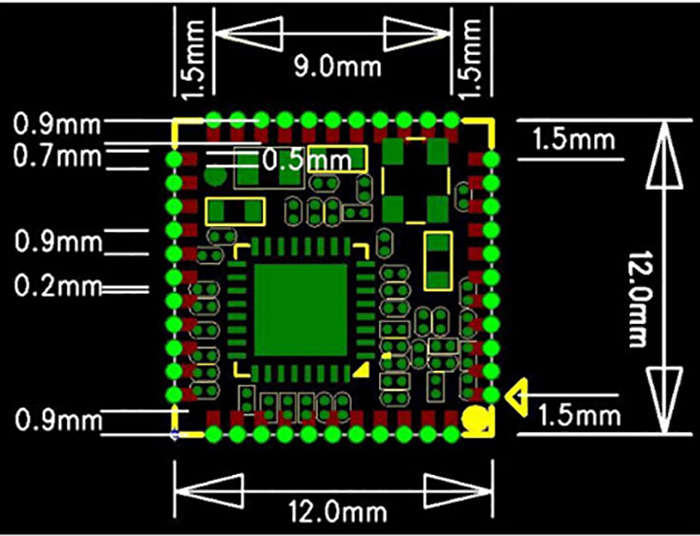

Module Size

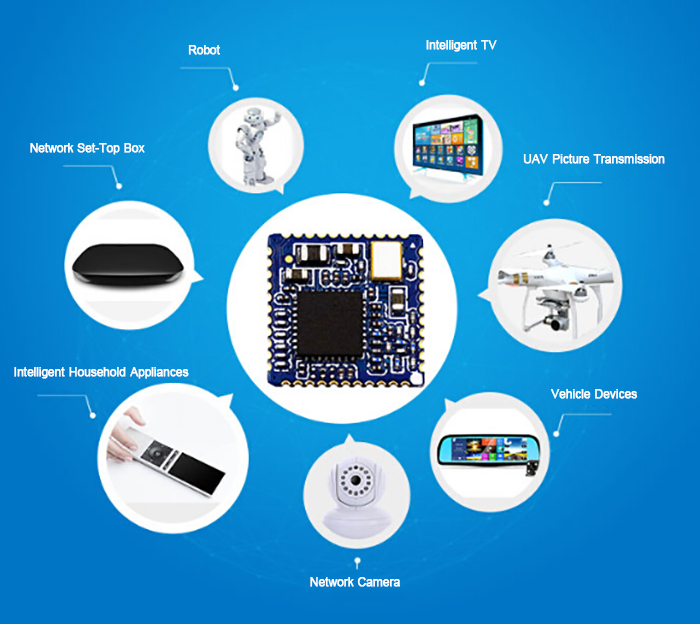

Application Field

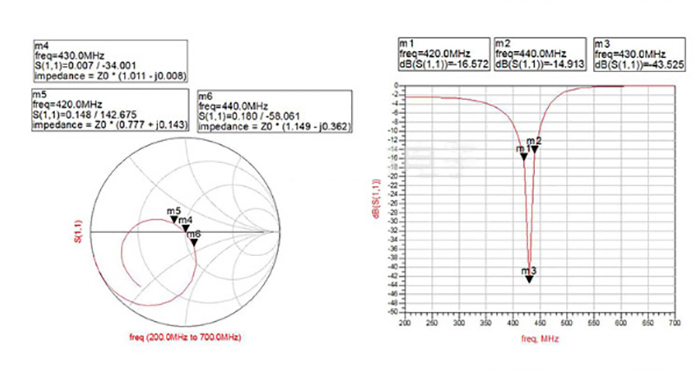

Module Test
