Single Axis Light Source Tracking Plate Solar Tracking Sun Tracking Plate Sensor Light Sensor Circuit Board Module

5 9
$5.99 $4.91
Time Remaining:
- OR - Add to Wish List


NO. Parameter Value
1 Name single axis light source tracking board

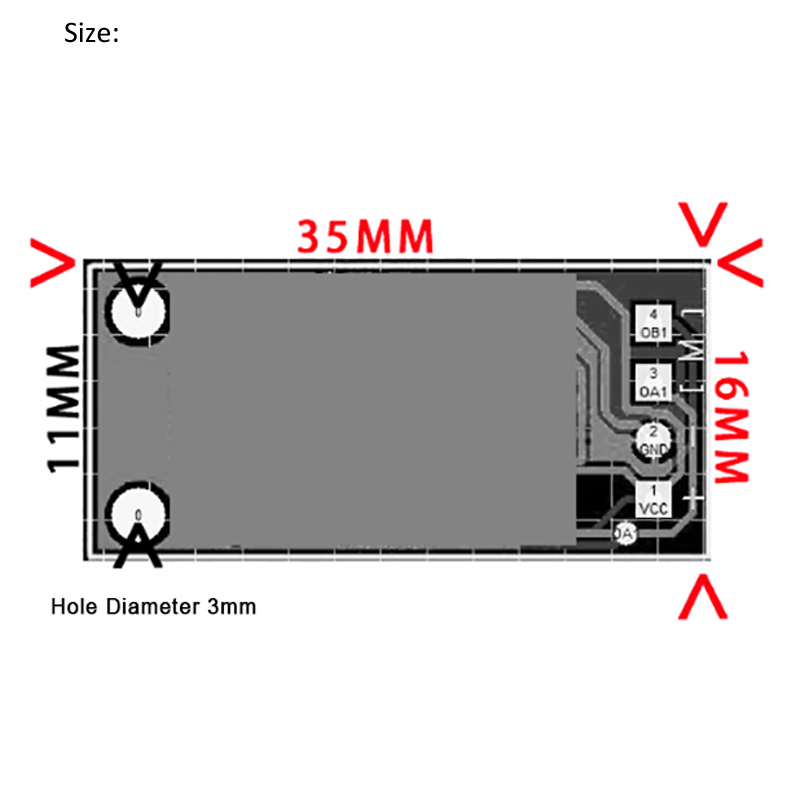

2 Size 35*16*1.2mm
3 Voltage DC 5-5.5V
4 Current <1.5A
5 Interface power +/-, motor M

Put a shelter on the photosensitive resistor; when the light shines on the shelter and forms a shadow, one resistor generates a difference with another resistor;
control the motor and to find the balance point, that is the central point of the light source.

Reduction motors; the slower of the speed is, the better it will be. We recommend use JGY370 6V. When the power supply is 5V, it has no load and stable speed.
If the speed of is too fast, the motor will not aim at the light source and sway but not shake. This circuit adopts anti-shaking short delay.

When the motor connects the board, there is no difference of positive and negative.
When testing, if the motor rotates toward the opposite direction of the light source, then change the motor wire position.

Note: the power should be stabilivolt 5-5.5V, and it cannot connect the solar board.

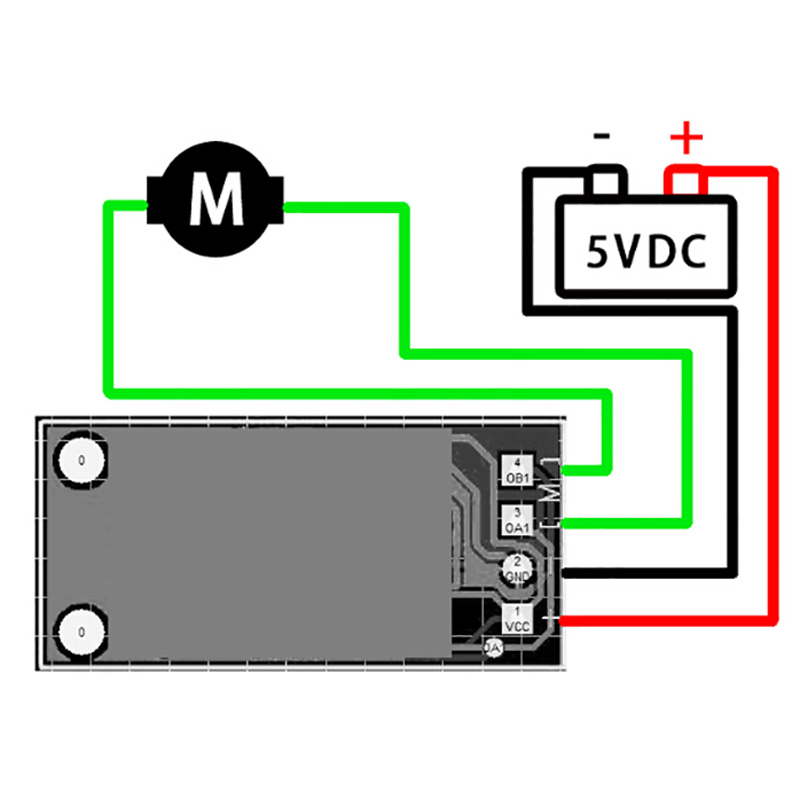

Wiring diagram:
1.Probe wire length is 15cm
2.Encryption chip, and it can not be decoded.

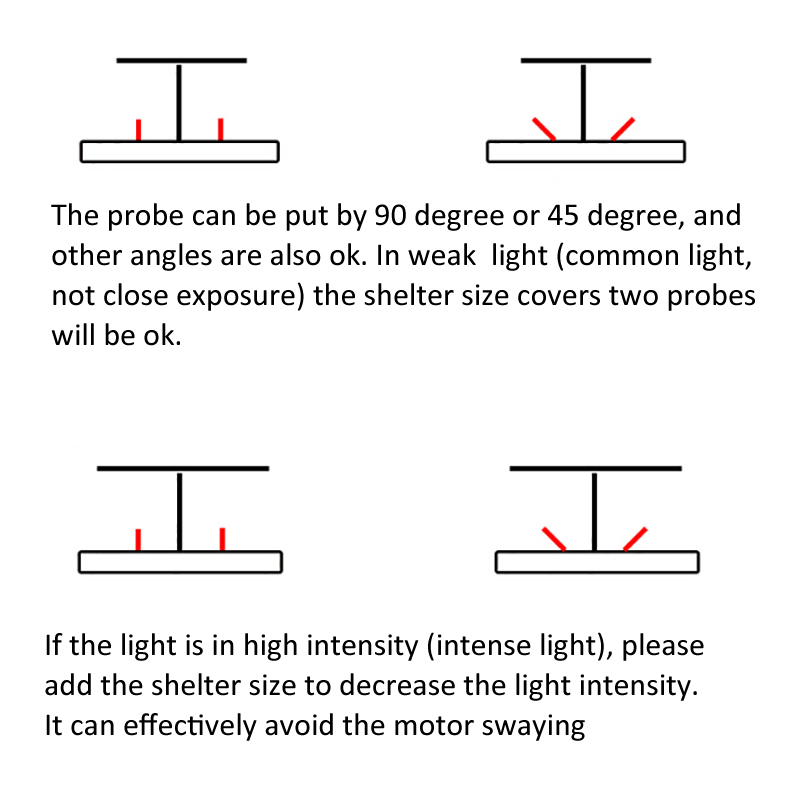

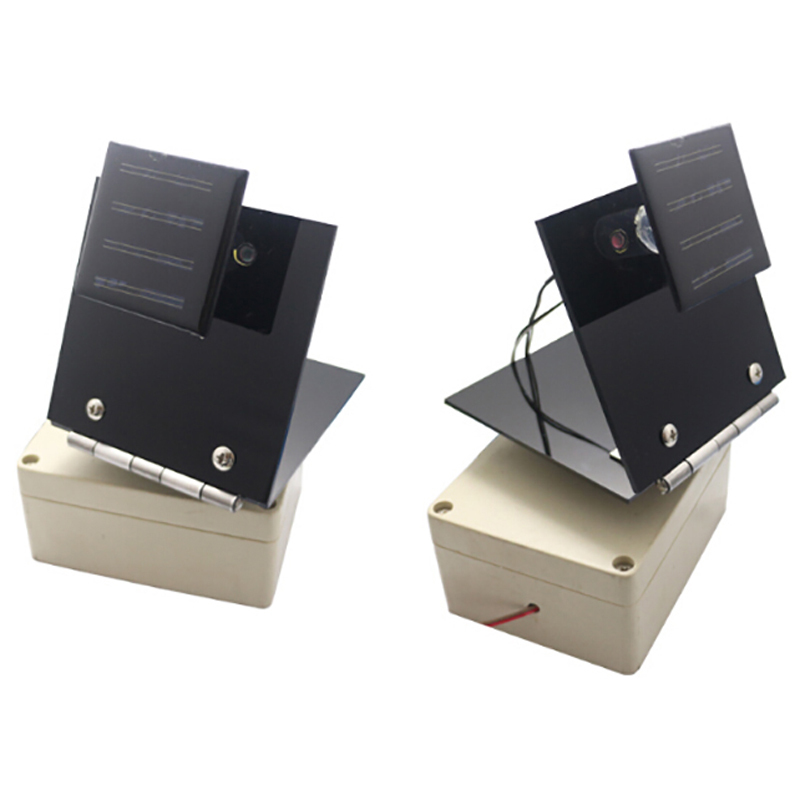

Just as the picture shows, the photosensitive probe should be in the same surface, the upper side should put a small solar piece as shelter;
when the left probe light intensity is larger than the right, then the motor will rotate left; and it will stop when the two probes gain a balance.
The shelter size is relevant to the angle precision, it should shelter both of the probes.

Notice: the tracking angle precision is affected by the probe position, angle, shelter size; if you cannot aim at accurately, please check it by yourself.
