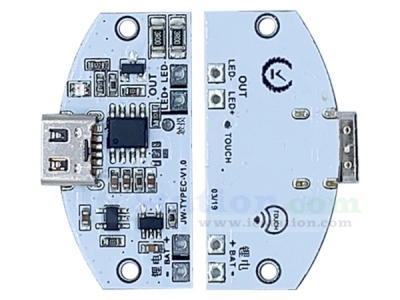

USB Touch Table Lamp Dimmer LED Driver 0-100% Stepless Dimmer Module Charging Protection Circuit

GY20812-1
5 9
$6.69 $4.68
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   It is a USB Touch Table Lamp Dimmer LED Driver 0-100% Stepless Dimmer Module Charging Protection Circuit.

2.Feature:
  1>.Dimming smooth eye protection without screen flash;
  2>.Capacitive touch sensing, anti-interference, high sensitivity, long life;
  3>.Board with battery overcharge and overdischarge protection, lithium battery can not need to protect the board.

3.Parameter:
  1>.Product name: TYPED Lithium charging eye protection touch dimming module
  2>.Charging voltage: TYPE-C input DC 5V
  3>.Charging indicator: When there is no battery, the green light is on when inserting 5V, the red light is on when charging, and the green light turns when full
  4>.Charging current: About450-500mA
  5>.Battery input: connected to 3.7V polymer or single 18650 lithium battery
  6>.Output voltage: Isobaric output
  7>.Output power: The maximum power is 2A and the total power is 8W
  8>.Induction mode: capacitive human touch induction
  9>.Inductive penetration: 0-3mm(customizable sensitivity)
  10>.Work Temperature: -25℃~85℃
  11>.Work Humidity: 5%~95%RH
  12>.Size: 35*17mm

4.Package:
  1pcs TYPED Lithium charging eye protection touch dimming module

5. Product Short Video:

https://www.youtube.com/shorts/rPYPnBdZ32U
