Trigger Cycle Timer Delay Relay Module Dual MOS Tube Control 5-36V

10533
5 9
$4.99 $3.99
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Operating Voltage:DC 5V-36V
2.Trigger Signal Source:high level trigger (DC 3.0-24V)
3.Output Capacity:DC 5V--36V/15A/400W
4.Quiescent Current:15mA
5.Operating Temperature:-40~85 Celsius
6.Size:6.03.4*1.2cm
7.With Optocoupler Isolation:enhance anti-interference capacity
8.Note:this module is active electricity output;output port voltage is equal to input port voltage (DC 5V--36V)."DC+" and load "+" are internally short circuit connection,but "DC -" and load "-" cannot be short circuit connected

Features:
1.Wide voltage input (5-36V),most devices can be used,very convenient
2.The interface is clear and simple,powerful,easy to understand,meet almost all your needs
3.The emergency stop function ("STOP" key);With reverse polarity protection,reverse polarity will not burn the product
4.Increase the sleep mode,if this mode is enabled,without any operation within 5 minutes,then automatically turn off the monitor,any key wake-up
5.You can set a different OP,CL,LOP parameters,which are independent of each other,and are automatically saved
6.After the module is powered down,all parameter settings are not lost

Operating Mode:
P1:trigger signal,the relay is on "OP" time, and then disconnect;in the "OP" time,as follows:
   P1.1:signal is triggered again,invalid
   P1.2:signal is triggered again,the clock is reset
   P1.3:Signal trigger again,relay off,stop the clock
P-2:trigger signal,the relay off "CL" of time,the relay on "OP" time,and then disconnect relay
P3.1:trigger signal,the relay is turned on after the "OP" time,the relay off "CL" time,then the operation cycle,if the trigger signal period,the relay off,stop the clock; the number of cycles ( "LOP ") can be set
P3.2:without triggering signal,the relay is on "OP" time,the relay off "CL" time,and has been cycling;frequency ("LOP") cycle can be set;
P-4:signal holding function.If there is a trigger signal timing is cleared,the relay remains on;when the signal disappears,after the timing "OP" time,the relay is;if another signal during timing,timing is cleared

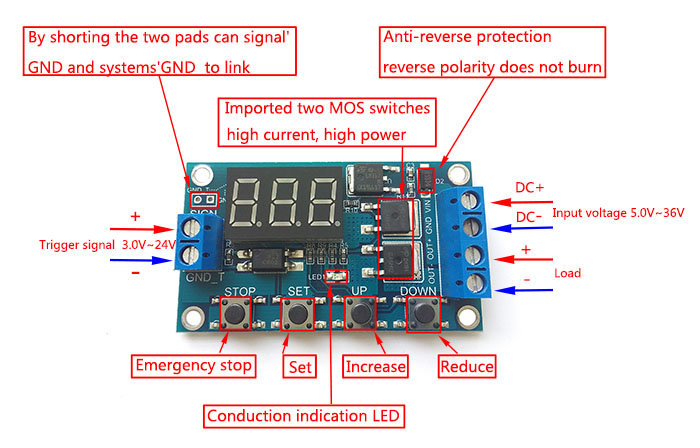

Connection Picture:
