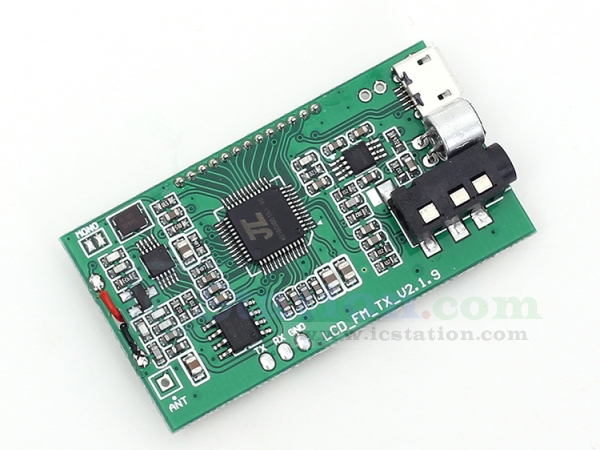

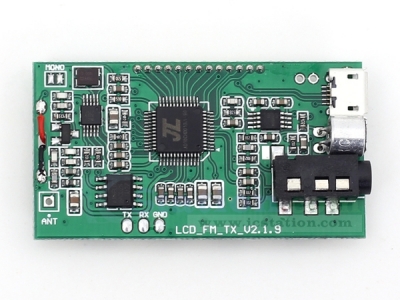

PLL 76.0-108.0MHZ FM Stereo Transmitter Module USB PC Digital Audio Broadcast Wireless Microphone Audio Module LCD Display

10539
5 1
$9.59 $7.19
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:
1.Output Power:100mW
2.Audio Frequency Response Range:50Hz-18KHz
3.Transmission Frequency:87.0MHz-108.0MHz (campus broadcast power off);76.0MHz-108.0MHz (campus broadcast power on)
4.Frequency Adjustment Stepping:0.1MHz/times (short press the key);1.0MHz/times (long press the key)
5.Modulation Mode:standard FM
6.Sound Track:LINE/USB channel (stereo);MIC channel (single channel)
7.Equivalent Noise:>=30dB
8.Power Supply Voltage:DC 3.0V-5.0V
9.Operating Current:35mA
10.Adaptive Antenna:75cm bar antenna

Application:
1.FM Wireless Frequency
2.USB PC Audio Broadcast
3.Wireless Microphone
4.Maternal And Infants Custody

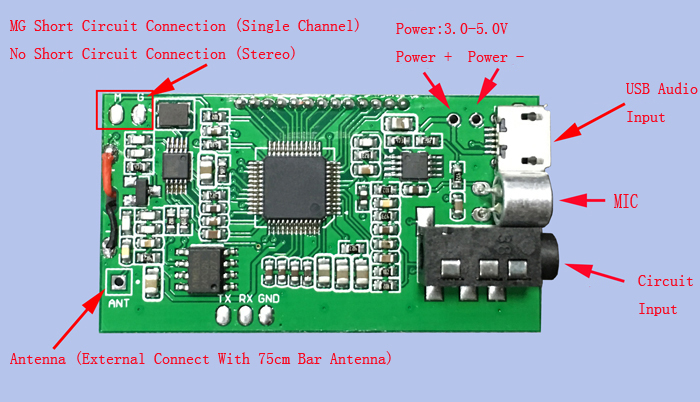

Connection Picture:

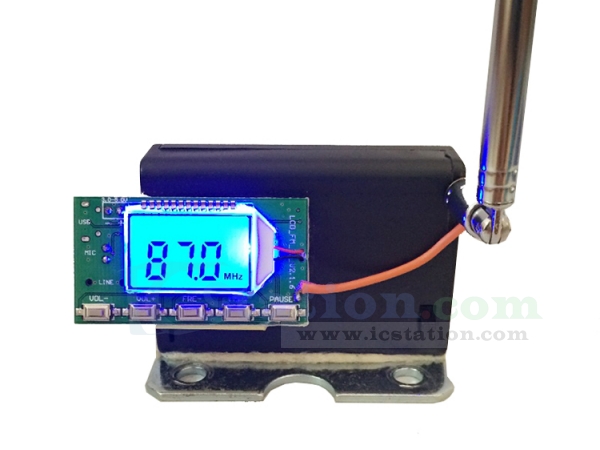

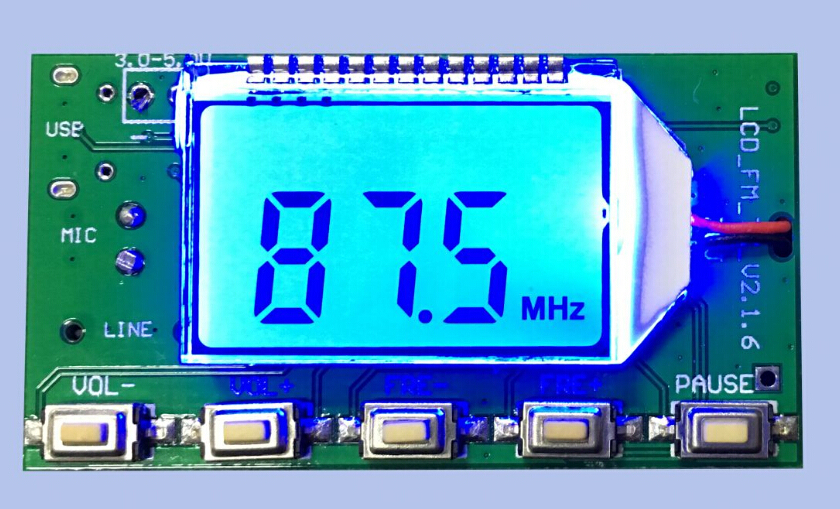

Effect Picture:

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2018-06-23 14:29:13
Exellent fm transmitter... Has a build in soundcard !!!! So you plug it in your usb port under windows 10 and you can play your music in the fm band...
