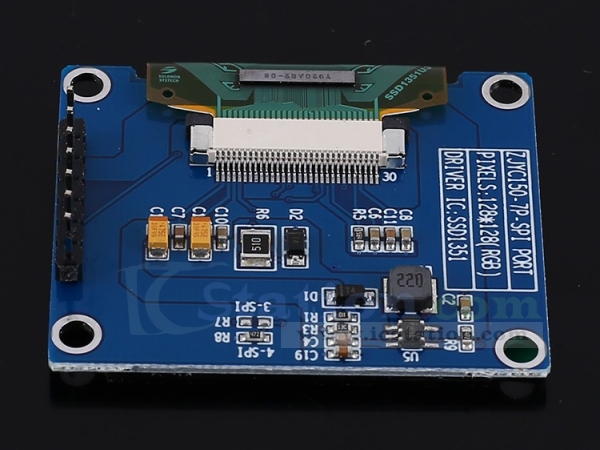

1.5inch 128x128 SPI RGB OLED Display Screen Module 65K SSD1351 Driver 128*128 3.3V Power

GY17199
5 9
$16.59 $11.61 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Share
1.Description:

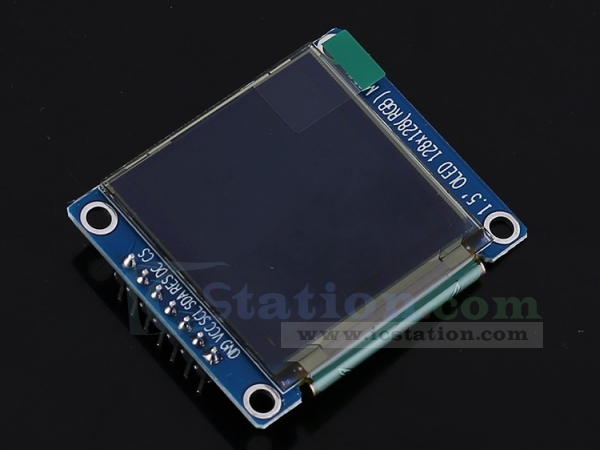

  It is a 1.5 inch OLED display screen module.It is a color display that can adjust the brightness.

2.Feature:
  1>.RGB display
  2>.Adjust brightness
  3>.Full view
  4>.OLCD display
  5>.High Definition

3.Parameter:
  1>.Product Name:Display Screen Module
  2>.Product Material:Highlight PM OLED
  3>.Work Voltage:3.3V
  4>.Display Size:1.5inch
  5>.Product Resolution: 128*128
  6>.Interface Type:SPI output
  7>.Driver Chip:SSD1351
  8>.Display Color:RGB
  9>.Number of Pins:7
  10>.Work Temperature:-40℃~85℃
  11>.Work Humidity:5%~95%RH

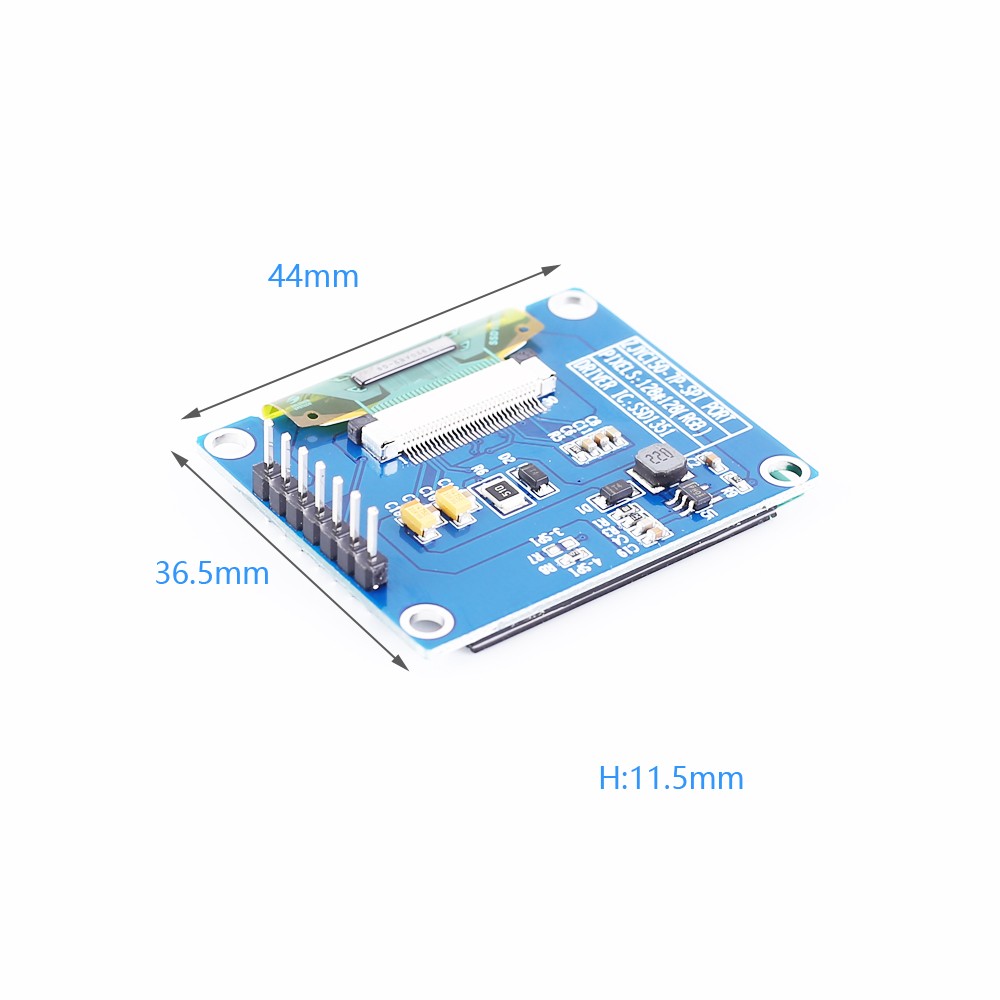

  12>.Model Size:44*36.5*11.5mm

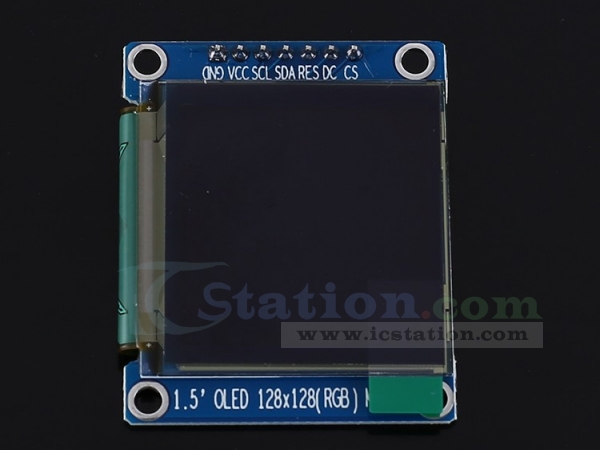

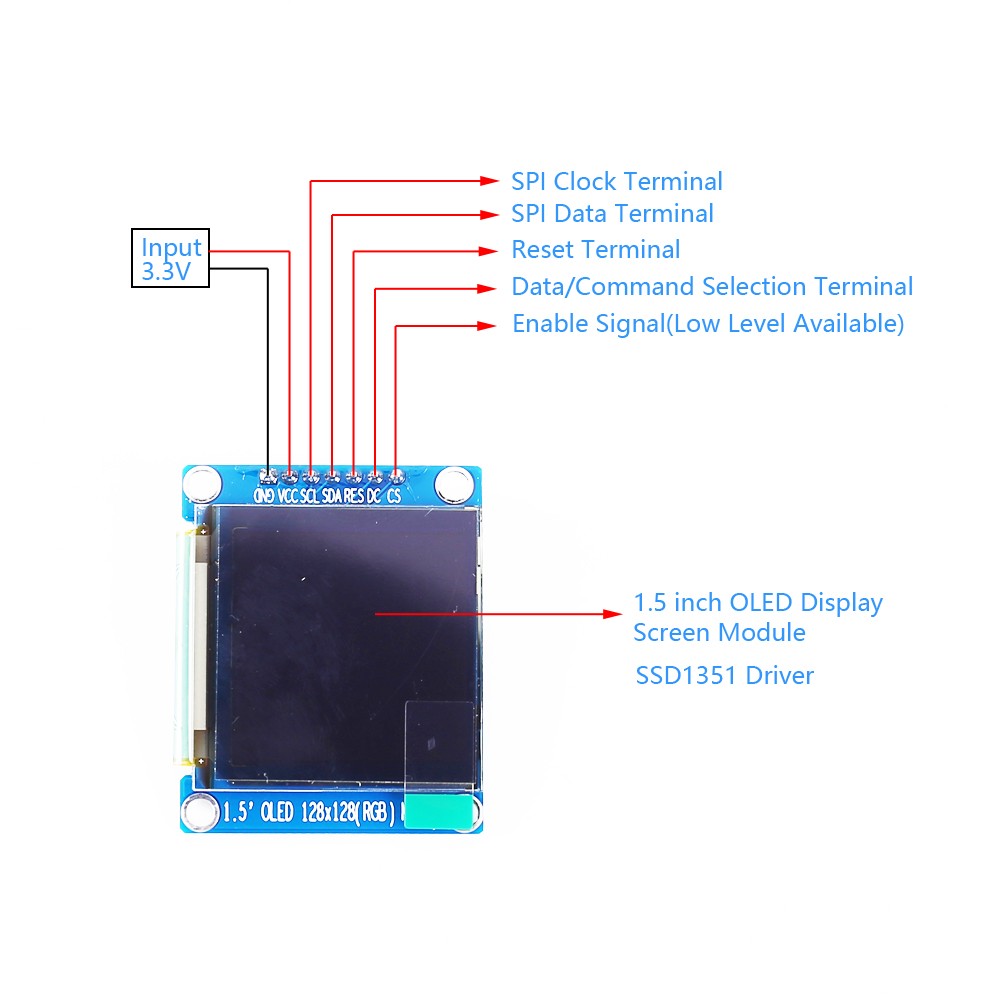

4.Common Pin:
  1>.GND:Power negative
  2>.VCC:Input power supply positive 3.3V
  3>.SCL:SPI clock terminal
  4>.SDA:SPI data terminal
  5>.RES:OLED screen reset terminal (need to reset once after power on)
  6>.DC:Data/command selection terminal
  7>.CS:Enable signal(Active low)

5.Package:
  1pcs OLED Display Screen Module
