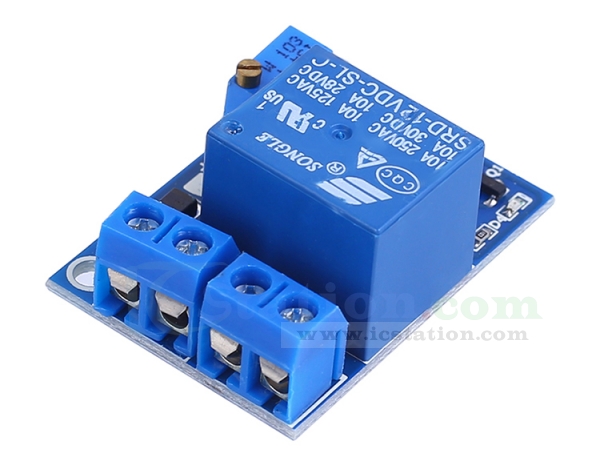

12V Battery Undervoltage Management Module Battery Load Power-off Protection Switch

GY20082
5 9
$12.75 $8.93
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
  It is a undervoltage protection switch.When the battery voltage is lower than the set value,the module will disconnect power to the load;when the battery voltage is restored,the module will continue to supply power to the load.

2.Feature:
  1).It can react automatically according to the voltage of the battery and does not need to operate by itself.

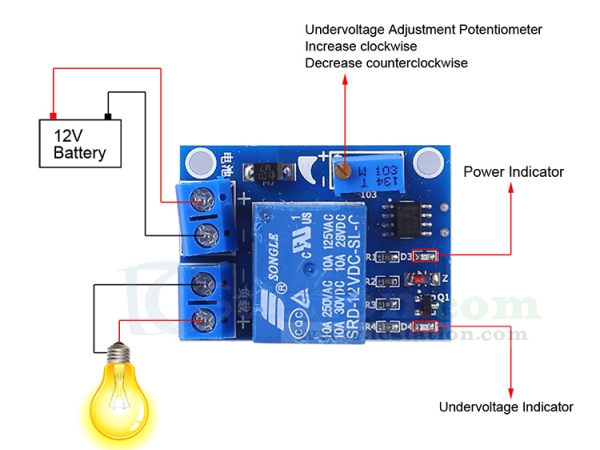

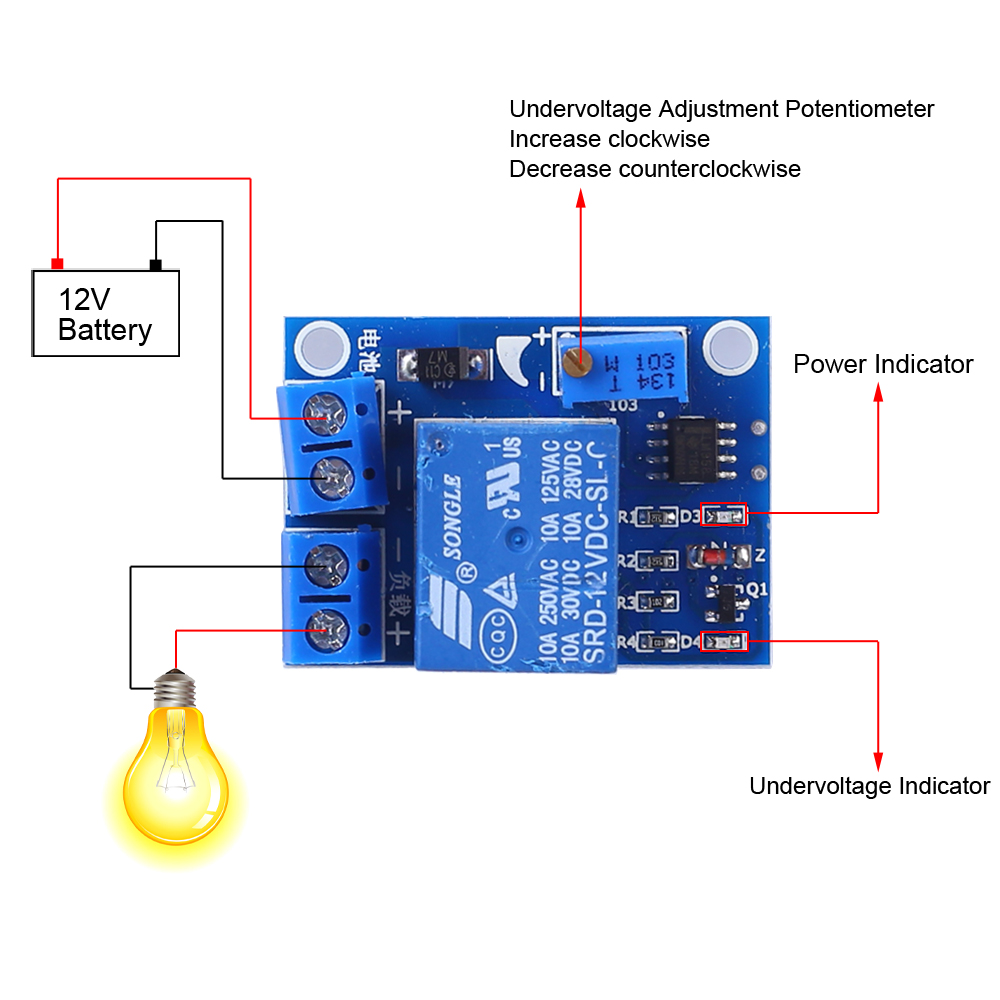

  2).It has an under-voltage adjustment potentiometer,which can adjust the under-voltage parameters.
  3).It has undervoltage indicator and power indicator,you can see the working status at a glance.

3.Parameter:
  1).Product Name:Undervoltage Protection Switch
  2).Supply Voltage:DC 12V
  3).Product Power Consumption:10mA(Max)
  4).Output Voltage:DC 12V
  5).Output Current:10A
  6).Work Temperature:-25℃~85℃
  7).Work Humidity:5%~95%RH

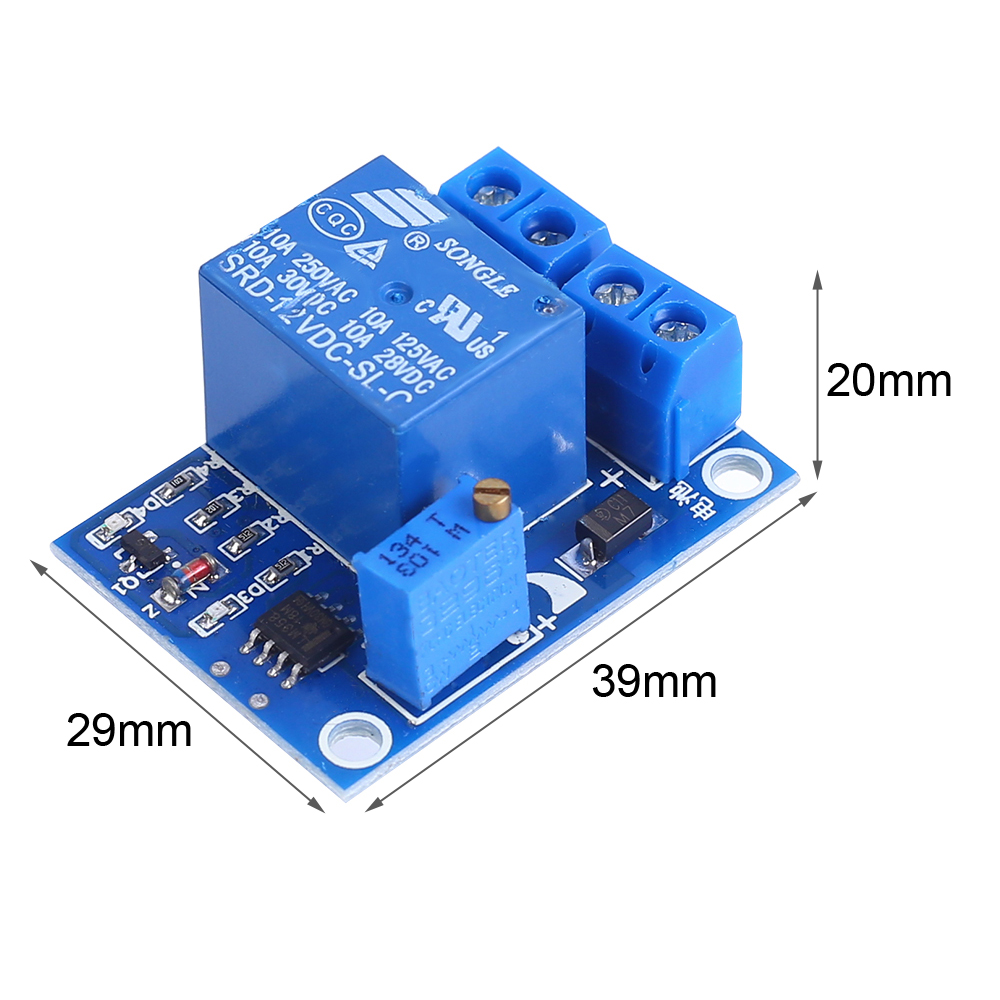

  8).Size:39*29*20mm

4.Package:
  1pcs Undervoltage Protection Switch
