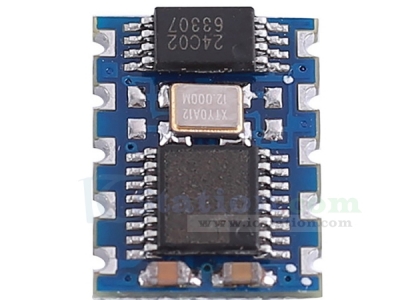

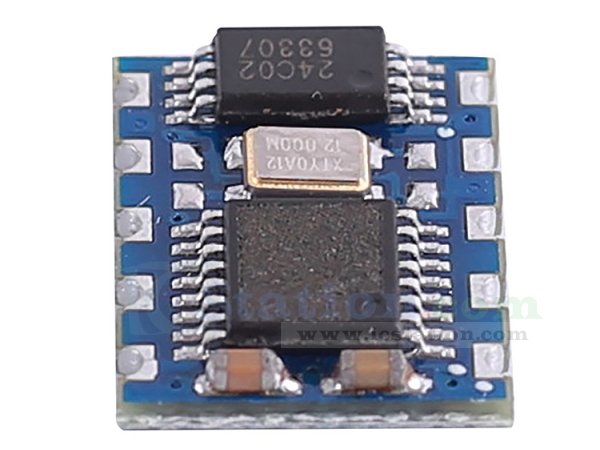

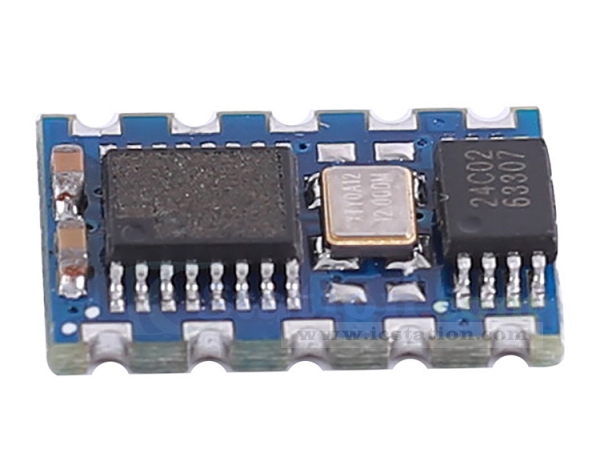

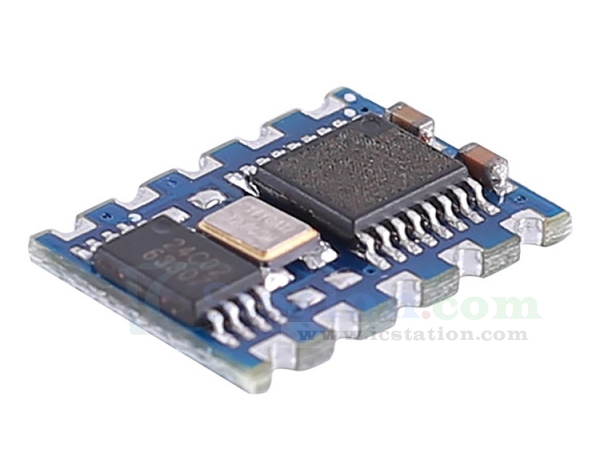

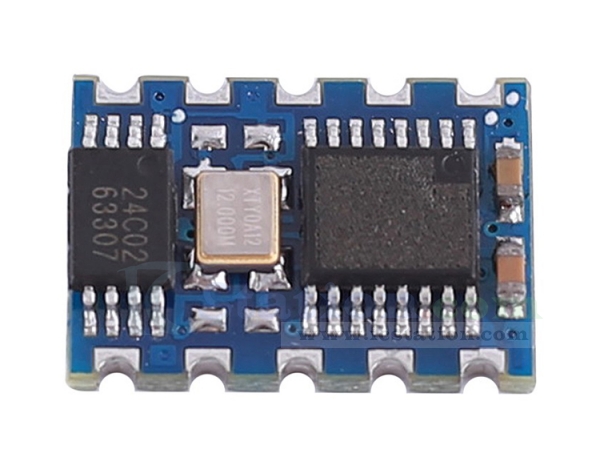

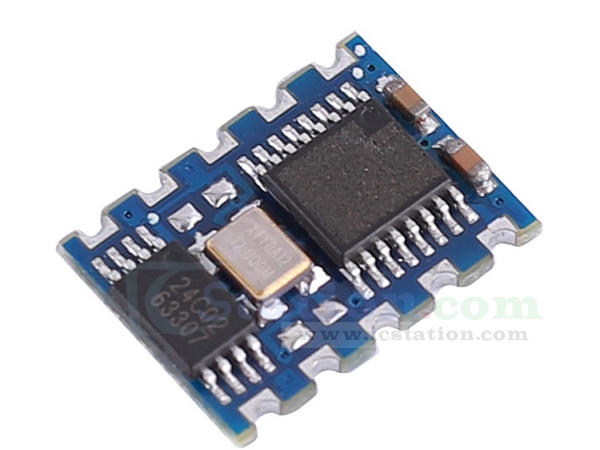

BLE4.0/4.1 Wireless Bluetooth-compatible Receiver Module RGB LED Dimmer Intelligent Lighting Controller

GY18350
5 9
$8.50 $5.95 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

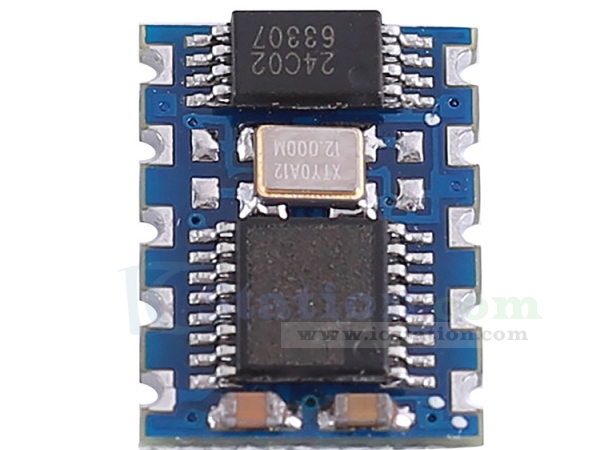

  It is a wireless bluetooth receiver module.It has 4 PWM ports,which can be used to control RGBW four color lights.With the power system,the module can be directly connected to the mobile phone APP,and control the LED light bar,colorful lights,etc.through the mobile phone drive.

2.Feature:
  1>.It can be remotely controlled by APP.
  2>.The original basic module can be freely expanded.
  3>.It has fixed mode,microphone rhythm,music rhythm and other functions.
  4>.It has small size and low power consumption.
  5>.It supports data rates of 250kbps,500kbps,1Mbps,and 2Mbps.

3.Description:
  1>.Product Name:Wireless Bluetooth Receiver Module
  2>.Bluetooth:BLE4.0/4.1
  3>.Supply Voltage:2.0V~3.6V
  4>.Power Consumption Current:15mA (working current),2uA (shutdown current)
  5>.RF Frequency:2.4GHz
  6>.PWM Working Frequency:20KHz
  7>.Work Temperature:-25℃~85℃
  8>.Work Humidity:5%~95%RH

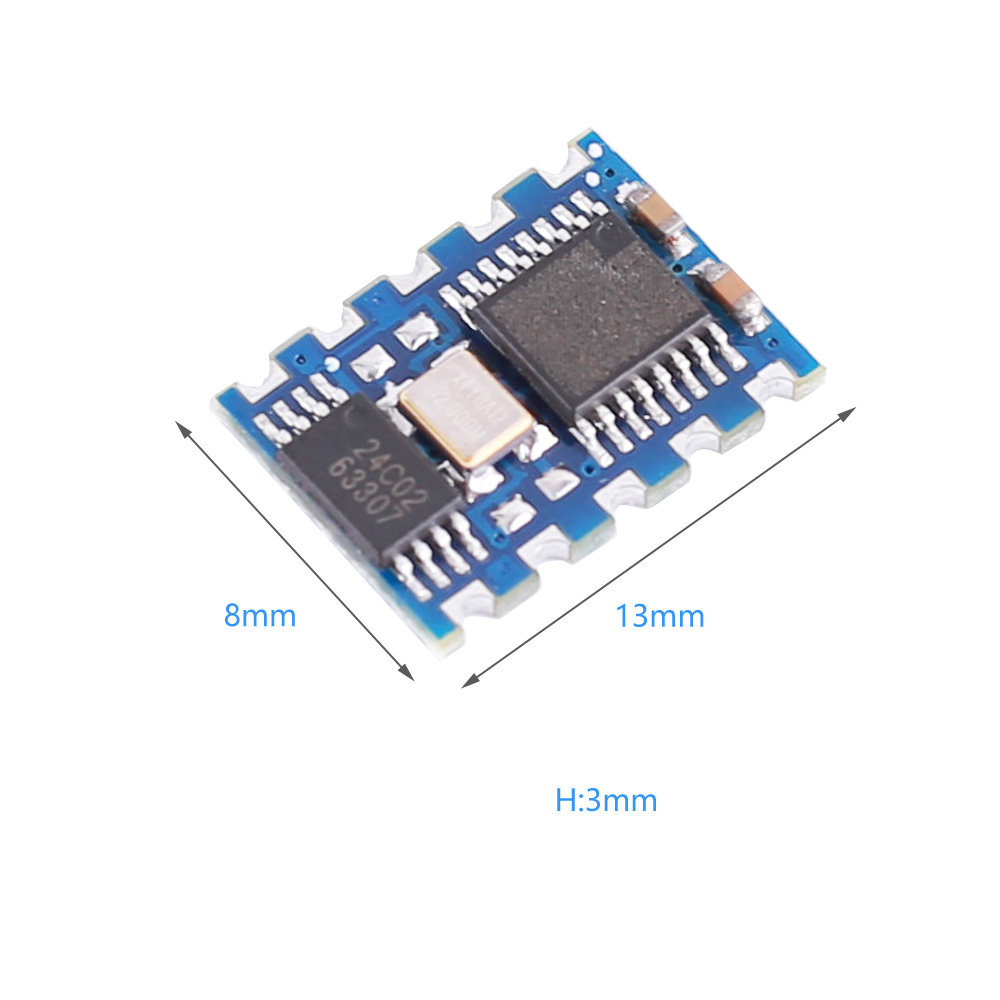

  9>.Size:13*8*3mm

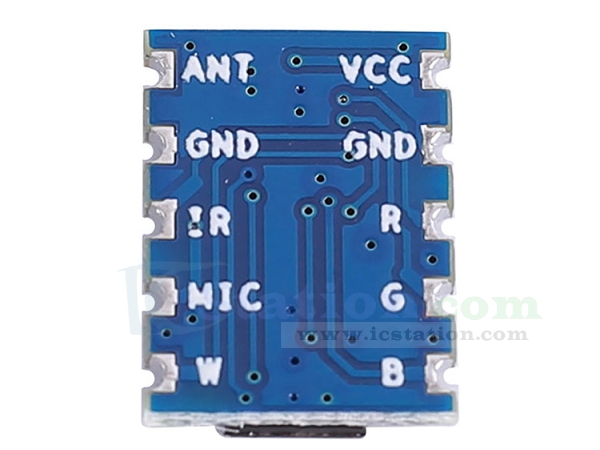

4.Pin Definition:
  1>.VDD:Power interface
  2>.GND:power ground
  3>.PWM1:PWM1 output port,corresponding to Red
  4>.PWM0:PWM0 output port,corresponding to Green
  5>.PWM3:PWM3 output port,corresponding to Blue
  6>.PWM2:PWM2 output port,corresponding to White
  7>.GP23:GPIO23,reserved IO port,no function
  8>.GP22:GPIO22,reserved IO port,no function
  9>.GND:power ground
  10>.ANT:Antenna interface

5.Package:
  1pcs Wireless Bluetooth Receiver Module
