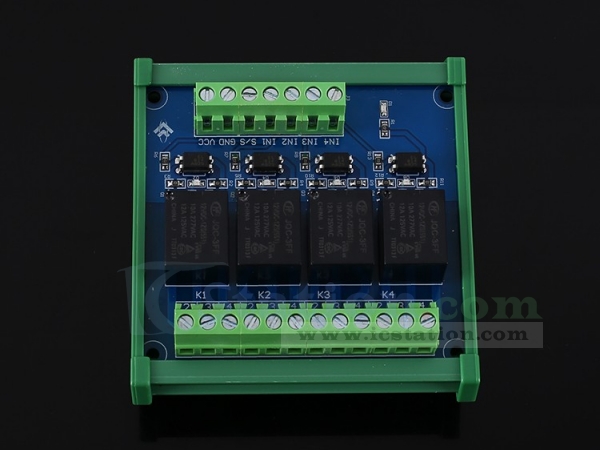

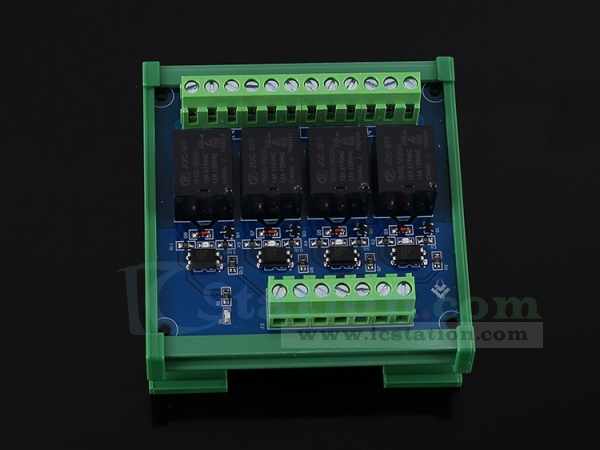

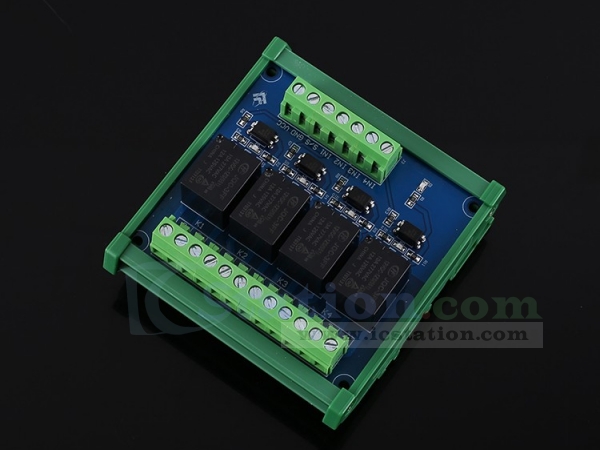

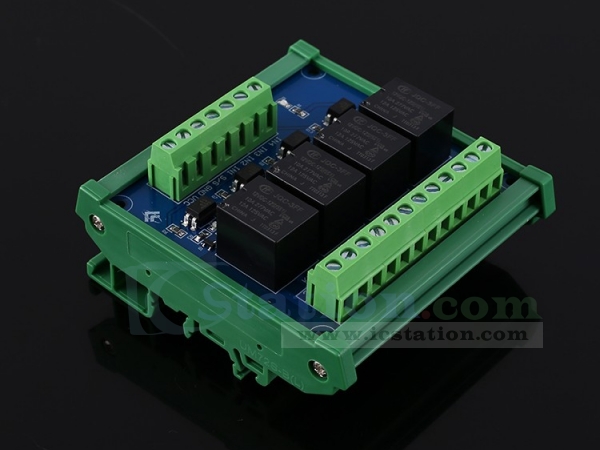

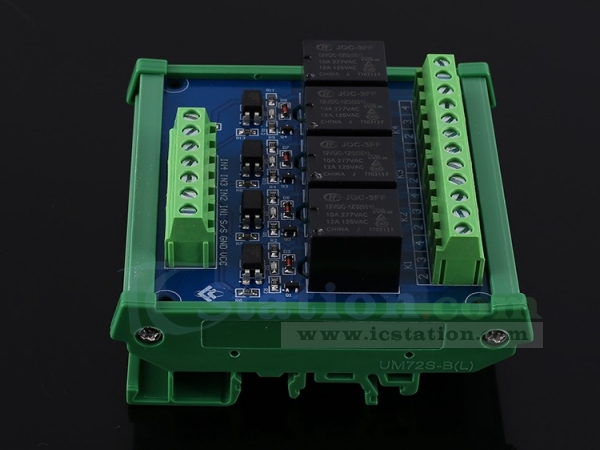

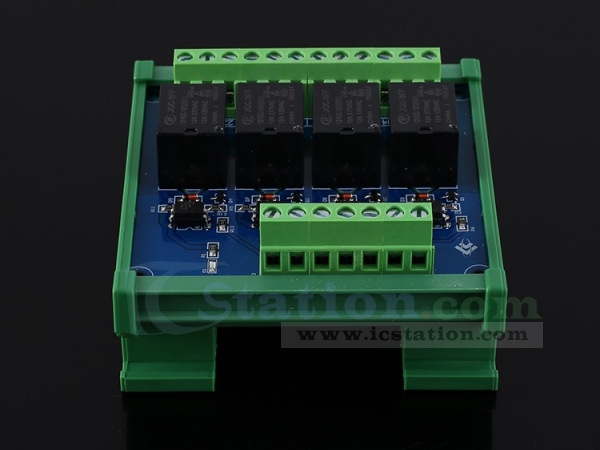

DC 12V 4-Channel Relay Module High/Low Level Trigger Optocoupler Isolator 4Bit PLC Signal Converter with Rail

GY16056
5 9
$12.99 $9.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  It is a Relay Optocoupler Isolator Driver Module. It can dirve high voltage load by low voltage input signal.

2.Feature:

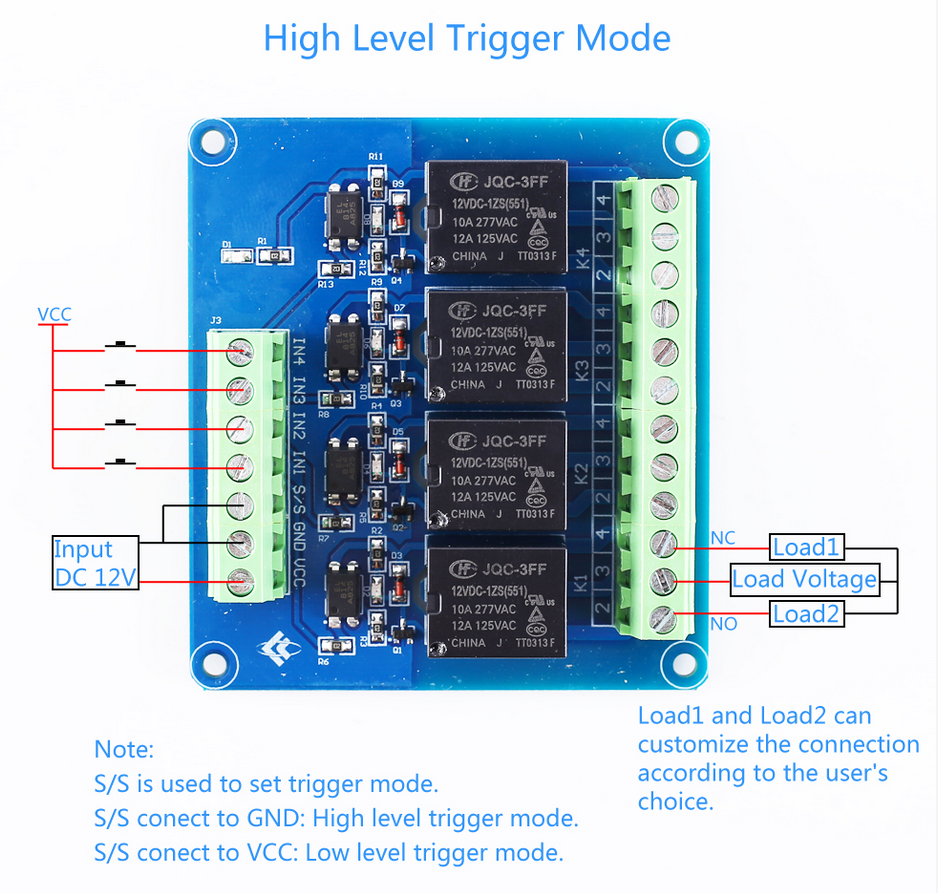

  1>.High/Low Level Trigger
  2>.LED output indicator
  3>.Optocoupler isolation

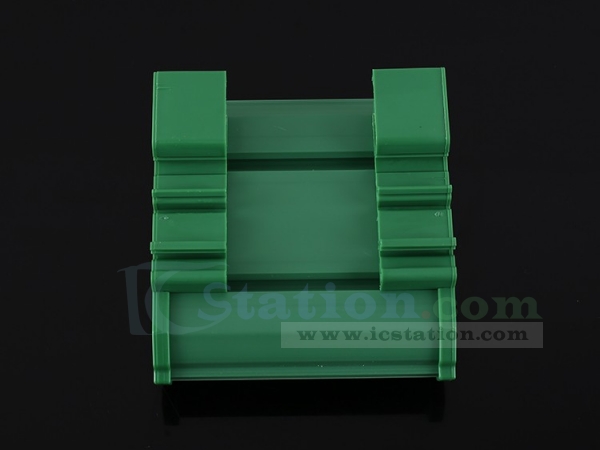

  4>.Standard DIN rail

3.Parameter:
  1>.Model: LC-Relay-PLC-4R-12V
  2>.Work Voltage:DC 12V
  3>.Work current:18.8mA
  4>.Trigger voltage:DC 12V
  5>.Trigger current:5mA
  6>.Output type:Relay output(It can not output voltage)
  7>.Load voltage:DC 30V or AC 250V(Max)
  8>.Load current:10A
  9>.Work Temperature:-25℃~85℃
  10>.Work Humidity:5%~95%RH

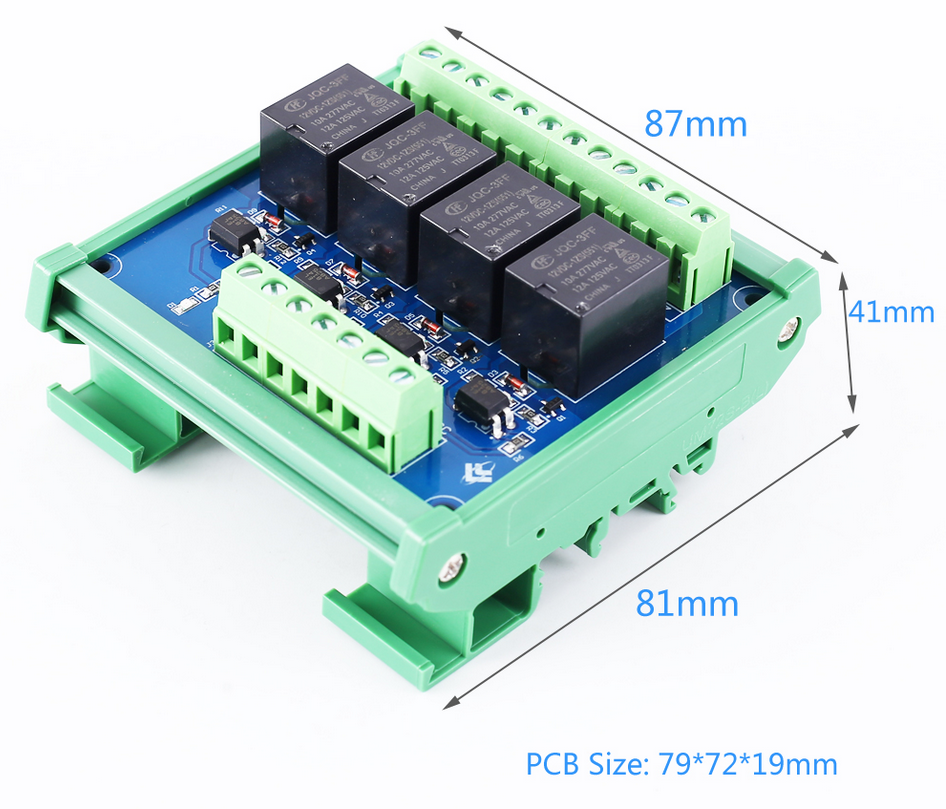

  11>.Size:87*81*41mm

4.Package:
  1pcs DC 12V 4-Channel Relay Module High/Low Level Trigger Optocoupler Isolator
