DC3.3V 5V UART 1.8in TFT LCD Display Screen 65K 128x160 RGB Programmable Display Module

1.Description:
   It is a DC 3.3V/5V UART 1.8in TFT LCD Display Screen 65K 128*160 RGB Programmable.

2.Feature:
  1>.Control drag and drop programming
  2>.Ultra wide Angle of view
  3>.Landscape and portrait switching
  4>.Backlight brightness adjustment
  5>.Support two-dimensional code interface easy editing

3.Parameter:

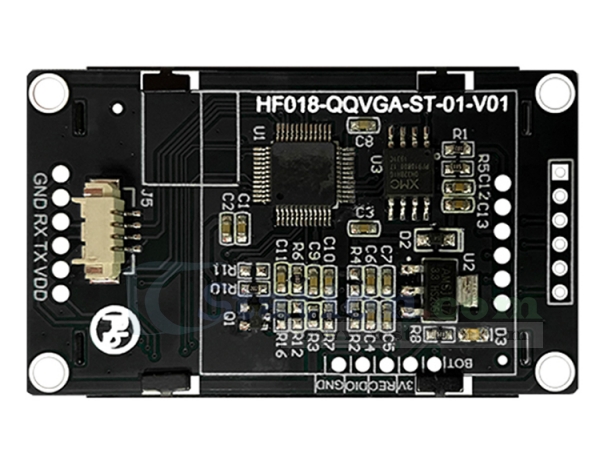

  1>.Model: HF018-QQVGA-ST-01-V01
  2>.Work voltage: 3.3V/5V
  3>.Visual Angle: 12 o'clock
  4>.Visual Area: 28.03*35.04
  5>.Communication interface: UART 1.25mm 4Pin
  6>.Resolution: 128*160
  7>.Chroma: 65K
  8>.Backlight type: WHITE LED
  9>.Image space: 2M
  10>.Work Temperature: -25℃~85℃
  11>.Work Humidity: 5%~95%RH

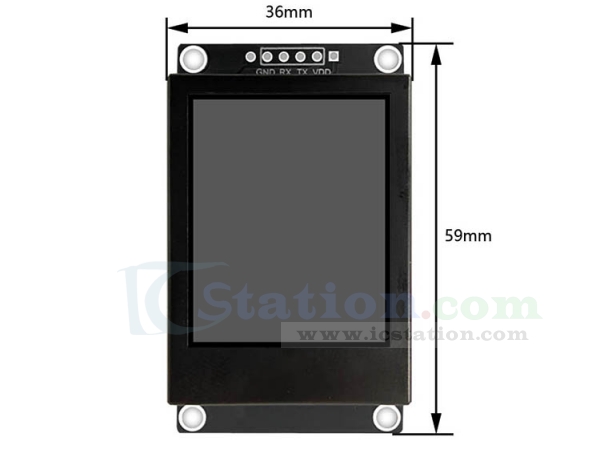

  12>.Size: 59*36*9mm

4.Package:
   1pcs DC 3.3V/5V UART 1.8in TFT LCD Display Screen

5. Document:
http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/GY20893.rar
