DC 3.7V-24V 4A LED Driver PWM Dimmer Module Stepless Potentiometer Circuit Control Board

GY20784-1
5 9
$5.59 $3.91
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:

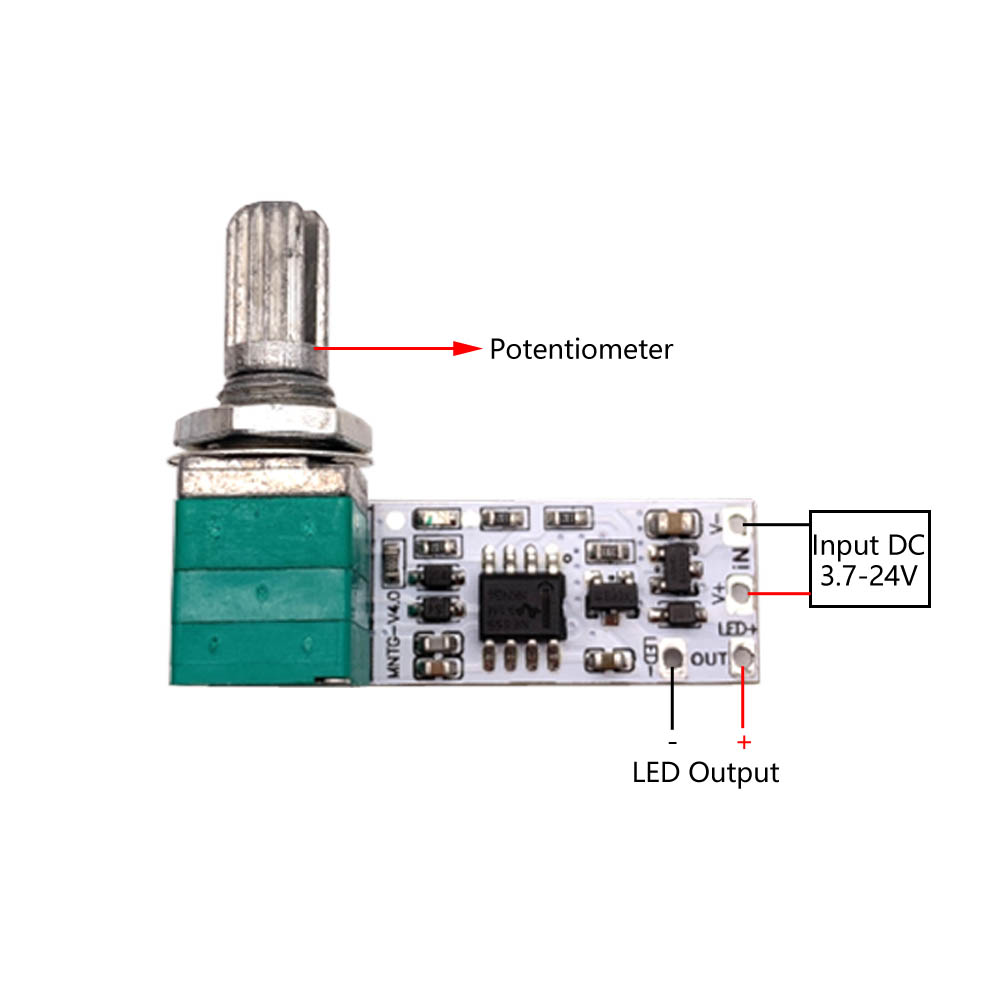

   It is a DC3.7V-24V 4A LED Driver PWM Dimmer Module Stepless Potentiometer Circuit Control Board.

2.Feature:
  1>.Smooth dimming, no stroboscopic
  2>.Constant voltage dimming, output voltage equal to input voltage
  3>.Lithium battery can drive, blue light indicator
  4>.With the switch. 0-100% range adjustable

3.Parameter:
  1>.Product name: LED Miniature constant voltage dimmer
  2>.Model: JW-MNTG-V5.0
  3>.Power supply: DC 3.7V-24V
  4>.Output voltage: DC 3.7V-24V
  5>.Load power: ≤4A
  6>.Standby power consumption: 0 power consumption in standby mode after turning off the knob
  7>.Working mode: There is constant voltage, not constant current, the load must have resistance current limit
  8>.Work Temperature: -25℃~85℃
  9>.Work Humidity: 5%~95%RH
  10>.Size: 33.6*11*12.5mm

4.Package:
  1pcs LED Miniature constant voltage dimmer
