DC 12V Dual Delay Relay Module Adjustable Time 100s-ON 100s-OFF Trigger Control Switch

GY20802-1
5 9
$6.99 $4.54
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   It is a DC 12V Dual Relay Relay Module Adjustable Time 100s-ON & 100s-OFF Trigger Control Switch.

2.Feature:
  1>.Anti-reverse protection
  2>.Wide voltage input
  3>.Double time delay relay

3.Parameter:
  1>.Model: QF-RD01B
  2>.Product name: Trigger delay Relay Module
  3>.Function: No power-on action. After triggering, delay T1, connect T2 and disconnect
  4>.Input Voltage: DC 12V
  5>.Work current: 40mA(12V)
  6>.Standby current: 6mA
  6>. Delay range: T1(delay time):0~100s, T2(connect time):0~100s
  7>.Precision of adjustment: 0.1s
  10>.Output Mode: Switching type a group of relays normally open + normally closed, no power output
  11>.Output Capacity: Normally open 15A, normally closed 10A, can control DC 0-30A or AC 0-250V
  12>.Work temperature: -40℃~85℃
  13>.Work humidity: 0~90%RH No condensation
  14>.Allowable voltage deviation: 10V~16V, The relay should not work at high temperature for a long time.

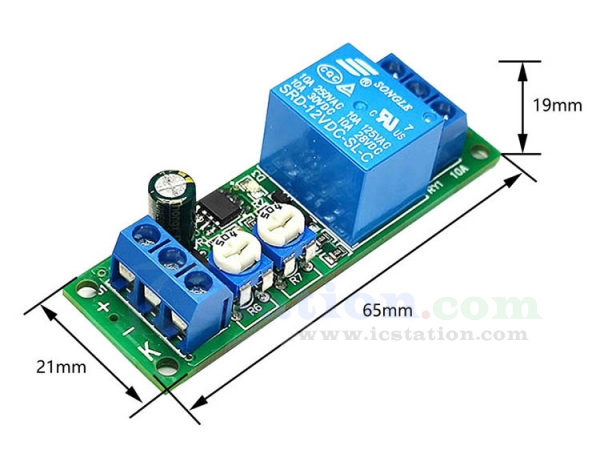

  16>.Size: 65x21x19mm

4.Package:
 1pcs Dual Relay Relay Module.
