Fingerprint Identification Control Board Relay Switch Module Access Control Lock

5 9
Contact us for wholesale price
- OR - - OR - Add to Wish List

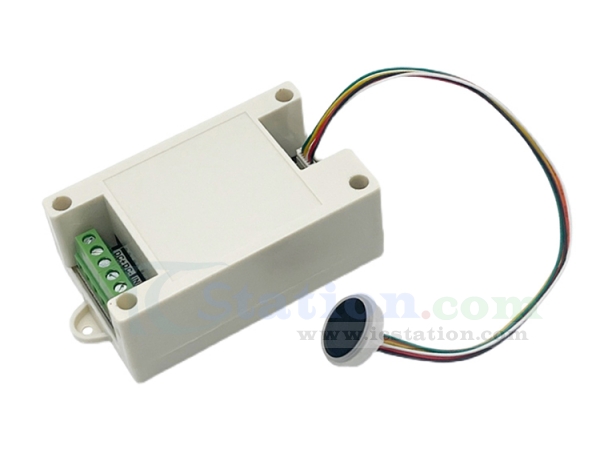

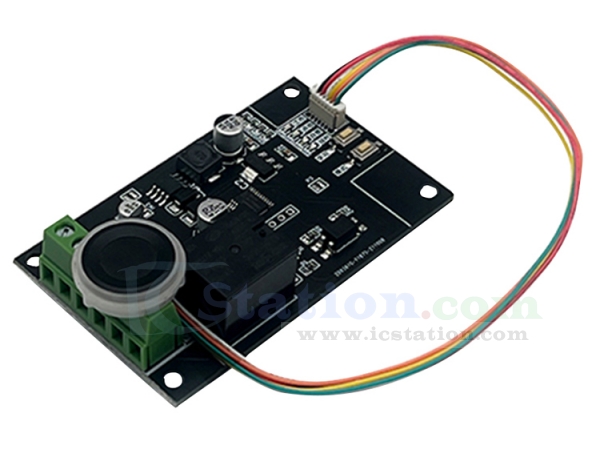

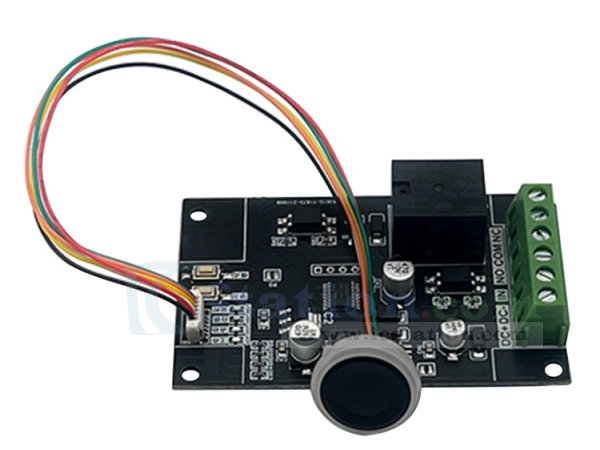

 It is a fingerprint recognition control panel.It can input 10 administrator fingerprints and 90 ordinary user fingerprints,and can freely choose the relay output working mode (jog/self-locking,delay).It is suitable for access control,car control and more.
 1).It supports 100 fingerprint storage.
 2).It has strong anti-interference ability and more stable performance.
 3).It has an LED indicator,which can be used to understand the working status of the product by observing the indicator.
 4).It has fast identification and high security,and is widely used in smart door locks,drawer locks,identification,embedded biological touch and other fields.
 1).Product Name:Fingerprint Identification Control Panel
 2).Input Voltage:DC 7V-30V
 3).Output Mode:relay
 4).Output Current:10A
 5).Standby Current:30mA
 6).Fingerprint Collection:100 pieces (MAX)
 7).Input Method:fingerprint/manual
 8).Output Mode:jog/self-locking/delay
 9).Fingerprint Head Size:opening diameter 19mm
 10).Work Temperature:-20℃~50℃
 11).Work Humidity:5%~95%RH
4.Product Operation Instructions:
 1).LED work indicator identification:
  1.1).The working indicator is always on to indicate that the relay is on,and it is always off to indicate that the relay is off.
  1.2).The working indicator flashes 2 times in a row,indicating that the fingerprint verification fails.
  1.3).The working indicator flashes continuously for 5 times to indicate that the fingerprint has been cleared.
 2).Explanation of fingerprint status (fingerprint head indicator):
  1.1).The red light is on:no fingerprint status in standby/authentication of user or administrator failed.
  1.2).The blue light is on:there is a fingerprint status in standby / when the fingerprint is entered,it means the acquisition is successful.
  1.3).The green light is on:the unlock verification is successful / when the fingerprint is entered,the entry is successful / when the fingerprint is deleted,the administrator is successfully verified.
  1.4).The purple light is on:Waiting to verify the administrator
  1.5).The white light is on:waiting for continuous entry of management fingerprints
  1.6).The yellow light is on:waiting for the user's fingerprint to be entered continuously
5.Parameter Setting Analysis:
 1).Standby state:
  1.1).No fingerprints:red is always on.
  1.2).With fingerprints:blue is always on,after successful verification,green unlocks.
 2).Entry fingerprint:
  1.1).No fingerprint status:short press the learning button,the white is always on,and the administrator fingerprint is continuously entered.
  1.2).With fingerprint status:short press the learning button,purple flashes,after the administrator is successfully verified (green light is on),the white light is always on,and the administrator fingerprint is continuously entered.
  1.3).White always on:Continuously enter administrator fingerprints,up to 10.Short press the learning button again,and the yellow is always on:Continuously enter user fingerprints,up to 90 fingerprints.Short press the learning button again to exit the setting,and the blue is always on.
  1.4).Note:When the fingerprint is entered,the finger should not be released.
     Blue means the acquisition is successful,and it turns green after 2 successful acquisitions to indicate that the entry is successful,and red means that the entry is successful,and the fingerprint can be re-entered by pressing it again.
     Note:The same fingerprint is entered into the administrator and the user cannot use the administrator authority,and can only be regarded as a common user.
 3).Delete fingerprint:
  1.1).Press and hold the learning button for 5 seconds,and the purple flashes.After the administrator is successfully verified,the green light is on to indicate that the clearing is successful.At this time,the red light is always on without fingerprints.
  1.2).When the purple flashes,short press the learning key to exit the deletion.
 4).Mode selection:
  1.1).Press and hold the mode button for 1 second to switch the mode (jog,self-lock,delay),and the corresponding LED light will be on.
  1.2).The IN signal can directly control the relay first,no fingerprint verification is required,and the mode corresponds to (jog,self-lock,delay)
  1.3).Note:Delay disconnection time is fixed 2s.
  The relay is a contact output,a switch signal,and no voltage output.The relay output contact can be regarded as a mechanical switch.This switch can be connected to an external 5V voltage or an external AC220V voltage.
7.Usage Scenarios:
 1).Smart door lock
 2).Drawer lock
 4).Embedded biological touch
 5).Safe/box door lock
 6).Access control system
 7).Fingerprint identification terminal
 1).1pcs Fingerprint Identification Control Board
 2).1pcs Fingerprint Head
 3).1pcs 6P Cable
