MAX31855 Thermocouple Module DC 3V-5V Temperature Sensor SPI Interface High-speed Transmission

GY19778
5 9
$5.99 $4.19 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

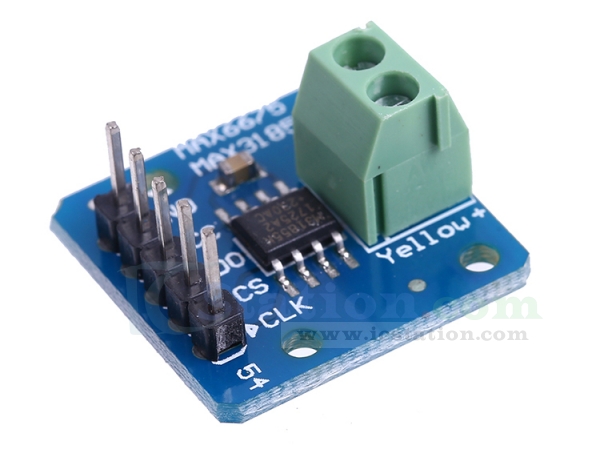

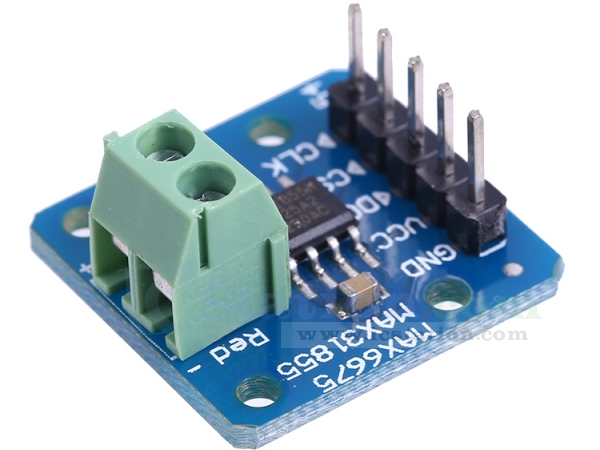

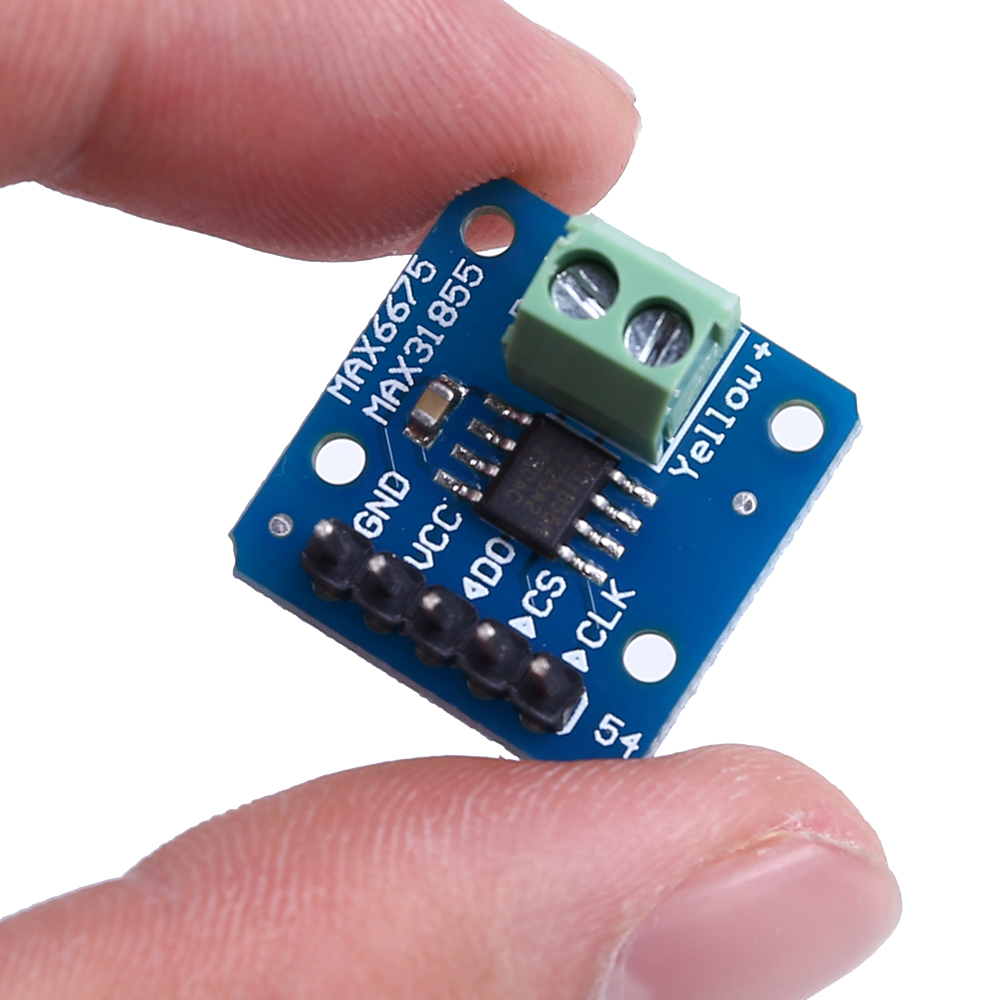

 It is a MAX31855 thermocouple module.It has cold junction compensation and converts K,J,N,T or E thermocouple signals into digital quantities.

2.Feature:
 1).Output 14-bit signed data,output in read-only format through SPITM compatible interface.
 2).The temperature resolution accuracy of the converter is as high as 0.25℃.
 3).Its temperature reading range is wide,the highest temperature reading is +1350℃,and the lowest temperature reading is -270℃.
 4).For K-type thermocouples,the temperature range is -200℃ to +700℃,keeping +/-2℃ accuracy.
 5).It directly outputs the temperature value digitally without an amplifier or ADC.

3.Parameter:
 1).Product Name:MAX31855 Thermocouple Module
 2).Measuring Temperature Range:-200℃-1350℃

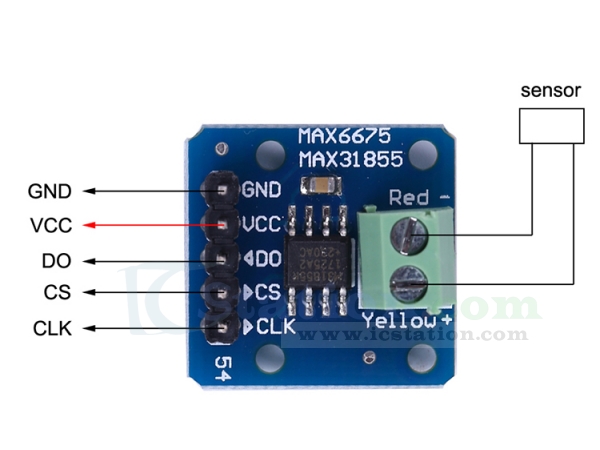

 3).Applicable Probe:K-type thermocouple (need to be purchased separately)
 4).SPI Interface:high-speed transmission
 5).Input Voltage:DC 3V-5V
 6).Resolution:14 bits
 7).Temperature Accuracy:0.25℃
 8).Work Temperature:-25℃~85℃
 9).Work Humidity:5%~95%RH

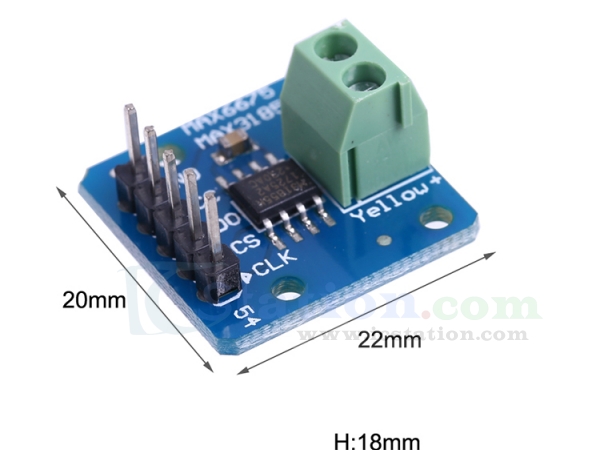

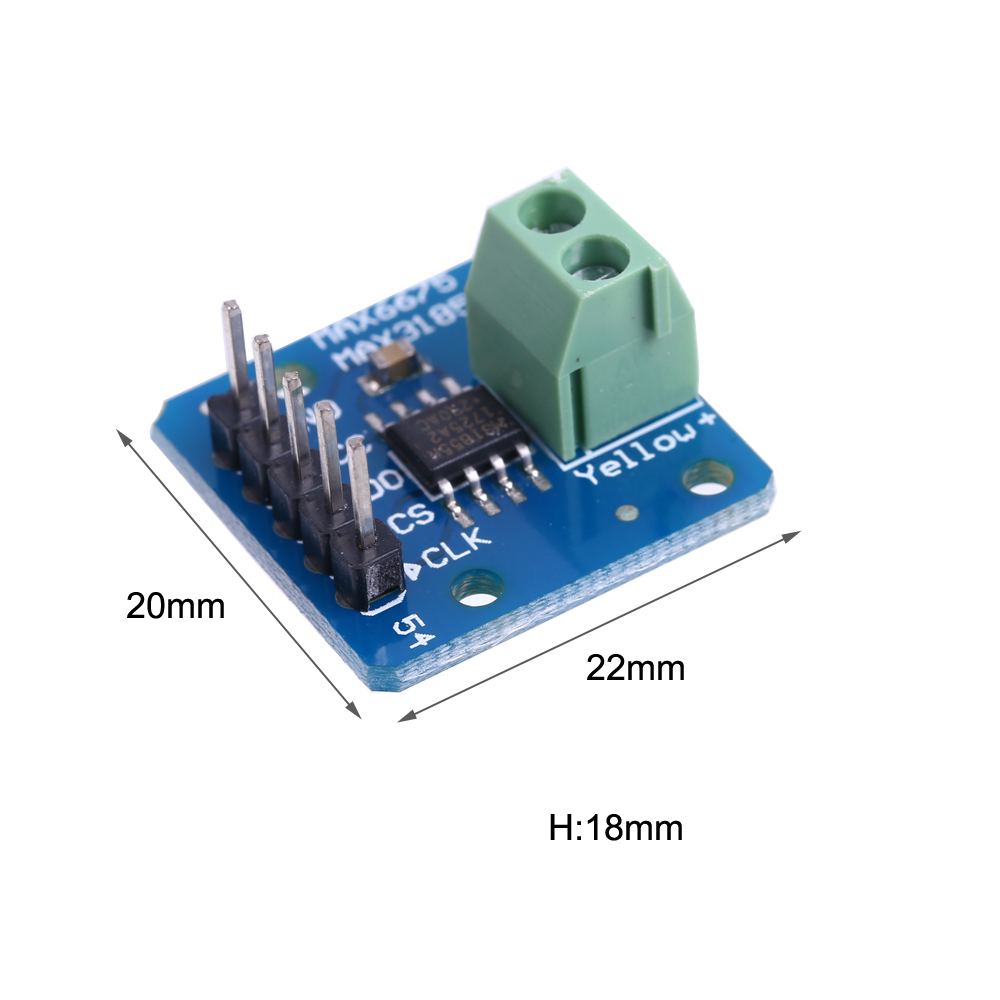

 10).Size:22*20*18mm

4.Package:
  1pcs MAX31855 Thermocouple Module
