Smart Car Intelligent Robot Tracking Car D2-5 Soldering DIY Kits DC Motor Electric Accessories for Electronics Competition

$5.19
$7.9935%
Quantity5+15+30+50+60+
Price$5.35$5.10$4.85$4.60$4.20
00d : 00h : 00m : 00s
Item ID: 10168

Product Details

Introduction:
  Smart DIY robot car is the most widely used in school for helping students to learn about the soldering project knowledge of mechanical structure, electronic basis skills, the principle of sensor, automatic control, soldering skill and so on.

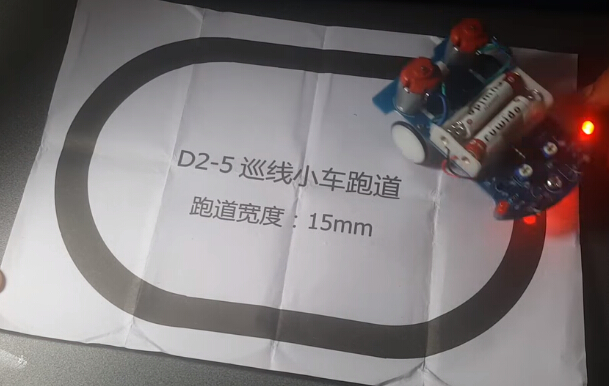

There is a 16 mm wide black runway in the white field. Our tracking car can drive along the black runway automatically.
No matter how the runway is bent, the car can be driven automatically. We all know that the reflectivity is different when the light source to the white objects and black objects. Here we use red light source.
The light is reflected through the ground to the photoresistor. By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.
If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.  Drive the car in the opposite direction so that the car is always running along the runway.

Tips:
  1.We provide pdf English installation manual with steps-by-steps and make it easier to assemble for teenagers, begginers and hobbyist.
  2. You can also use the 1.5~2.0 cm black electrical tape directly on the ground to design the complex runway. It would be even more fun!
Parameter:
  Name: D2-5 Intelligent Tracking Car DIY Kit
  PCB Size:104x72x1.6mm
  Installation dimension:104x72x55mm
  Work Voltage:3V

Operating Principle Picture:

Packing List:

NO. Component Name PCB Marker Parameter Quantity Remarks
Electronic Component
1 LM393 IC1 DIP-8 1
2 IC Socket IC1 DIP-8 1
3 Electrolytic Capacitor C1,C2 100uF 2
4 Potentiometer R1,R2 10K 2
5 Metal Film Resistance R5,R6,R11,R12 51ohm 4
6 Metal Film Resistance R7,R8 1K 2
7 Metal Film Resistance R9,R10 10ohm 2
8 Photoresistor R13,R14 CDS5 2
9 Red LED D1,D2 5mm 2 Red Shell,Red Light
10 White LED D4,D5 5mm 2 White Shell,Red Light
11 S8550 Q1,Q1 TO-92 2
12 Self-Locking switch S1 6*6mm 1
Mechanical Part
13 DC Motor M1,M2 JD3-100 2
14 Wheel   24mm 2
15 Tires   24mm 2
16 Axle   D2*30mm 2
17 Gasket   D2.0mm 6 Non-essential
18 Three-way sleeve   D2.5mm 4
19 Gear   D22mm 2
20 Worm   D5mm 2
21 Screw   D2.2*8mm 4
22 Motor Screw(Black)   D1.7*4mm 4
23 Gaster Screw   M5*20mm 1
24 Gaster Nut   M5 1
25 Gaster Screw Cap   M5 1
Other Component
26 Cable   6mm 4
27 Battery Case   AA*2 1 With adhesive
28 PCB   D2-5 1 104*72*1.6mm

Component Description:

1>.1pcs LM393 DIP-8
2>.1pcs IC Socket DIP-8
3>.2pcs 100uF Electrolytic Capacitor
4>.2pcs 10K Potentiometer
5>.4pcs 51ohm Metal Film Resistance
6>.2pcs 1K Metal Film Resistance
7>.2pcs 10ohm Metal Film Resistance
8>.2pcs Photoresistor
9>.2pcs 5mm Red LED
10>.2pcs 5mm White LED
11>.2pcs TO-92 S8550
12>.1pcs 6*6 Self-Locking switch
13>.2pcs DC Motor
14>.2pcs Wheel
15>.2pcs Tires
16>.2pcs Axle
17>.6pcs Gasket(Non-essential)
18>.4pcs Three-way sleeve
19>.2pcs Gear
20>.2pcs Worm
21>.4pcs Screw
22>.4pcs Motor Screw(Black)
23>.1pcs Mecanum wheels Screw
24>.1pcs Mecanum wheels Nut
25>.1pcs Mecanum wheels Screw Cap
26>.4pcs 6mm Cable
27>.1pcs AA*2 Battery Case(Not shown in the picture)
28>.1pcs PCB

Finished Kit for reference:
Note: Package does not contain battery, the picture is only for demonstration effect.



Please Clik here to download installation manual:


Tested by ICStation's Outstanding Partner Easy arduino projects:











Learn More Details in the Video:
