Home > Sensor Module > Infrared Module > DC 5V-24V PIR Motion Sensor Switch

DC 5V-24V PIR Motion Sensor Switch

GY19883
5 9
$8.75 $6.13 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:
  It is a PIR motion sensor switch. It can sense the movement of the human body and respond accordingly to make the connected load work.

2.Feature:
  1).It uses flame-retardant materials,and excellent flame-retardant materials can effectively prevent fire hazards.

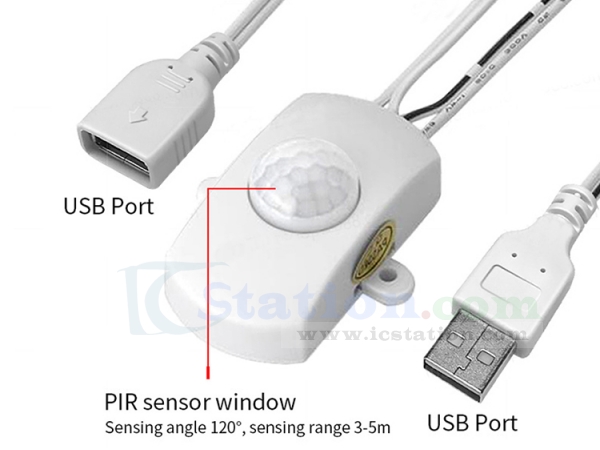

  2).It uses a Fresnel lens, which has 120° high sensitivity and no blind spot detection.
  3).It can focus on the energy of moving objects.

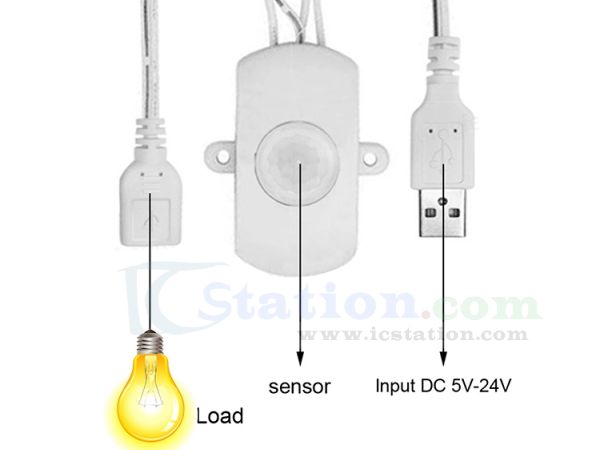

  4).It uses USB header male and female terminals for wiring,which is easy to install and quick to use.
  5).It can delay shutdown and supports custom 15-360 second adjustment.

3.Parameter:
  1).Product Name:PIR Motion Sensor Switch
  2).Working Voltage:DC 5V-24V
  3).Shell Material:ABS
  4).Installation Height:1.8-2.5M
  5).Detection Distance:3-5M
  6).Detection Range:120°
  7).Standby Current:100uA(Max)
  8).Time Delay:15s
  9).Power Consumption:0.5W(Max)
  10).Power Frequency:50/60Hz
  11).Rated Load:4A
  12).Work Temperature:-20℃~50℃
  13).Work Humidity:5%~95%RH

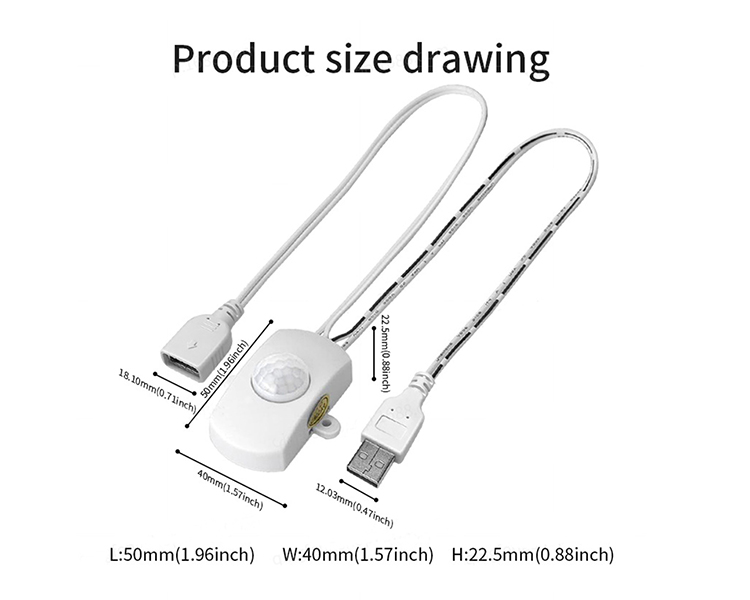

  14).Size:50*40*22.5mm

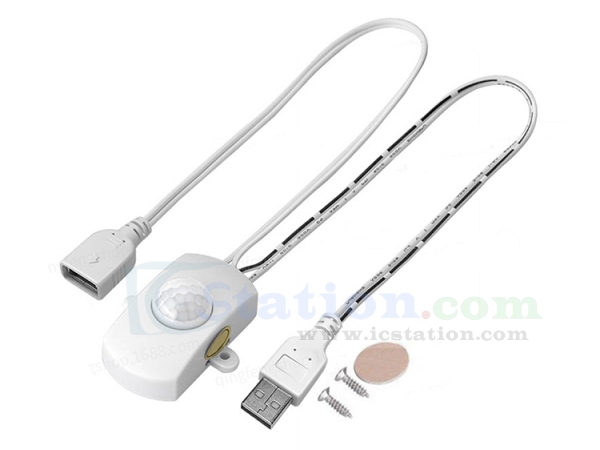

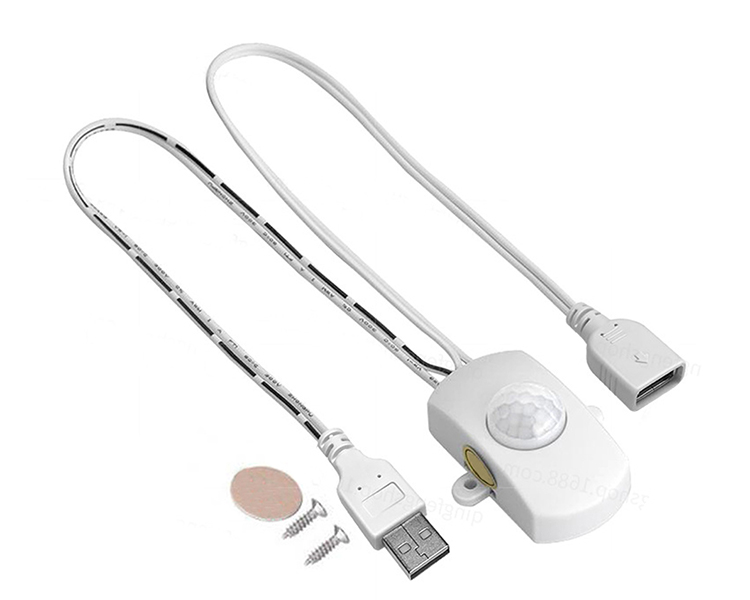

4.Package:
  1).1pcs PIR Motion Sensor Switch
  2).2pcs Screw
  3).1pcs Round Sticker
