2.4G NRF24L01+PA+LNA Wireless Transceiver Module 20dBm 1100meter SPI Transmitter Receiver DC 3.0V-3.6V

GY18374
5 9
$19.99 $14.79 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

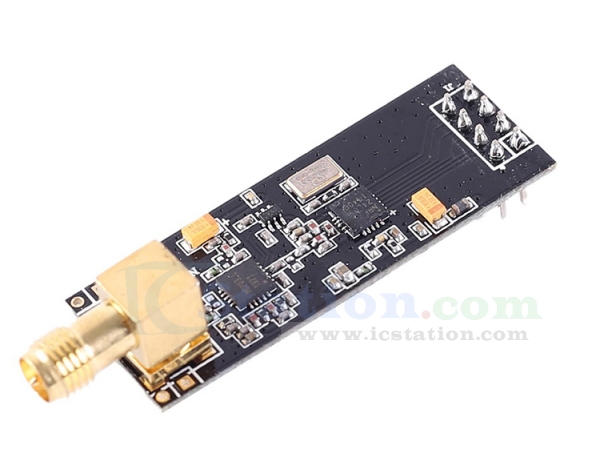

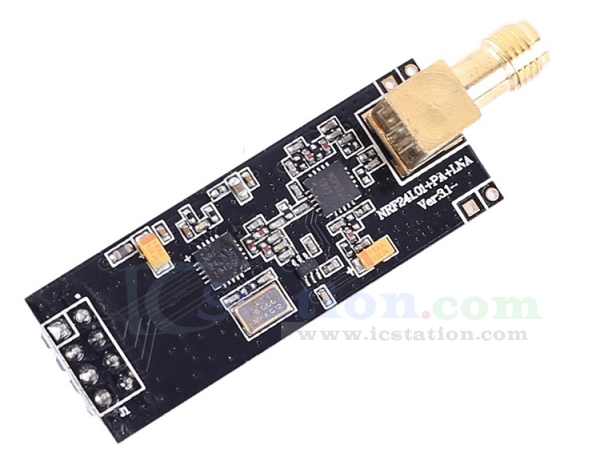

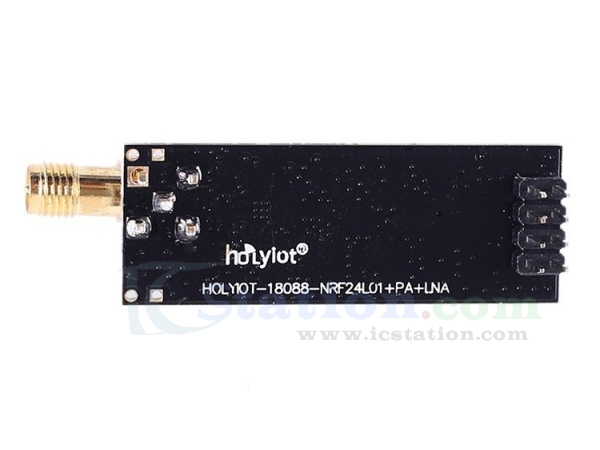

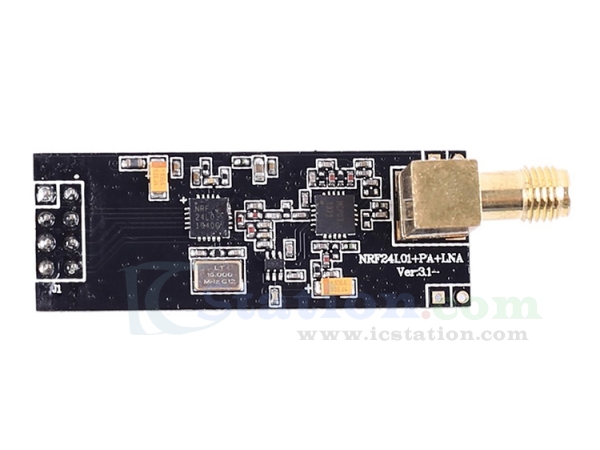

  It is a wireless transceiver module.This module is a highly integrated low-power ULP 2.4GHz ISM frequency band 2Mbs wireless RF transceiver solution based on the Nordic nRF24L01+ chip design.The chip's peak RX/TX transmit and receive current is less than 14mA,and it has a super power management system,so that the battery life can be from several months to one year,enhanced the shockBurst hardware protocol,and supports SPI interface,and There are no external loop filters and resonators.Note that you need to prepare the antenna yourself.

2.Feature:
  1>.Power amplifier
  2>.Low noise amplifier
  3>.Standard SPI communication
  4>.1100m ultra long-distance communication
  5>.Low power consumption,long battery life

3.Parameter:
  1>.Product Name:Wireless Transceiver Module

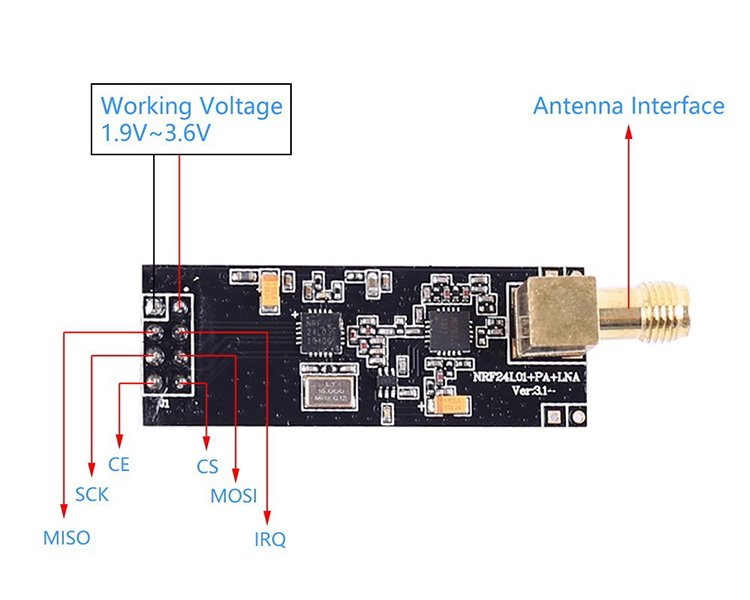

  2>.Working Voltage:1.9V~3.6V
  3>.Protocol:2.4Ghz
  4>.Modulation Method:GFSK
  5>.Receiving Sensitivity:-94dBm(250kbps),-82dBm(2Mbps),-85dBm(1Mbps)
  6>.Frequency:2.360Ghz~2.500Ghz
  7>.Modulation Method:GFSK@1Mbps,2Mbps,250kps
  8>.Transmit Power:+20Max
  9>.Deep Sleep Current:900nA
  10>.TX Transmit Current:11.3mA
  11>.RX Receiving Current:13.3mA
  12>.Work Temperature:-40℃~80℃
  13>.Work Humidity:5%~95%RH

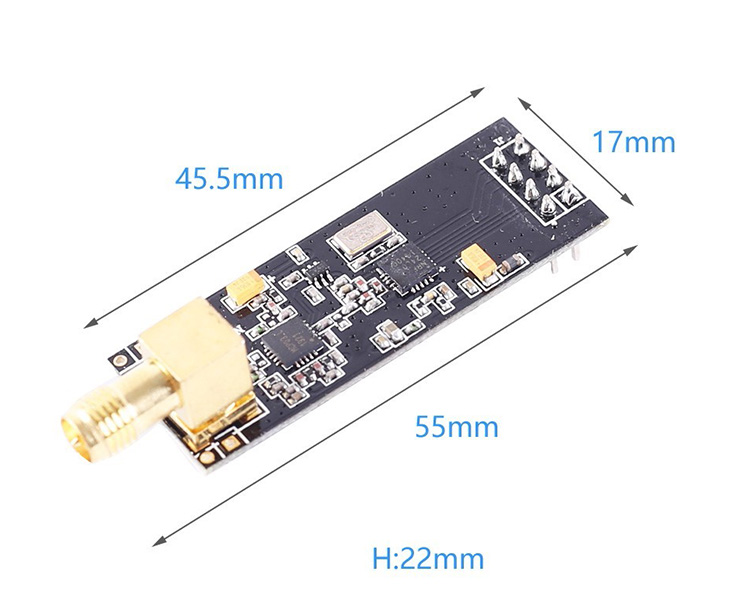

  14>.Size:55*17*22mm

4.Package:
  1pcs Wireless Transceiver Module
