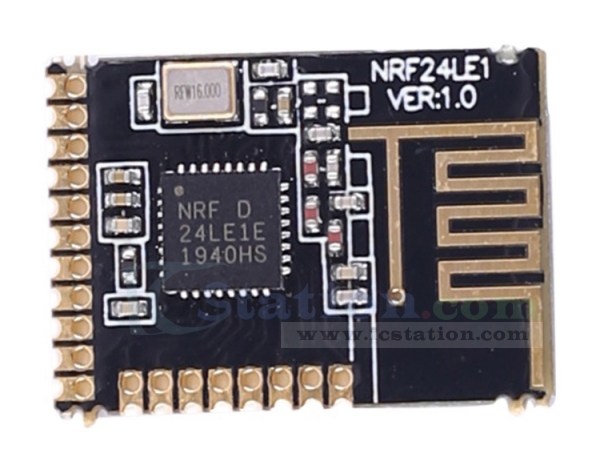

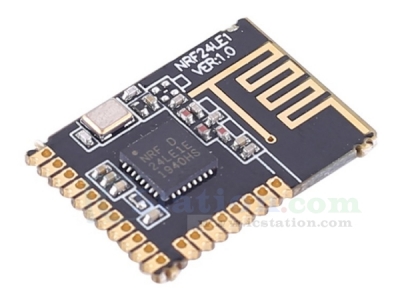

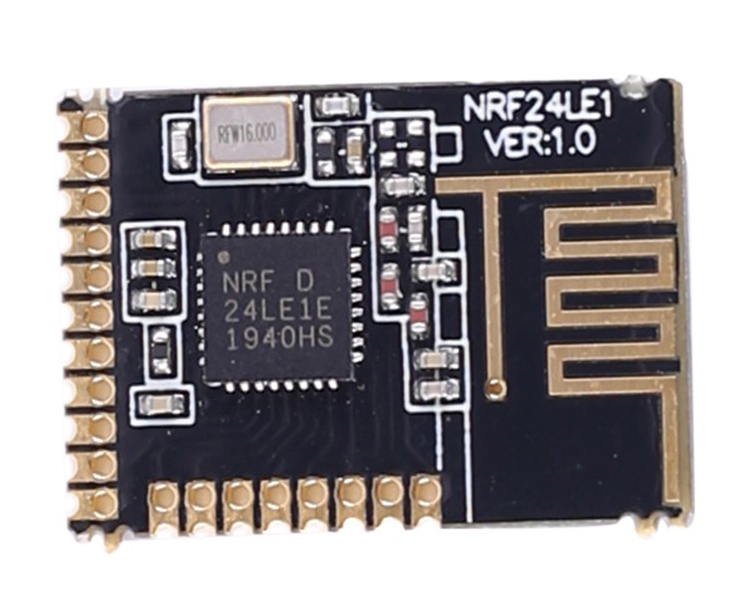

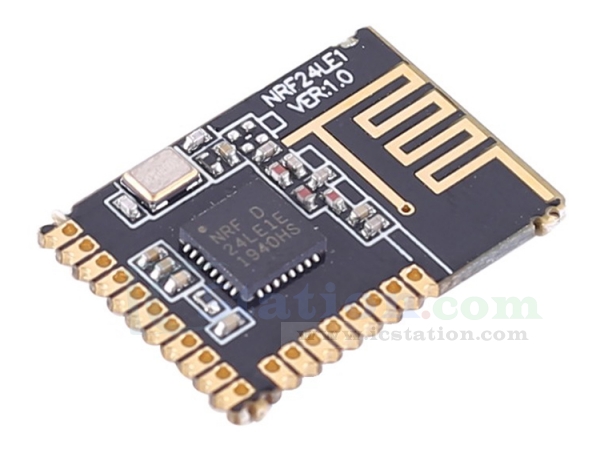

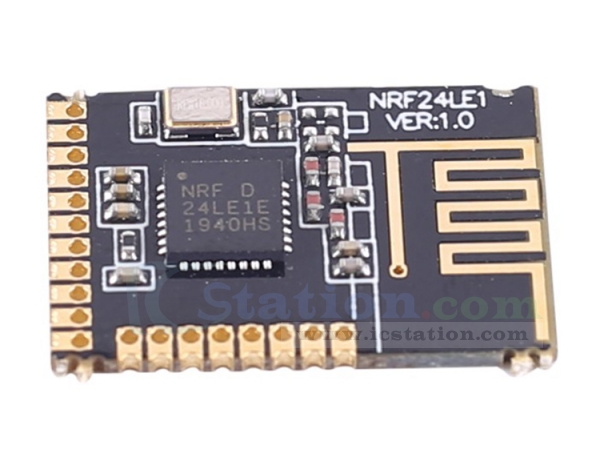

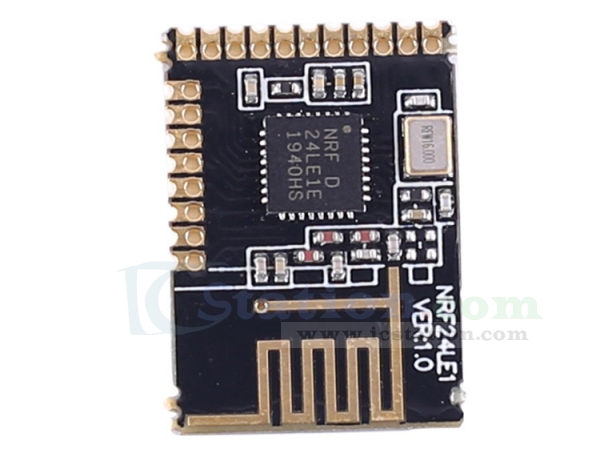

2.4G NRF24LE1 Wireless Transceiver Module 3.3V SPI Transmitter Receiver

GY18376
5 9
$9.99 $5.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  It is a 2.4G NRF24LE1 wireless transceiver module.It adopts the latest wireless and ultra-low power consumption technology,and integrates a single-chip Flash chip including 24GHz wireless transmission,enhanced 51 Flask high-speed microcontroller,rich peripherals and interfaces,etc.It is a perfect combination of comprehensive performance and cost.It is very suitable for the design of various 2.4GHz products.

2.Feature:
  1>.Embedded 2.4Ghz low-power wireless transceiver core nRF24L01P,250kbps,1 Mbps,2Mbps air rate.
  2>.High-performance 51 cores (12 times the industry standard 51 speed),16 kbytes Flash,1kbyte,data RAM,1 kbyte NV data RAM.
  3>.Abundant peripheral resources,built-in 128 bitAES hardware encryption,32-bit hardware multiplication and division coprocessor,6-12 bit ADC,two-channel PWM,I2C,UART,hardware random number generator,WDT,RTC,analog comparator,etc.
  4>.Provide QFN24,QFN32,QFN48 multiple packages for flexible application options.
  5>.Flexible and efficient development methods are powerful tools and platforms for developing wireless peripherals,RFID,and wireless data transmission.

3.Parameter:
  1>.Product Name:2.4G NRF24LE1 Wireless Transceiver Module
  2>.Communication Method:SPI
  3>.Working Frequency:2450MHz
  4>.Working Voltage:3.3V
  5>.Work Temperature:-25℃~85℃
  6>.Work Humidity:5%~95%RH

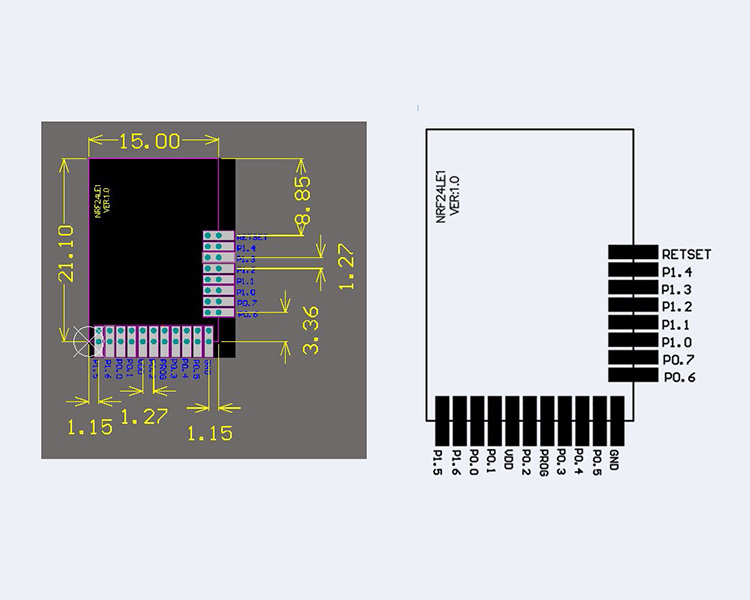

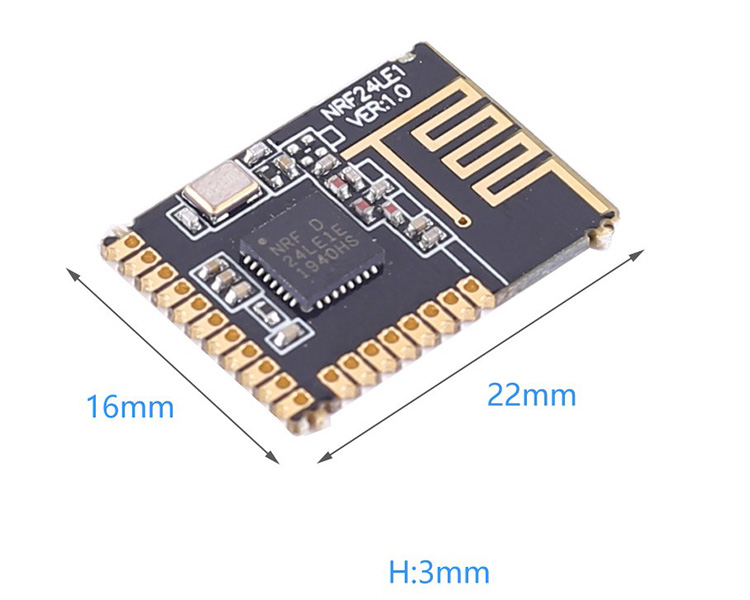

  7>.Size:22*16*3mm

4.Application:
  1>.Wireless mouse
  2>.Remote control
  3>.Wireless keyboard
  4>.Medical parameter monitoring
  5>.Wireless joystick
  6>.Wireless voice
  7>.Industrial control and wireless data acquisition

5.Package:
  1pcs 2.4G NRF24LE1 Wireless Transceiver Module
