Home > Power Module > Step Down Module > DC-DC Step-Down Module Adjustable Synchronization Charging Stabilized Power Supply Module

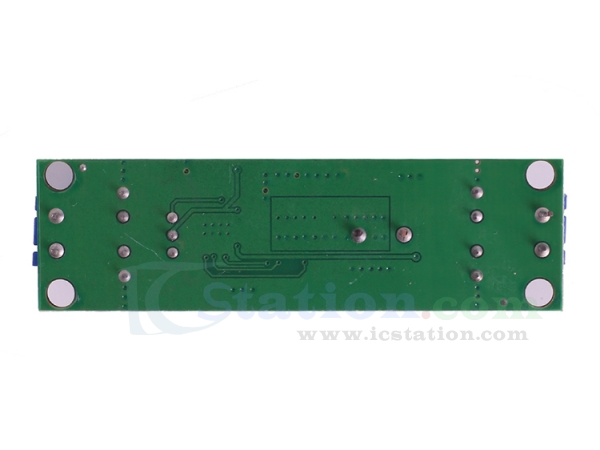

DC-DC Step-Down Module Adjustable Synchronization Charging Stabilized Power Supply Module

GY20007
5 9
$8.99 $6.29 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

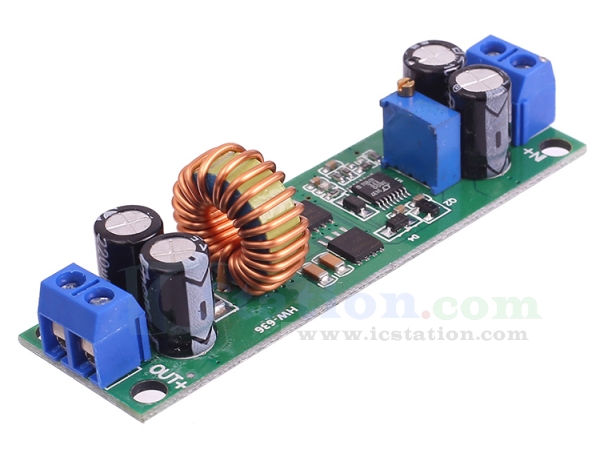

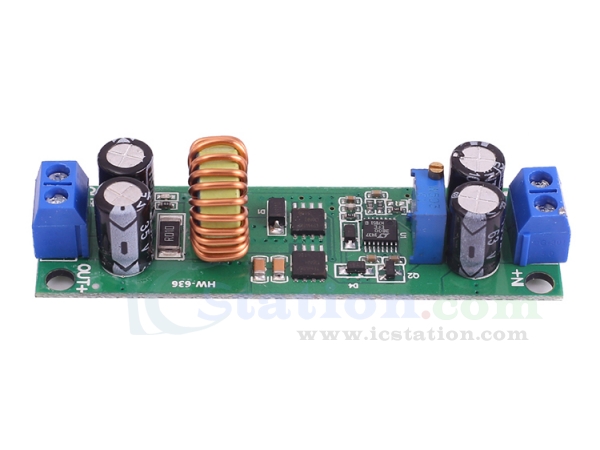

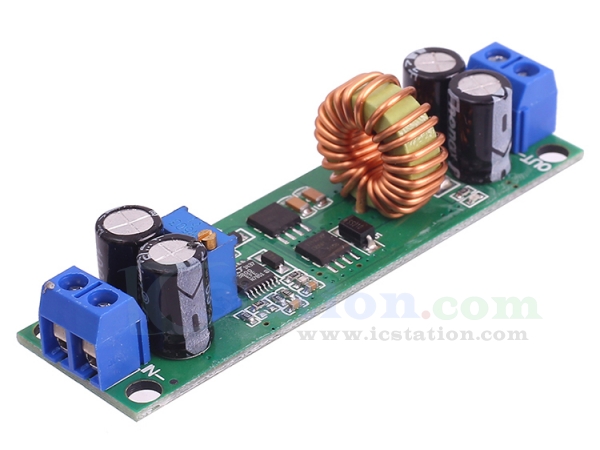

  Adjustable synchronous step-down module, Vehicle charging stabilized power supply
  It can output DC 6.5V-48V input voltage into DC 1.25V-30V voltage.
  Its output voltage can be adjusted within the specified range according to one's own needs.

2.Feature:
  1).Its conversion efficiency is high,up to 97%.

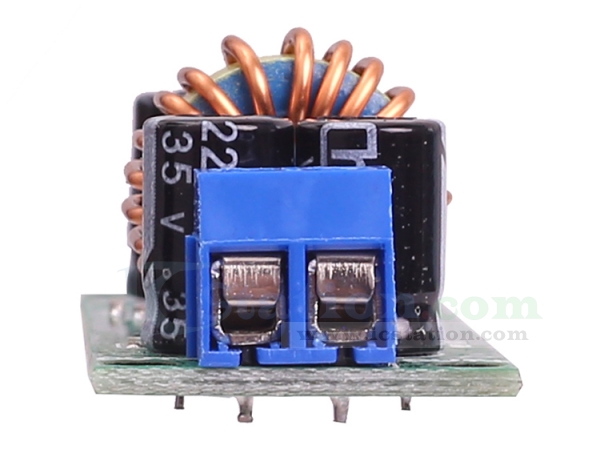

  2).It uses terminal blocks and does not need to be soldered.
  3).Its load capacity can reach up to 7A.

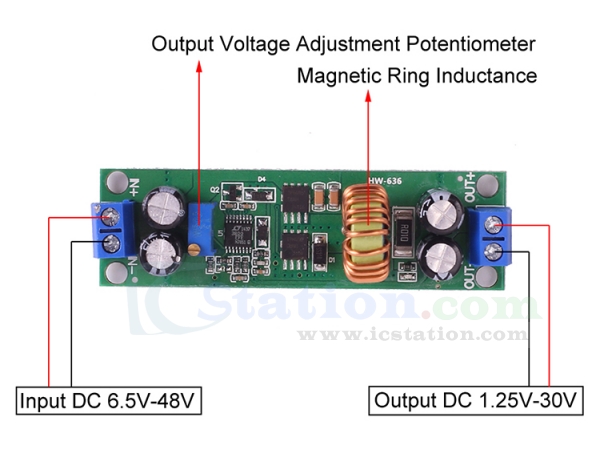

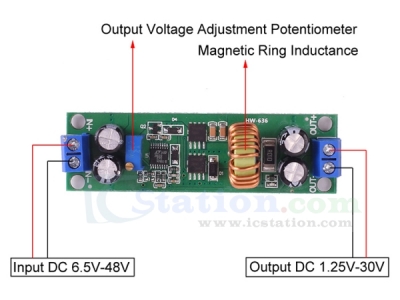

  4).It has an output voltage potentiometer that can adjust the output voltage.
  5).It has a power indicator.After power on,the blue indicator lights up.

3.Parameter:
  1).Product Name:Step-down Module
  2).Input Voltage:DC 6.5V-48V
  3).Output Voltage:DC 1.25V-30V
  4).Conversion Efficiency:97%
  5).Load Capacity:7A(Max)/5A(continuous use,heat dissipation is needed for more than 5A)
  6).Load Power:100W(Max,This is a restriction,please leave a margin for use.)
  7).Work Temperature:-40℃~85℃
  8).Work Humidity:5%~95%RH

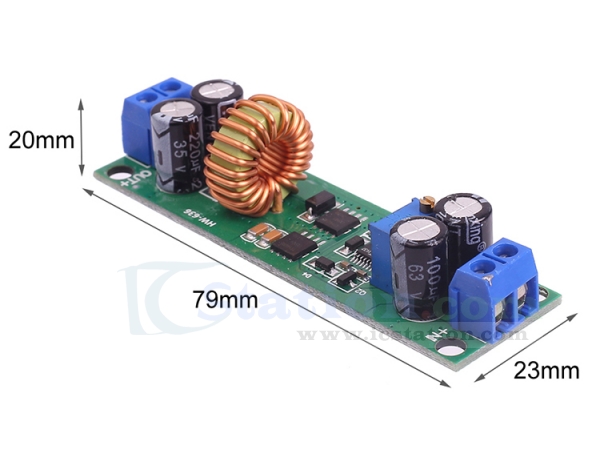

  9).Size:79*23*20mm

4.Package:
  1pcs Step-down Module
