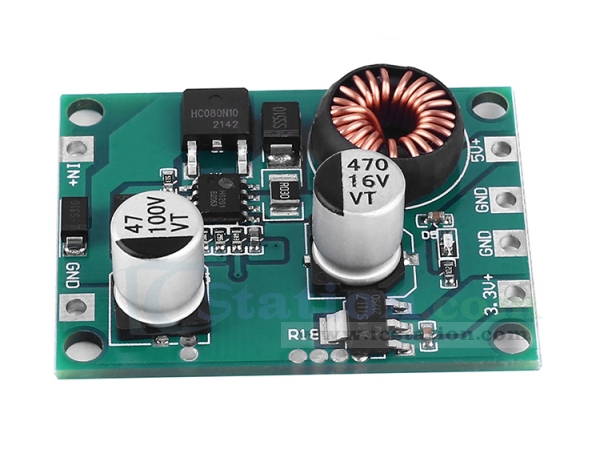

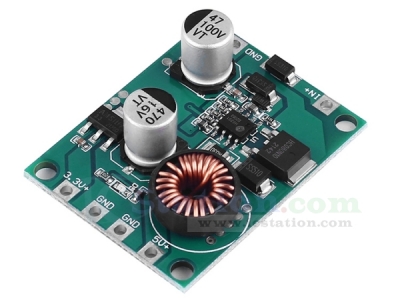

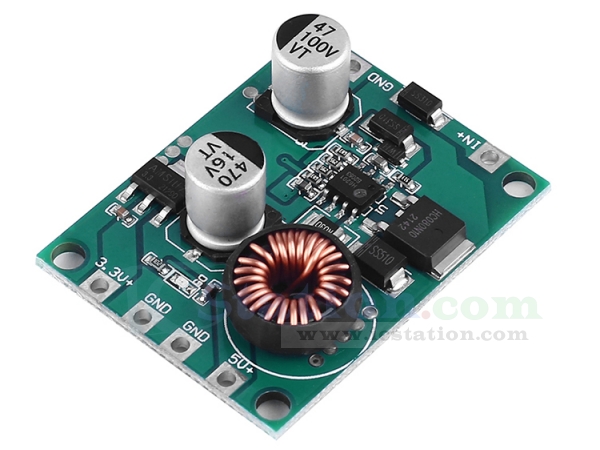

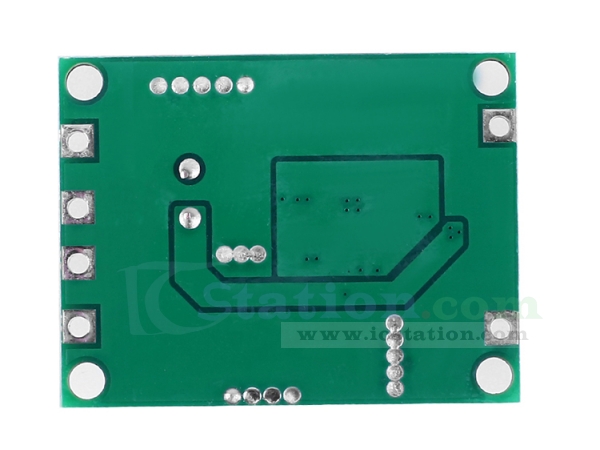

Step-down Module Regulated Power Supply Module DC 8V-80V to DC 3.3V/5V Voltage Converter

GY20147
5 9
$13.99 $9.79 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:
  It is a step-down module.It supports the output of the input voltage DC 8V-80V to DC 3.3V/5V.It is suitable for USB5V/3.3V powered devices such as mobile power supplies,mobile phones,and tablets.

2.Feature:
  1).It has a reverse connection protection function,so that the protection module will not burn out when reverse connection.
  2).It supports 88% conversion efficiency,high conversion and low power consumption.
  3).It supports output voltages of 3.3V and 5V,which can be selected according to your needs.
  4).It supports wide voltage input with a large input voltage range.

3.Parameter:
  1).Product Name:Step-Down Module

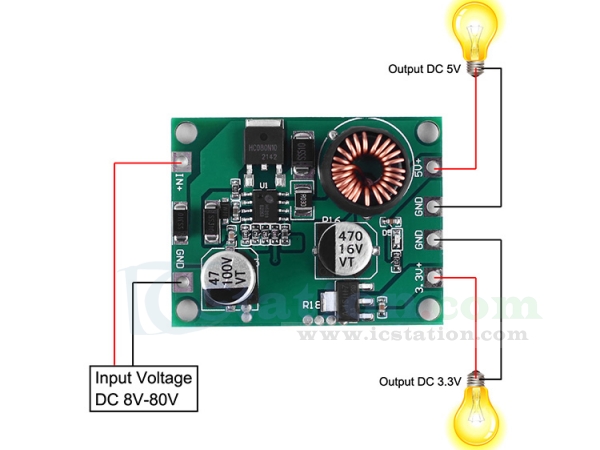

  2).Input Voltage:DC 8V-80V
  3).Output Voltage:DC 3.3V(800mA)/DC 5V(3A)
  4).Protection Function:Reverse connection protection
  5).Conversion Efficiency:88%(Max)
  6).Work Temperature:-25℃~85℃
  7).Work Humidity:5%~95%RH

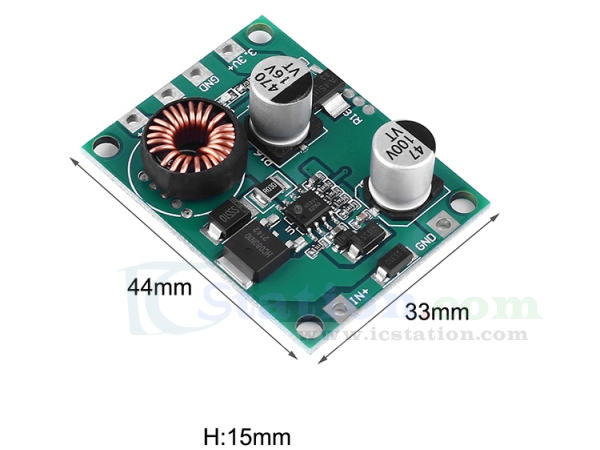

  8).Size:44*33*15mm

4.Package:
  1pcs Step-Down Module
