Home > Power Module > Step Down Module > DC-DC Step-Down Power Supply Module Buck Regulator Module 8-55V to 12V2A Fixed Output Voltage Converter

DC-DC Step-Down Power Supply Module Buck Regulator Module 8-55V to 12V2A Fixed Output Voltage Converter

GY19967
5 9
$9.99 $6.99 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

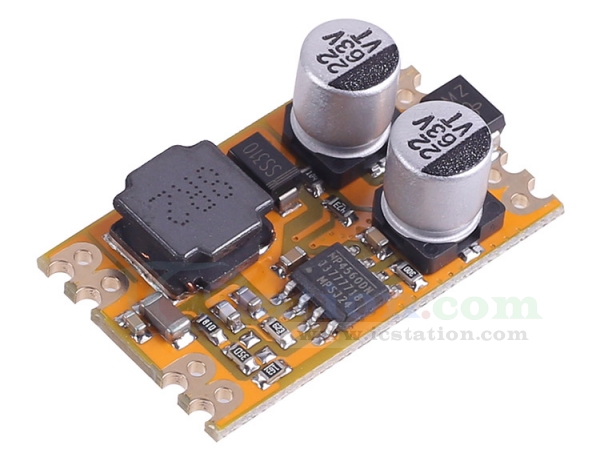

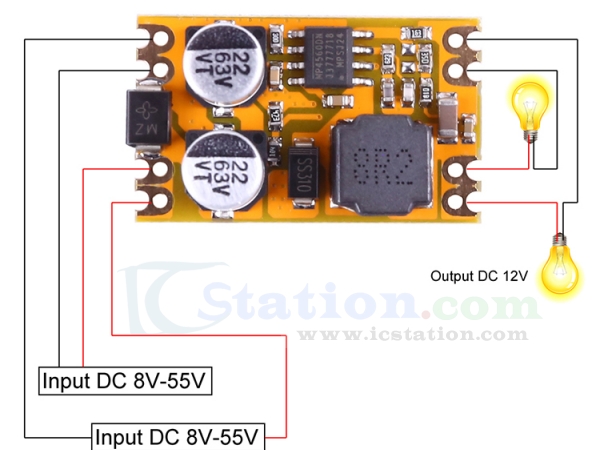

  It is a DC-DC step-down module.It can convert DC 8V-55V voltage into DC 12V voltage.The input voltage needs to be higher than the output voltage.

2.Feature:
  1).The performance and working stability of the module meet the requirements of industrial-grade products.
  2).Its conversion efficiency is high,reaching 90%.
  3).Its output ripple is small and interference is low.
  4).It has a long service life and can work for 50,000 hours.
  5).Its structure is simple and easy to use.

3.Parameter:
  1).Product Name:DC-DC Step-Down Module
  2).Input Voltage:8-55V
  3).Output Voltage:12V
  4).Output Current:2A
  5).Conversion Efficiency:90%
  6).Output Ripple:50mV(Max)
  7).Output Accuracy:+/-0.1V
  8).Heat Dissipation Method:natural cooling
  9).Installation Method:patch or 2.54 pin plug-in
  10).Production Process:reflow soldering
  11).Service Life:50000 hours without failure (not exceeding the rated value)
  12).Fixed Switching Frequency:500KHZ
  13).Work Temperature:-25℃~85℃
  14).Work Humidity:20%~90%RH

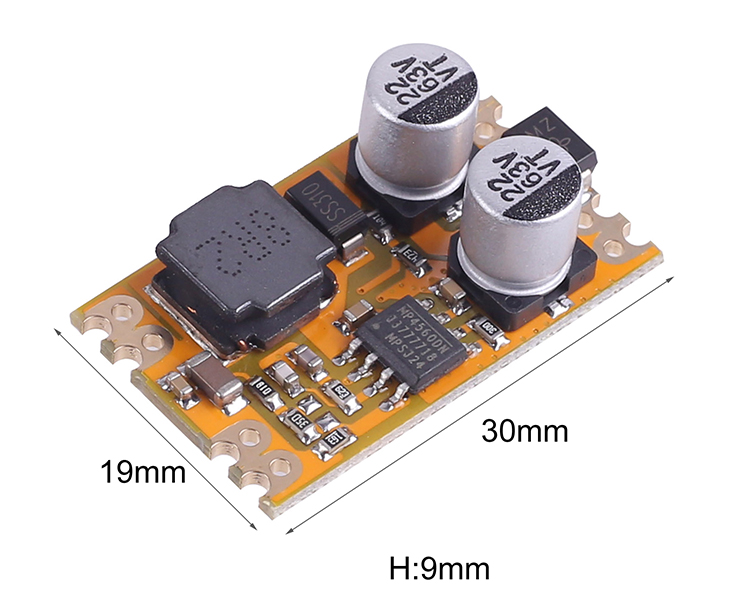

  15).Size:30*19*9mm

4.Package:
  1pcs DC-DC Step-Down Module
