Stepper Motor Drive Controller DC 12-24V Speed Regulation Forward and Reverse Control PWM Signal Generator

GY20054
5 9
$16.90 $11.83 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

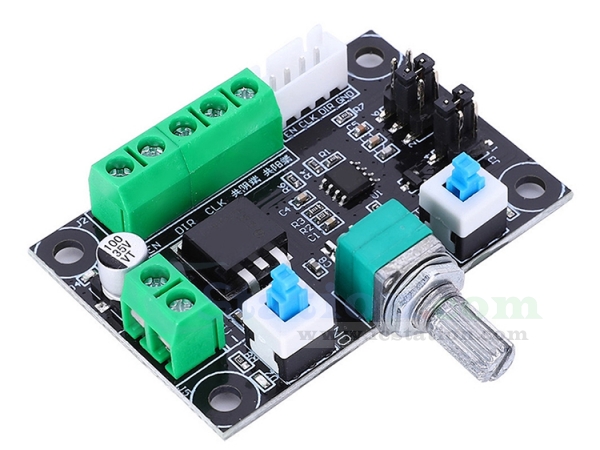

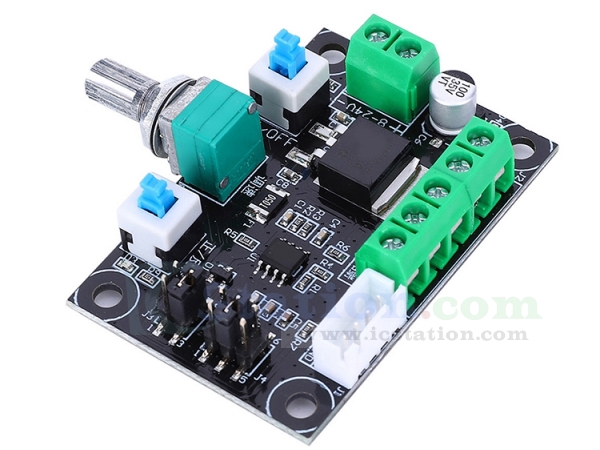

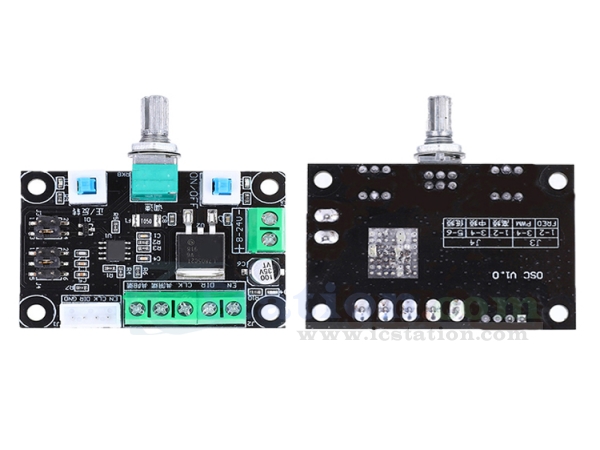

  It is a stepper motor drive controller.This module is a pulse generation module,which is supplied as a signal to the stepper driver.If you want to control a stepper motor,you must also be equipped with a driver.This simple controller + stepper drive + stepper motor + DC power supply can form a simple control platform.

2.Feature:

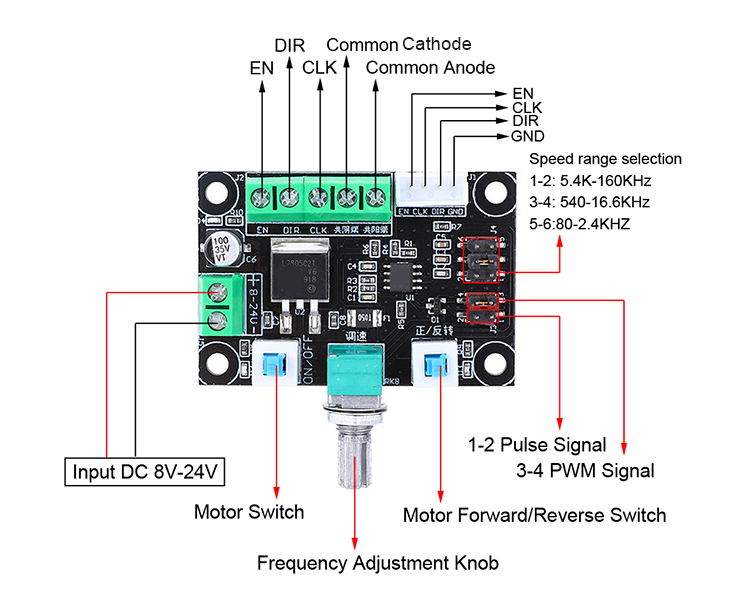

  1).It has a frequency adjustment knob to adjust the frequency.
  2).It has a motor forward and reverse switch and a motor switch.
  3).It has 3 kinds of frequency signals,which can be selected by skipping stitches.
  4).It can generate pulse signal and PWM signal,which can be selected by jumper.
  5).It can measure frequency through two ports:PUL and common cathode (or common anode).

3.Parameter:
  1).Product Name:Stepper Motor Drive Controller
  2).Input Voltage:DC 8V-24V
  3).Frequency Signal:5.4KHz-160KHz/540KHz-16.6KHz/80KHz-2.4KHz
  4).Signal Selection:pulse signal/PWM signal
  5).Work Temperature:-25℃~85℃
  6).Work Humidity:5%~95%RH

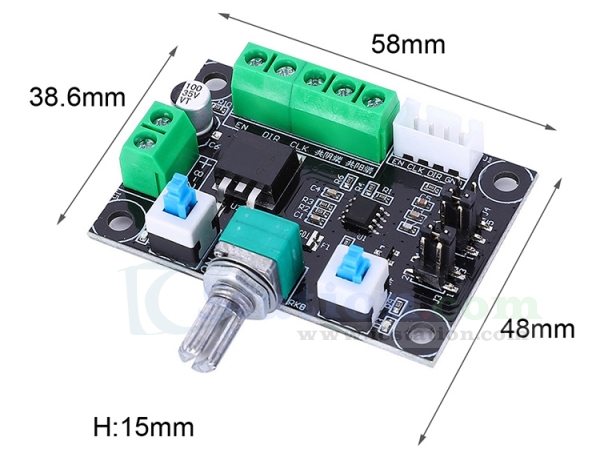

  7).Size:58*38.6*15mm

4.Common Anode Connection (connection B):
  1).EN+,PUL+,DIR+ are connected together to the common anode.
  2).EN-:Connect to EN
  3).PUL-:Connect to CLK
  4).DIR-:Connect to DIR

5.Common Cathode Connection (connection B)
  1).EN-,PUL-,DIR- are connected together to the common cathode.
  2).EN+:Connect to EN
  3).PUL+:connect to CLK
  4).DIR+:connect to DIR

6.Package:
  1pcs Stepper Motor Drive Controller
