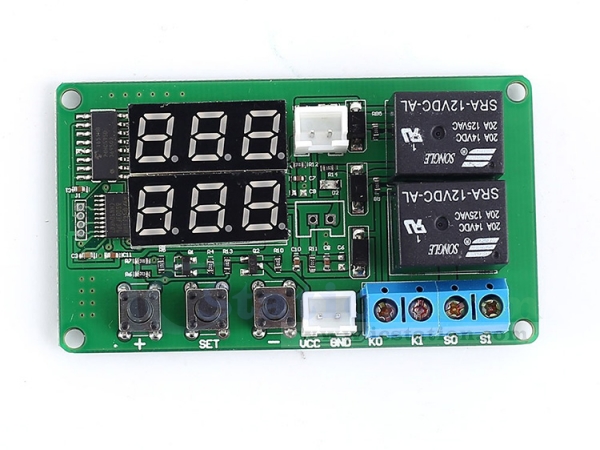

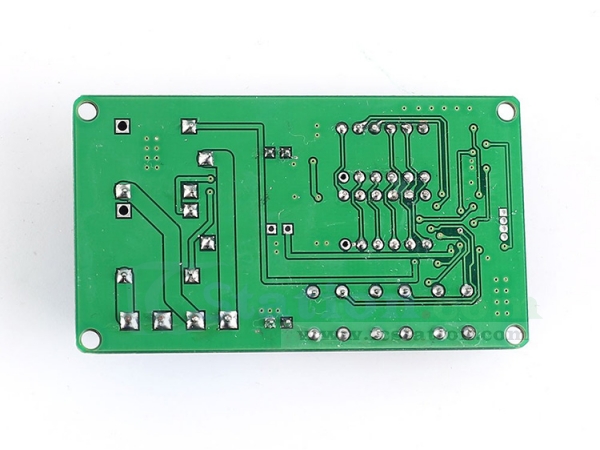

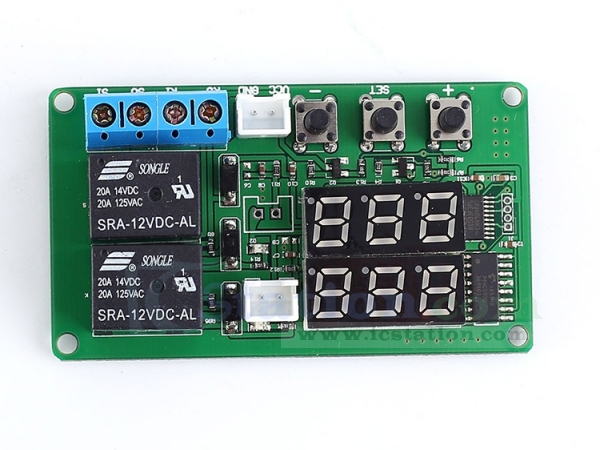

1.Description:
It is a temperature controller that automatically selects the heating and cooling modes to ensure temperature stability based on the set temperature and actual temperature.
2.Features:
1>.Temperature check
2>.Programmable settings
3>.Dual device control
3.Parameters:
1>.Product Name:Temperature Controller
2>.Work Voltage:DC 12V
3>.Timing Range:0-999s
4>.Power dissipation:<0.6W
5>.Temperature measuring range:-20℃~100℃
6>.Resolution:1℃
7>.Sensor type:NTC 10K Temperature sensor
8>.Output type:Relay output(It can not output voltage!)
9>.Output Channel:2CH
10>.Load voltage:DC 30V/AC 250V
11>.Load current:10A(Max)
12>.Working Humidity Range:5%-95%RH

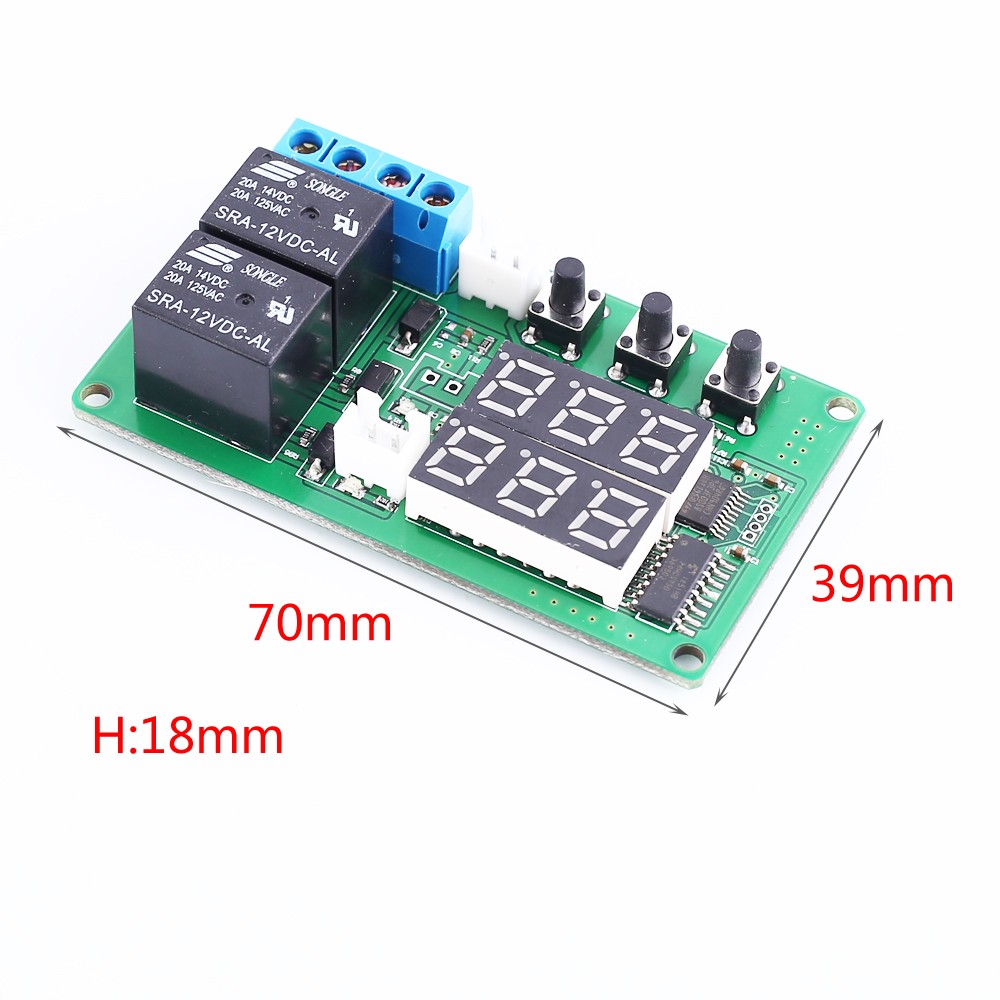

13>.Module Size:70*39*18mm
14>.Sensor Length:1meter
4.Instructions:
1>.Set work mode:
1.1>.Press SET button and then connect work voltage enter into parameter set mode to set parameter P0, P1, P2.
1.2>.P0:Calibration Temperature.Calibration temperature range is -10℃~10℃. Default value is 0℃.
1.3.P1:set Upper Limit Delay ON Time T1.Time range is 0s~999s or OFF.It means Delay will keep ON for time T1 and then turn OFF if the Actual Temperature Value is higher than the Upper Limit Temperature Value.But it will keep ON always if P1=OFF.
1.4>.P3:set Lower Limit Delay ON Time T2.Time range is 0s~999s or OFF.It means Delay will keep ON for time T2 and then turn OFF if the Actual Temperature Value is lower than the Lower Limit Temperature Value.But it will keep ON always if P2=OFF.
1.5>.Module automatically saves parameters after 8second and enter to normal display mode.
2>.Set temperature value:
2.1>.Short press button SET to set Upper Limit Temperature Value and the first screen will flashing.Press button + and - to set temperature value.
2.2>.Short press button SET again to set Lower Limit Temperature Value and the second screen will flashing.Press button + and - to set temperature value.
2.3>.Short press button SET again to save and exit.

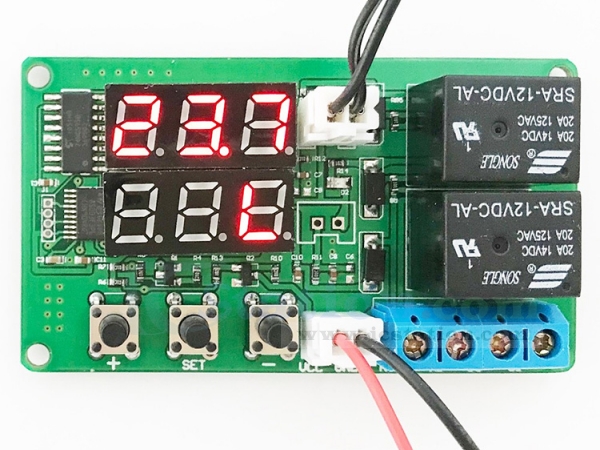

3>.Inquiry Work Statue:
3.1>.Keep press button SET about 3second enter into inquiry interface.
3.2>.The first screen will display the Actual Temperature Value.
3.3>.The second screen will display work mode:H, L, OFF.
3.4>.H: It means the Actual Temperature Value is higher than the Upper Limit Temperature Value.
3.5>.L: It means the Actual Temperature Value is lower than the Lower Limit Temperature Value.
3.6>.OFF:It means the Actual Temperature Value between the Upper Limit Temperature Value and the Lower Limit Temperature Value.
4>.Indicator:
4.1>.Relay output is ON if LED indicator turn ON.
4.2>.Relay output is OFF if LED indicator turn OFF.
5>.Error message:Screen will display --- if module is not connected to sensor or damaged.
5.For example:
For example, Set the Upper Limit Temperature Value as 40℃ and the Lower Limit Temperature Value is 20℃.TEP represents the Actual Temperature Value.The operating status of the relay under different temperature ranges is as follows:
Relay1 ON and Relay2 OFF when 40℃<TEP.
Relay1 OFF and Relay2 OFF when 20℃<=TEP<=40℃.
Relay1 OFF and Relay 2 ON when TEP<20℃.

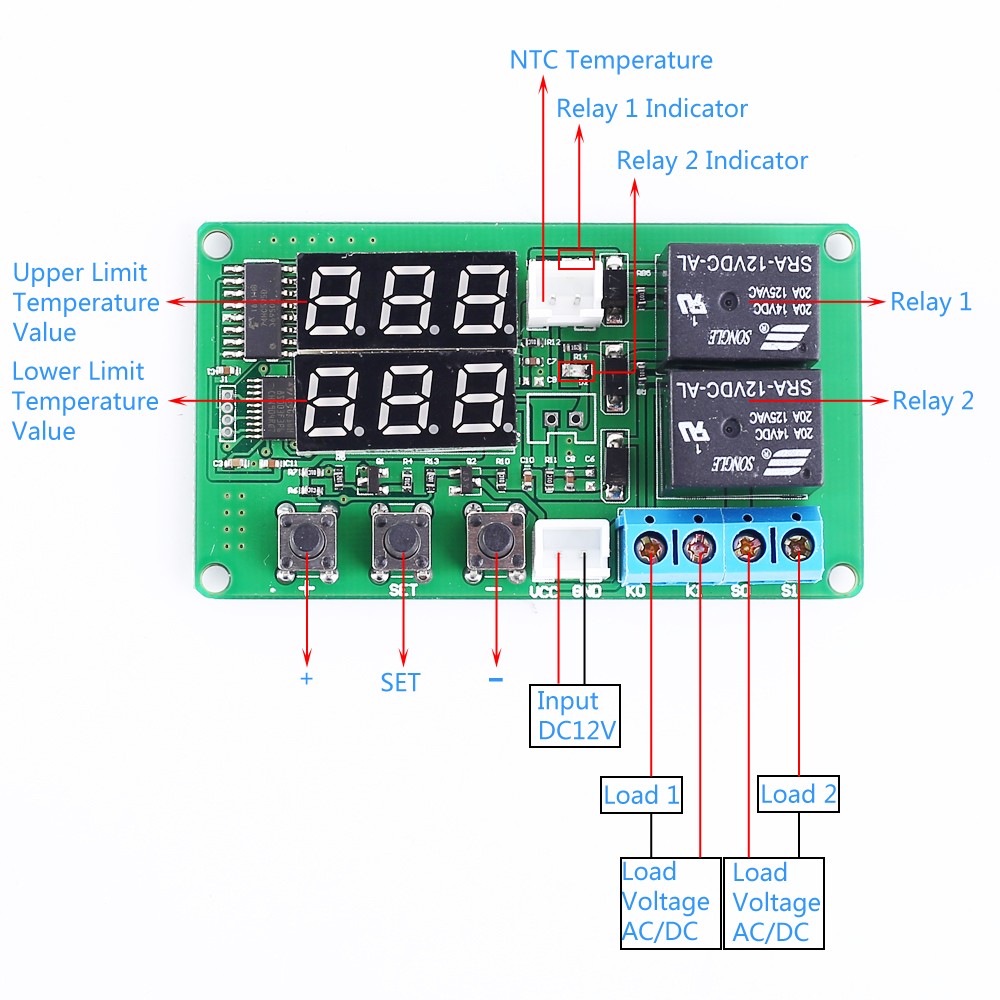

6.Using Steps:
1>.Connect work power supply.
2>.Set work parameters.
3>.Remove power supply.
4>.Connect to load at output terminal and load voltage.
5>.Re-connect work power supply.
7.Note:
1>.It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.
2>.Please read use manual and description before use.
8.Application:
1>.It can be widely used in many regular occasions.
2>.It can be widely used in industrial control.
9.Package:

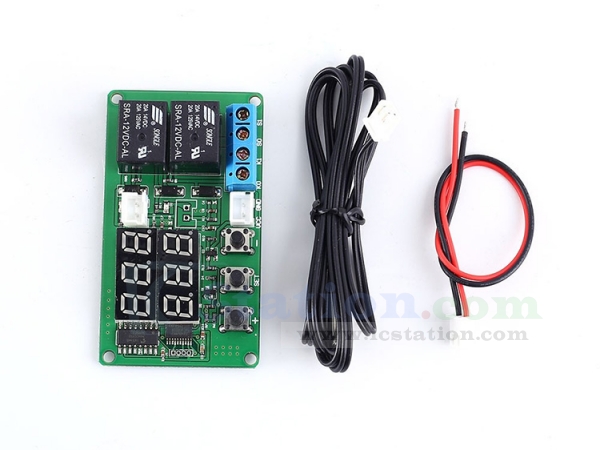

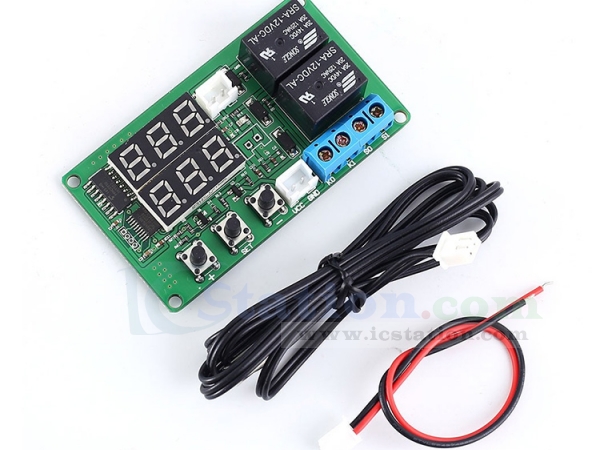

1pcs Temperature Controller
1pcs NTC temperature sensor
1pcs 150cm XH2.54-2P Power cable
