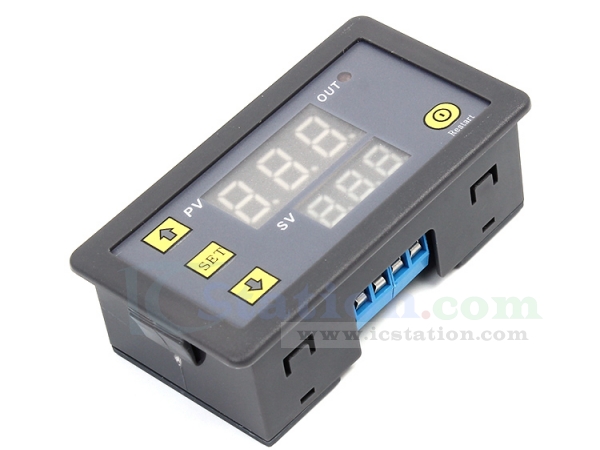

12V Upgrade Cycle Timer Delay Dual Display Functions Setting Relay Module

8709
5 9
$10.19 $8.66 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Description:
Timing range: 0-999 minutes 0-999 0-999 seconds when three kinds can select the desired
Dimensions: Display panel: 79mm * 43 installation: 71mm * 40mm24mm
Feature Sets: 18 kinds of combinations of features
Relay: Original 20A relays, power <1800W

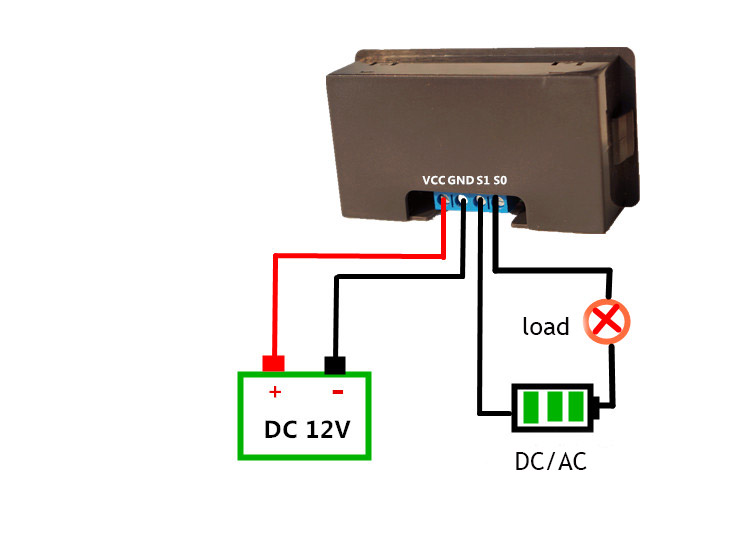

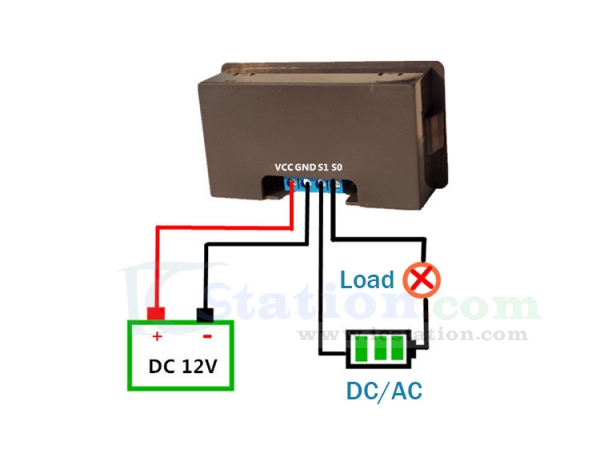

System Power: 12v

Instruction Manual
      Before using the first prompt the user to note that a certain set of data After waiting 6s, 6s after the memory module will automatically save the data set.

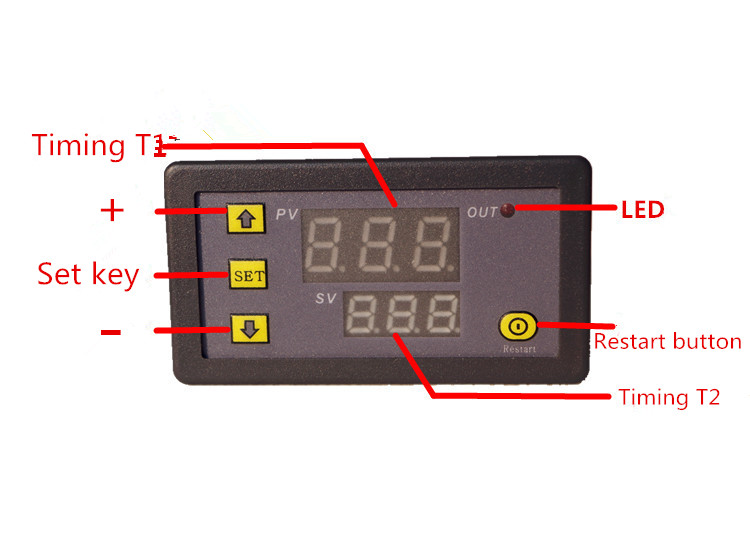

   (1) Press SET key to enter the time setting mode, the digital tube flicker, buttons plus or minus buttons to adjust the timing T1 and the timing T2, after setting the time, must wait 5s, 5s after the module will automatically remember save data.
    (2) Press SET, the parameter setting mode. There are two sets of parameters for the user to select P0, P1. In the current mode Short press SET to switch P0, P1. In P0, P1 parameter can be set for their own timer mode through the key addition and subtraction.
P0--0: timing mode is 0--999 ??seconds
P0--1: timing mode is 0--999 ??minutes
P0--2: timing when the pattern is 0--999
P1--0: T1 time delay relay (T1 timer)
P1--1: T1 delay time relay releases (T1 timer)
P1--2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends.
P1--4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle.
P1--5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle.
