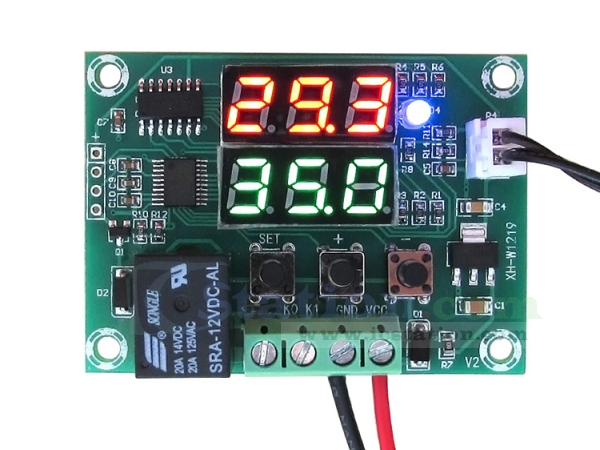

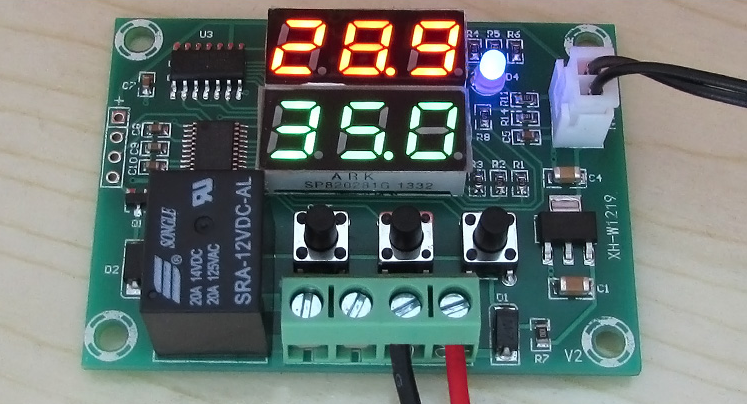

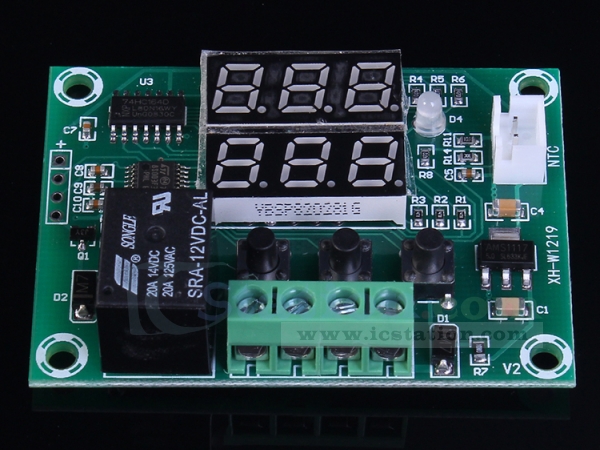

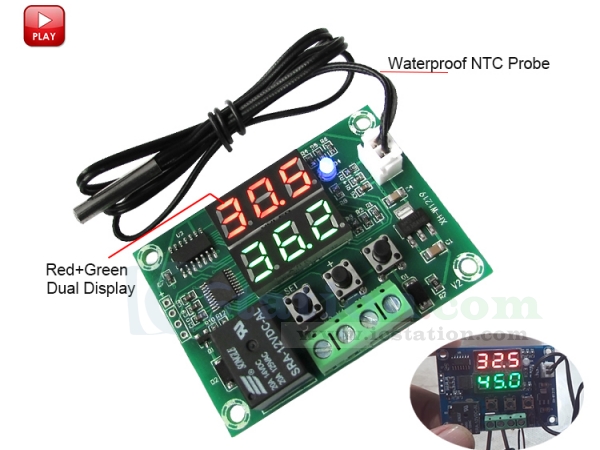

XH-W1219 Digital Thermostat Module Temperature Controller Module Switch with Waterproof NTC Probe Dual LED Display Red+Green

11309
5 9
$4.35 (only 0 pcs )
Contact us for wholesale price

Sold out


Note: Due to some reasons, this product is out of stock recently. If you make bulk orders, please feel free to contact our customer service orders@icstation.com. Bulk orders will be realized. Please kindly noted. :)



Product Introduction:
1. Model: XH-W1219
2. Control Range: -50~110 celsius
3. Control Precision: 0.1 celsius
4. Measuring Input: NTC10K waterproof sensor L=0.5m
5. High Temperature Alarm: -49~110 celsius

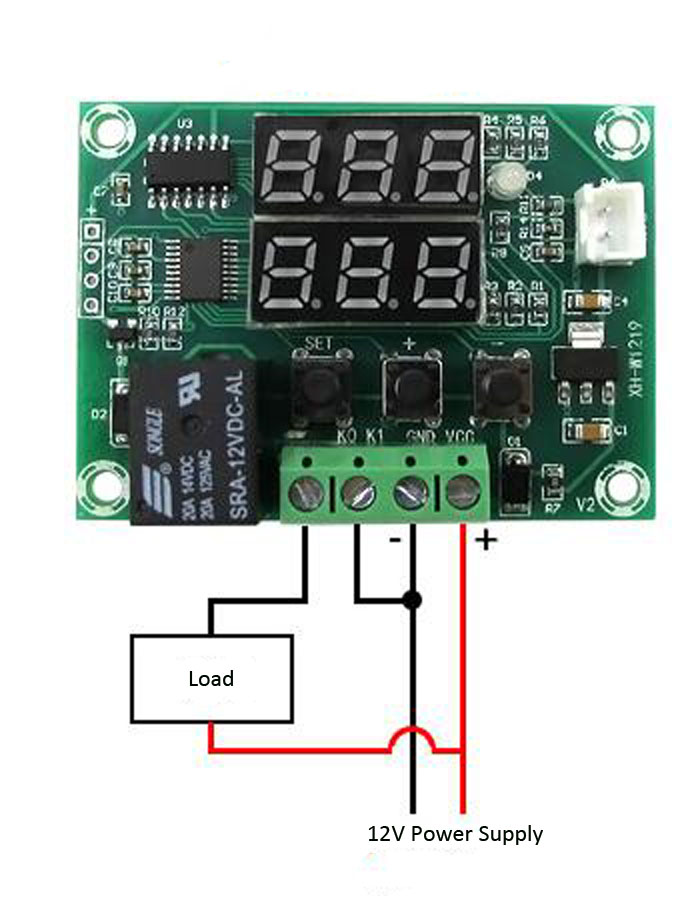

6. Input Voltage: DC 12V
7. Output Type: relay output 10A (max)
8. Return Difference Setting: 0.1~30 celsius
9. Delay Starting: 0-10min
10. Temperature Calibration: -10~10 celsius
11. Size: 60*43*16mm

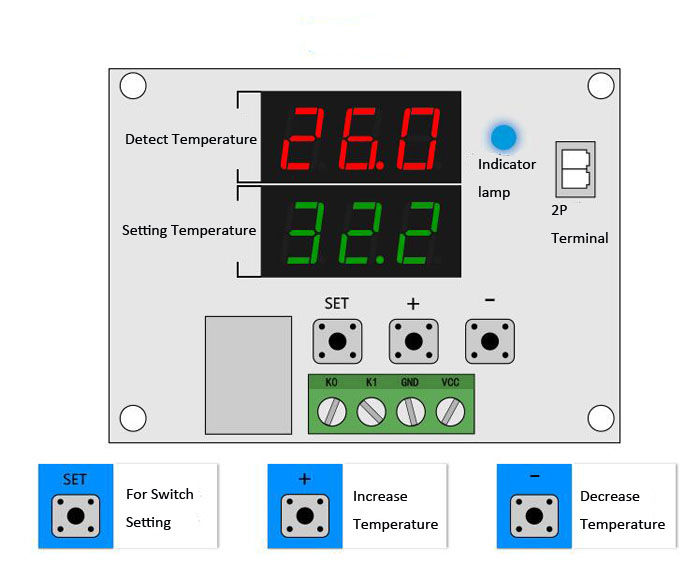

Function Introduction:
P0.Temperature Control Mode:when first use this product;if it is used to heating,please set H,if used to cooling,please set C
P1.Return Difference Setting:long press SET key entering into internal setting,choose P1 seting;then press SET key to achieve return difference value setting
P2:Temperature Calibration:this function is for temperature calibration.If detection temperature and actual temperature is different,then usrs can apply this function to calibrate
P3:Delay Start:this function is for compressor cooling
P4:Set High Temperature Alarm Value:when actual temperature is higher than this value,screen will flash and sound an alarm



Tested Below:

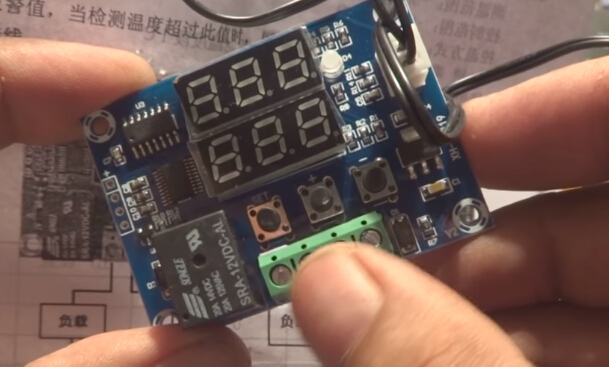

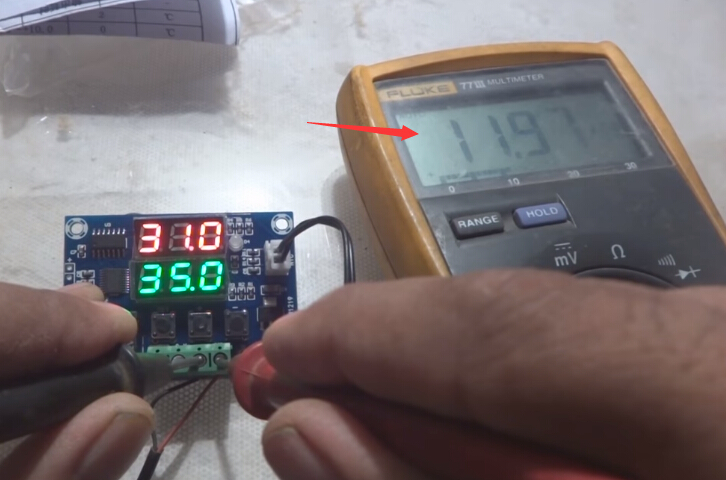

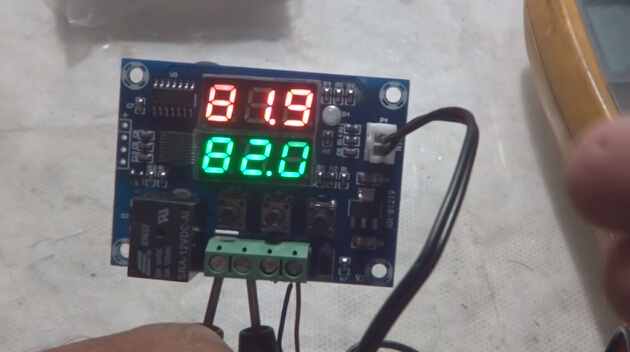

Tested by ICStation's Outstanding Partner LearningZone:
(Note: The Color of the PCB will be slightly different, functions are the same, hope your kindly understanding.)

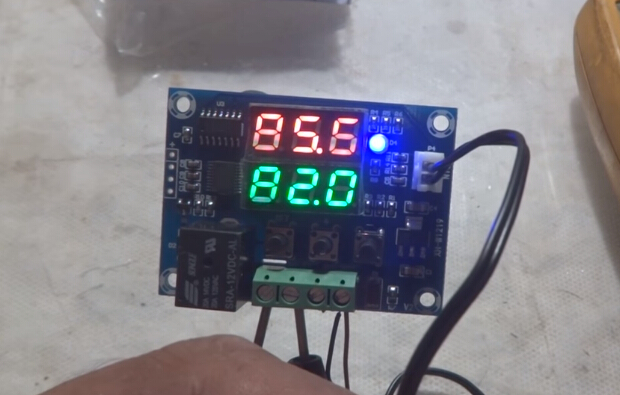

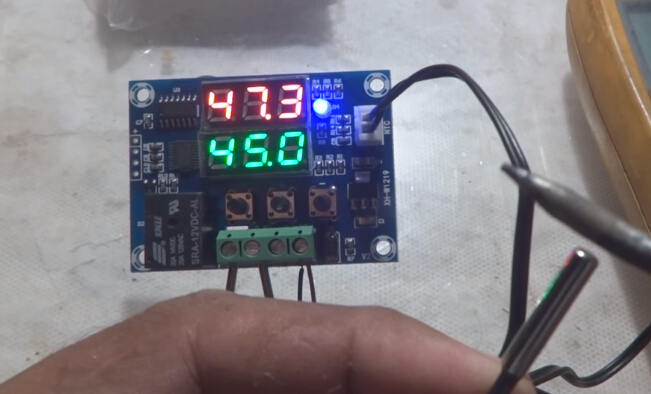

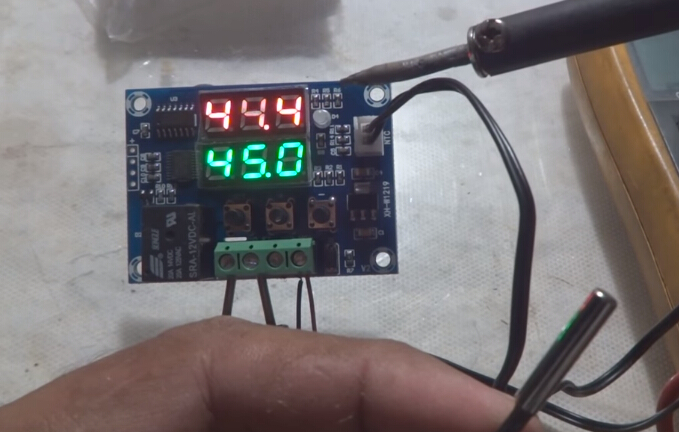

When the Probe temperature is higher than the setting temperature, the Blue LED will be ON, and the alarm begins.

When the Probe temperature is lower than the setting temperature, the Blue LED will be OFF, and the alarm stops.

Learn More Details in the Video:
(The language in the video is English)
