Effect Demo about the RGB LED Flashing Lamp DIY Kit
1.Introduction:
It is a RGB full color LED light cubic ring DIY Kit.
It uses 28 high-bright full-color LED, will produce a variety of cool gradient colors when power ON.
The effect will not be affected even in the sun. The whole form an ultra-thin effect. The power off and power on is a high-value artwork.
2.Feature:
28pcs highlight RGB full color LED
23 kinds of display effects
Power off memory function
10mm big LED
3.Parameter:
Work Voltage:DC 4.5V~5.5V
Work Current:500mA
Work Module:Automatic and Touch Button Control
Work Temperature:-40℃~85℃
Work Humidity:0%~95%RH
Size(Installed):96*96*50mm
4.Display Mode:
1>.Outward diffusion gradient Aurora LED mode
2>.Clockwise change color of water droplets tailing effect
3>.Anticlockwise water droplets tailing
4>.Layer by layer fade gradually eliminate change color
5>.Each ring LED full-color gradient
6>.Random LED lightning mode
7>.Random 4pcs LED alternately breathing transformation
8>."Y" rotation (Like the English letter Y)
9>.Random layer and color breathing
10>.Three laps LED full-color gradient
11>.Clockwise color effect water droplets tailing
12>.Internal and external diffusion LED Aurora gradient mode
13>.Rainbow gradient mode
14>.A LED color random breath
15>.A variety of all LED breathing patterns
16>.Constantly changing color of water droplets tailing
17>.Random full light and Random Off
18>.Random four color breathing effect
19>.Random color exterminate
20>.All LED full-color gradient
21>.Random 7pcs of all LED after getting brighter gradually eliminate
22>.Random two color water droplets tailing
23>.Random 4pcs LED's "stars" effect
24>.The default code inside the chip, the function is more abundant, so please do not update the code inside arbitrarily!
5.Installation Steps (Please be patient):
Step 1: Install 1pcs IAP15W413S-35I SOP-28 at IC1.
There is a dot on one corner of the IC and there is a black dot on PCB where the IC can place on.
These two marks are corresponding to each other and are used to specify the installation direction of the IC.
Step 2: Install 1pcs 1Mohm 0805 SMD Resistor at R22.
Step 3: Install 1pcs 0.1uF 0805 SMD Capacitor at C1.
Step 4: Install 21pcs 120ohm 0805 SMD Resistor at R1~R21.
Step 5: Install 1pcs MINI USB Female Socket at J1.
Step 6: Install 1pcs 220uF SMD Aluminum Capacitor at C3.Pay attention to its installation direction.

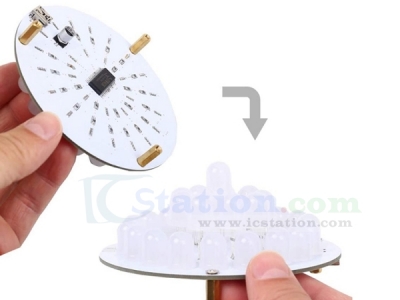

Step 7: Install 3pcs copper pillars as support pillars.
Step 8: Identify the LED pins. The rectangular pad connects to the longest LED pin.The pins of other LED are inserted into the corresponding pads in sequence.
Step 9: Install the LED at the center point, the height of the LED is controlled at about 35mm.
Step 10: Install inner ring 9pcs LED.Insert the LED in the correct position.Next cut Cut off excess pins.Next Fix the pin with solder.
Step 11: Take the shortest pin as the reference length and cut off the excess length of other pins.Next to fix the pin with solder.
Step 12: The height of the inner ring LED is about 25mm.
Step 13: Install outer ring 18pcs LED in the correct position.
Step 14: Connect to power supply and enjoy the LED flashing effect. Press touch button to change display effect.
