Green LED DIY Kit Heart Shape Breathing Lamp Kit Electronic Soldering Kit DC 4V-6V

12558
5 9
$2.35 $1.18
Quantity10+30+50+
Price$1.50$1.35$1.15
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$5.37-5%Bundled Price:$5.10

Description:

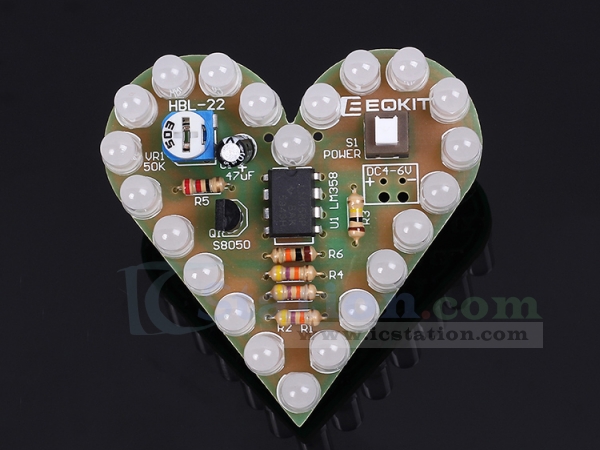

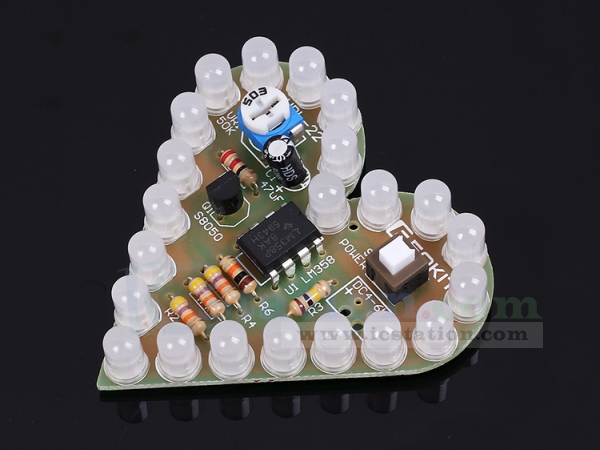

This is a DIY Heart Shape breathing lamp led kit. You need solder it by yourself.

Parameters:

Parameters Value
Name Heart shape led
Operating voltage DC 4-6V
Difficulty of welding machine Easy
Circuit board size 50.7*50.7mm
Packing weight 13g/kit
Light color Green

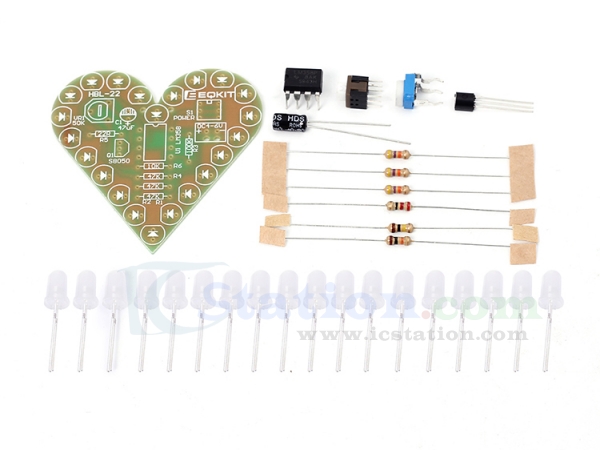

Component List:

NO. Name Parameter QTY
R5 RES 22R 1
R6 RES 10K 1
R1.R2.R4 RES 47K 3
R3 RES 100K 1
C1 E-CAP 47UF 1
VR1 ADJ-RES 50K 1
U1 IC LM358 1
S1 Power switch 6P 1
Q1 Triode S8050 1
LED1-LED22 LED 5mm 22
—— PCB HBL-22 1


Install tools:
IT IS SUGGESTED TO PREPARE THE FOLLOWING TOOLS IN ADVANCE TO INSTALL THE KITS.

Electric soldering iron Multimeter Solder wire
Soldering iron holder Diagonal cutting pliers Screwdriver
Tweezers Sharp-nose pliers Solder sucker
Sponge Screwdriver kit


Installation Manual Download:

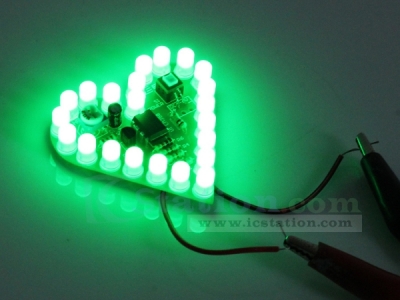

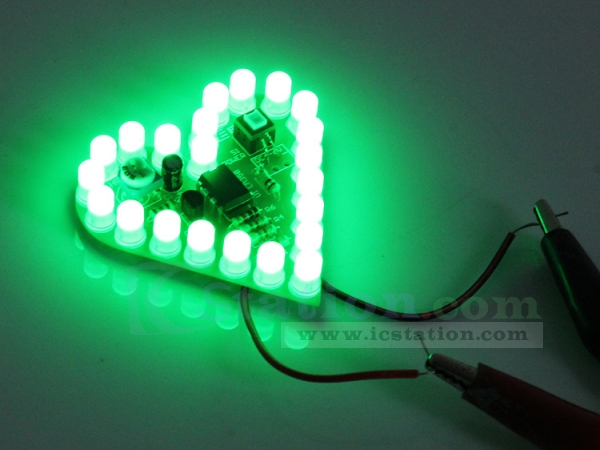

Tested by ICStation's Outstanding Partner Mr Engineer:



Quantity10+30+50+
Price$1.50$1.35$1.15
