Home > ICStation Brand > ICStation > Function Module > ICStation Electronic Temperature Control DIY Kit Sound Light Alarm Suite DC 3-5V

Note: Due to some reasons, this product is out of stock recently. If you make bulk orders, please feel free to contact our customer service orders@icstation.com. Bulk orders (from 50pcs) can be still processed.

With Simple circuit, easy soldering, this suite is very suitable for the teenagers to learn circuit and soldering. The feature of this suite is small size, high sensitivity. It uses the sound and light to finish the alarm, and it can be used to detect the temperature. In conclusion, it has high practicability

Circuit Introduction:

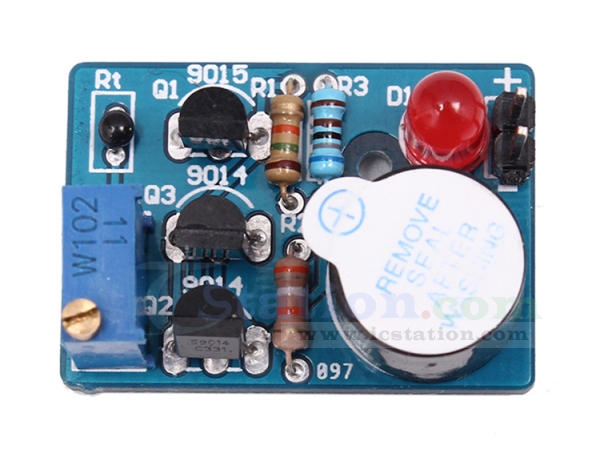

The circuit of this suite is very simple, it is consisted of three triodes(two S09014 and one S9015), one active buzzer, one LED and one thermistor. Adjust the potentiometer to set the temperature threshold value, use two S9014 triode to drive the buzzer, when the temperature is high than the threshold value, the LED lights and the buzzer alarms; when the temperature is lower than the threshold value, the LED does not light, the buzzer does not alarm.

Parameter:

Working Voltage: DC 3~5V.

PCB size: 21*30mm

Schematic Diagram:

Mechanical Drawing:


Components List:

DIY Kit Electronic Temperature Control Sound Light Alarm Suite

NO.

Component

Label

Capsulation

Value

Quantity

Remark

1

Triode(9015)

Q1

TO-92



1



2

Triode(9014)

Q2,Q3

TO-92



2



3

Potentiometer(W3605)

RP

W3605

1K

1



4

Active Buzzer

LS





1



5

Thermistor(1K)

Rt



1K

1



6

5mm LED(Red)

D1





1



7

Resistor

R1

AXIL-0.3

15K

2



8

Resistor

R2

AXIL-0.4

39K

2



9

Resistor

R3

AXIL-0.5

6.8K

2



10

2P Pin Header







1

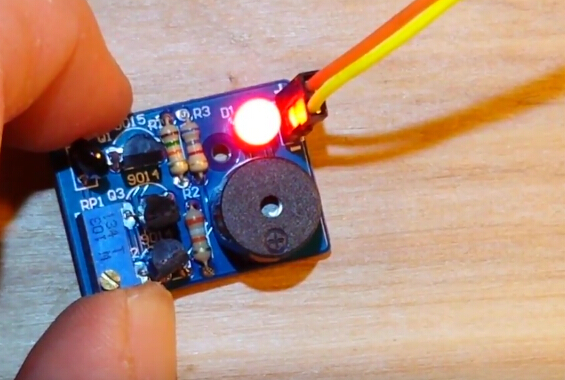

Tested by ICStation's Outstanding Partner learnelectronics:



Learn More Details in the Video:

Quantity5+
Price$1.99
