DC 12V Timer Relay Control Switch DIY Kit 100s Delay Electronic Soldering Practice Learning Kits

GY19619
5 9
$4.59 $4.04
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Introduction:
TME-R1 is a 100s DC 12V Timer Relay Control Switch DIY Kit.
It is a very simple delay module.
User can set delay by potentiometer and start delay by press button.
It is very suitable for starting protection of electrical and other on-site delay equipment.

2.Feature:
1>.Adjustable delay time
2>.Drive delay work at any time
3>.Relay switch output
4>.Perfect simple circuit
5>.DIY hand soldering

3.Parameter:
1>.Product Name:TME-R1 DC 12V Timer Relay Control DIY Kit
2>.Product Number:TME-R1
3>.Work Voltage:DC 12V
4>.Delay Time: 1~100 second
5>.Output Type:Relay switch output(No voltage output!)
6>.Control Load:AC 250V 3A or DC 30V 3A
7>.Work Temperature:-40℃~85℃
8>.Work Humidity:5%~85%RH

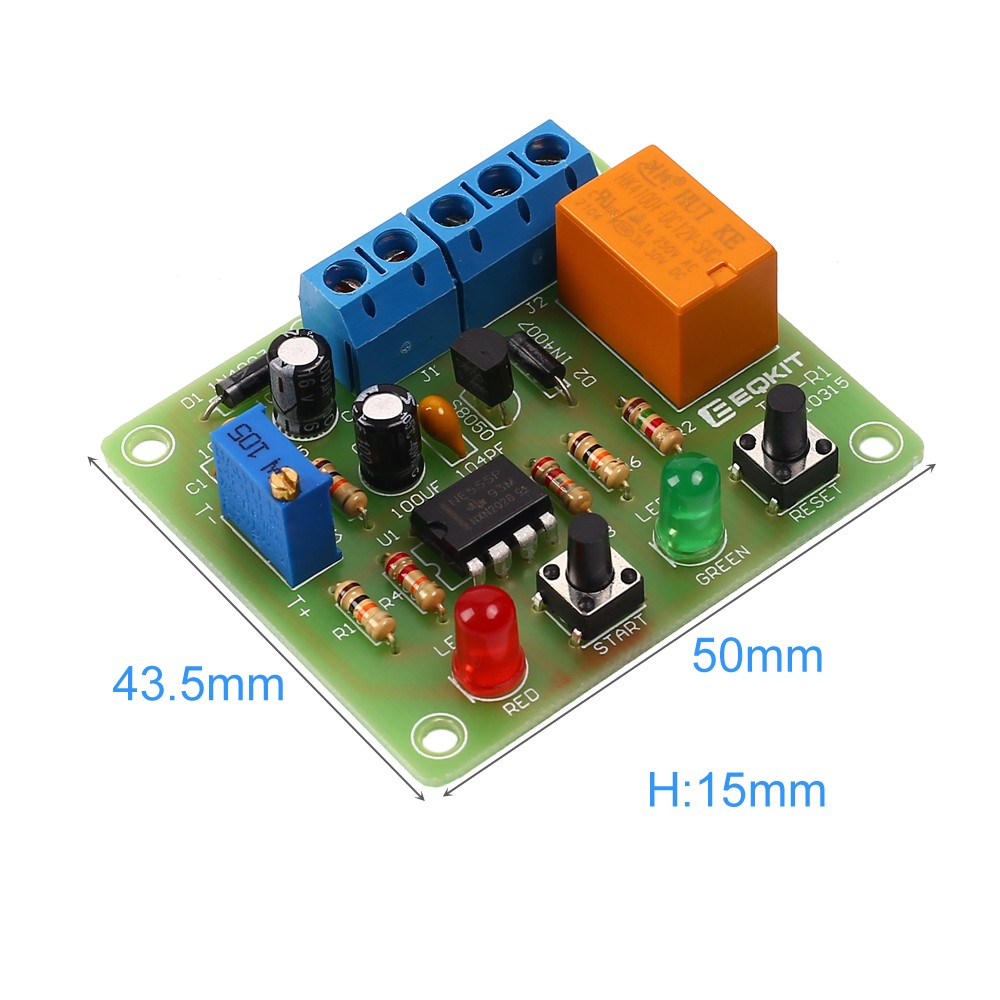

9>.Size(Installed):50*43.5*15mm
