Home > LCD Module > TTL MODBUS 0.4inch 4-Bit Red Digital Tube LED Display Screen Module TTL Control for Arduino

TTL MODBUS 0.4inch 4-Bit Red Digital Tube LED Display Screen Module TTL Control for Arduino

GY18124
5 9
$10.59
Contact us for wholesale price
- OR - - OR - Add to Wish List
1.Description:

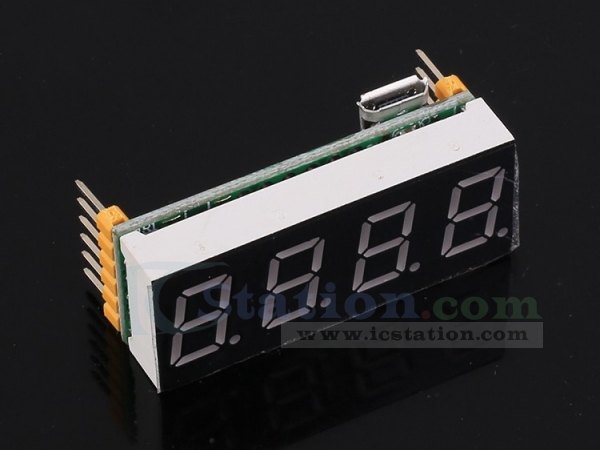

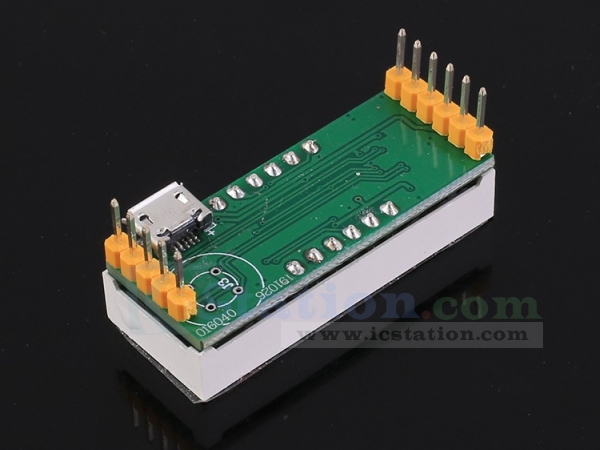

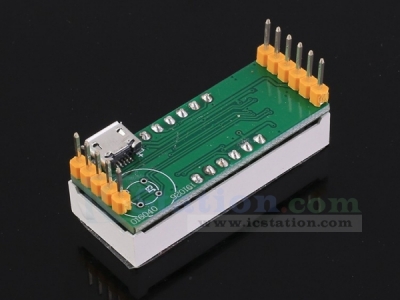

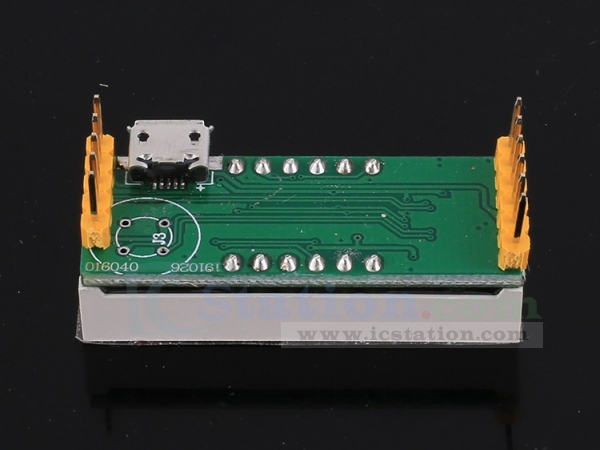

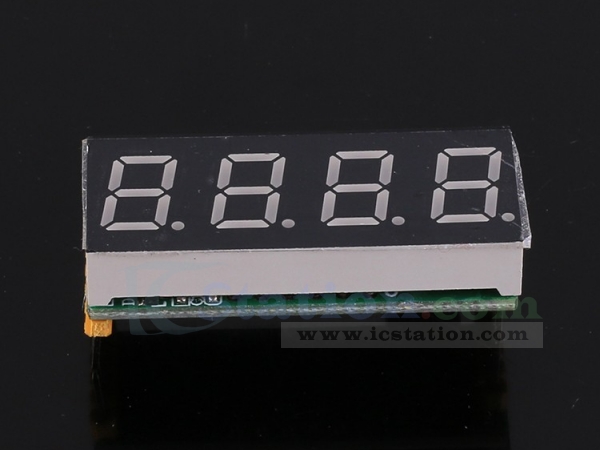

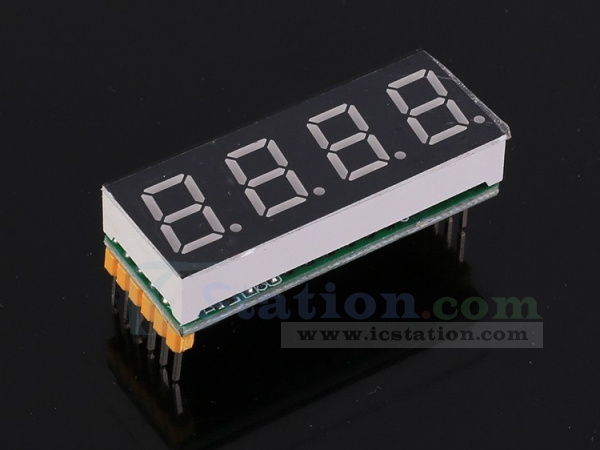

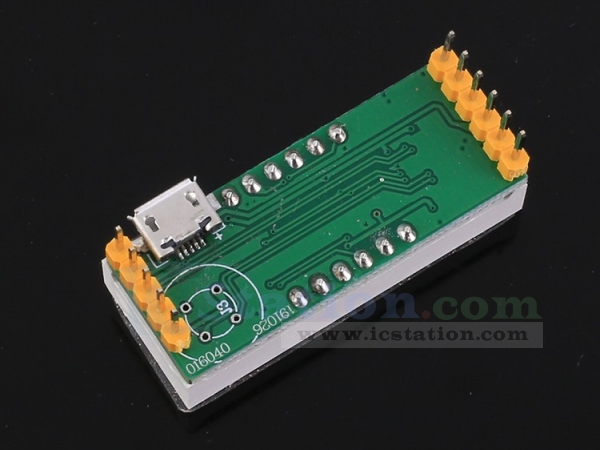

  It is a TTL digital tube.This module has a built-in driver,which can be controlled by the user by sending instructions only.

2.Feature:
  1>.It comes with a four-digit 0.4-inch screen
  2>.It supports Micro USB communication
  3>.It supports TTL/serial communication
  4>.It supports ModbusRTU extended instructions
  5>.It supports pin powered/Micro USB powered.

3.Parameter:
  1>.Product Name: TTL Digital Tube
  2>.Input Voltage:DC 5V
  3>.Input Current:1A(Max)
  4>.Work Temperature:-25℃~85℃
  5>.Work Humidity:5%~95%RH
  6>.Size:41*17*18mm

4.The Details of Sending Instructions are as Follows:
  1>.01:Station number of digital tube
  2>.06:Function code
  3>.00 00:Display register of digital tube screen (integer)
  4>.22 B8:display 8888 (decimal),hexadecimal 22B8
  5>.91 18:CRC check

5.Package:
   1pcs TTL Digital Tube
