XH-M219 Clock Temperature Humidity Sensor Module LCD1602 Display Module

13100
5 9
$11.99 $8.39 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Description:
The product is displayed in a 1602 LCD blue screen. It integrates clocks, alarms, and alerts. It can also display temperature and humidity synchronously. It can be embedded in the chassis. The board contains 1302 chip to realize the power saving data, and the time adjustable humidity can be calibrated. It is powerful and the setup is simple.

Parameters:
No. Parameter Value
1 Product name Clock temperature and humidity module
2 Model XH - M219
3 Processing chip STM8S105K4T6C
4 Detect temperature -50 Celsius  to 110 Celsius
5 Detect humidity 20-95% RH
6 Power supply voltage DC12V
7 Timing A set of time/ buzzer alarms
8 Size 85 * 55 * 24 mm

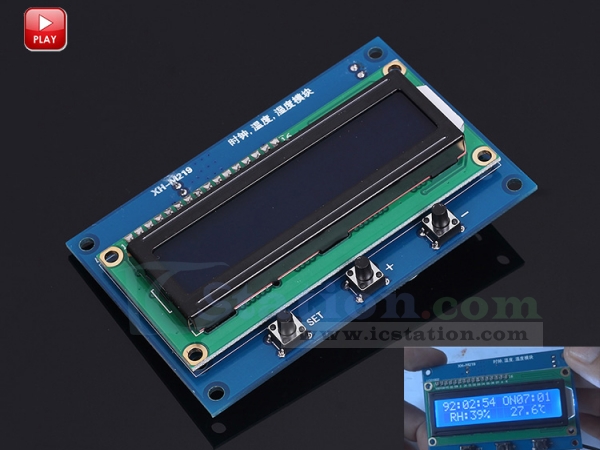

Module Details:

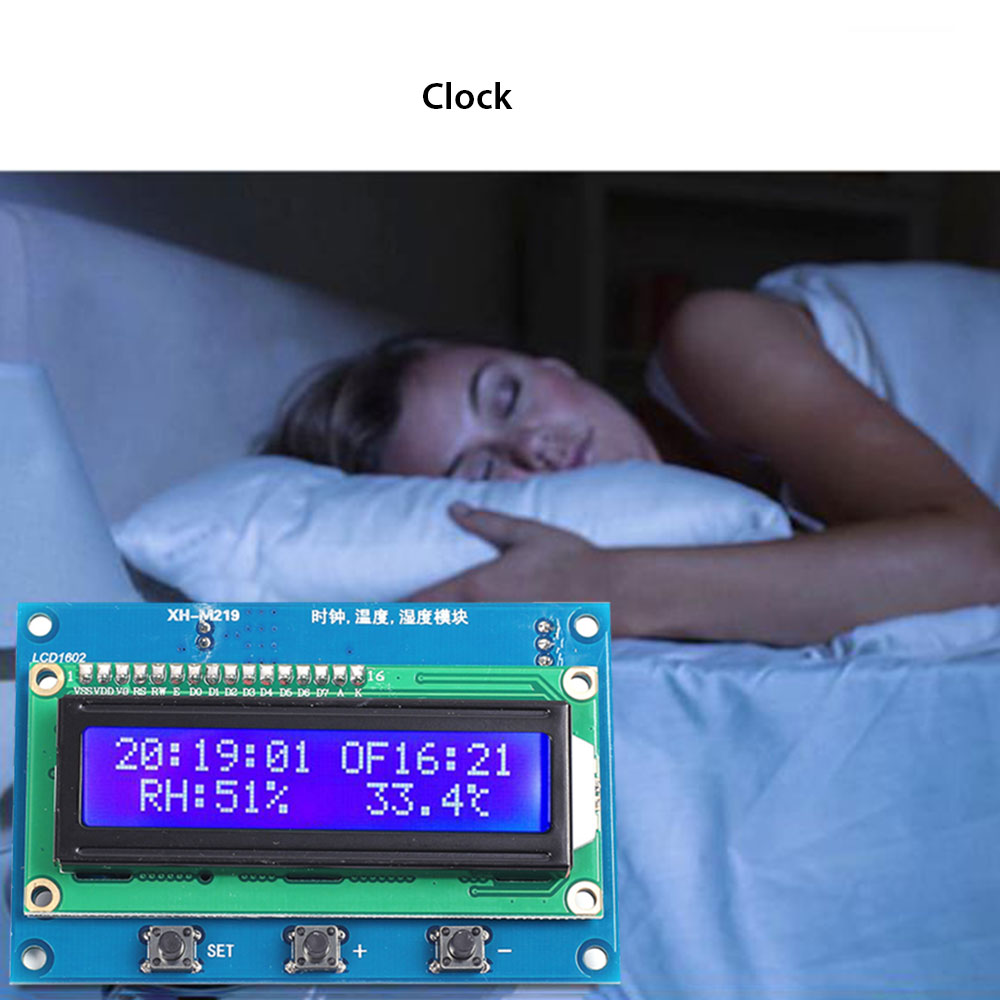

Application:

Warning: Considering respect the copyright of the partners, it is not allowed to use our pictures or videos without approval.
We are not responsible for any complaints from our partners if you used the pictures/videos arbitrarily.

1. Tested by ICStation's Outstanding Partner LearningZone:

Learn More Details in the Video:
(The language in the video is English)



2.Tested by ICStation's Outstanding Partner Electorials:

Step 1. Flip the module onto its back side (screen facing down) and make sure the terminal screws are not tightened by rotating the screws anti-clockwise, as seen by the image. You will need a flat head screwdriver to unscrew the terminal screws.

Step 2. Insert your +12v (+) wire into the left terminal as marked by the labels on the PCB (printed circuit board). Then, for the right side of the terminal block, insert your GND (-) connection. Make sure the power going through the wires isn't active yet as it can be a shorting hazard when inserting it in.

Step 3. Once the wires are inside the terminal blocks, use a flat head screwdriver to tighten the screws on top of each terminal block by rotating the screws clockwise, and once that is done, make sure the wires are not able to be released easily.

Step 4. Now, you can flip the module onto its front side, turn the power through the wires on, and you will be able to see the LCD light up with all of the data on it (a picture of what is on the screen is above), thus indicating that the module has successfully powered up!

Learn more from here:

https://www.electorials.com/review-019-xh-m219-multi-function-clock-module.html

https://www.electorials.com/ge-project-005-xh-m219-multi-function-clock-module-setup.html
