DIY Kit NE555 Electronic Component Parts Electric Piano Organ Module DIY Set with Battery Box

13032
5 9
$4.35 $3.26
Quantity10+20+
Price$3.99$2.99
Time Remaining:
- OR - Add to Wish List

Description:
The scale of the circuit can produce different sounds, while different keys correspond to different scales. The play of the electronic organ is to use the fingers to press different keys to produce different scales. The principle is that the circuit IC555 is connected to an oscillator, whose oscillation frequency is determined by the resistance of the circuit (R1- R10), so different sounds will be generated due to different keys.
This DIY product needs to be soldered and assembled by yourself.

Parameters:
1>. Power supply voltage: DC3-12V
2>. PCB size: length 13.5CM* width 2.2CM

Features:
1>. It is simple and practical, and the power consumption is small, and the circuit is driven by an integrated circuit. The parts are few, and the line is simple and clear.
2>. In the process of debugging, the understanding of the principle of the circuit will be deepened.

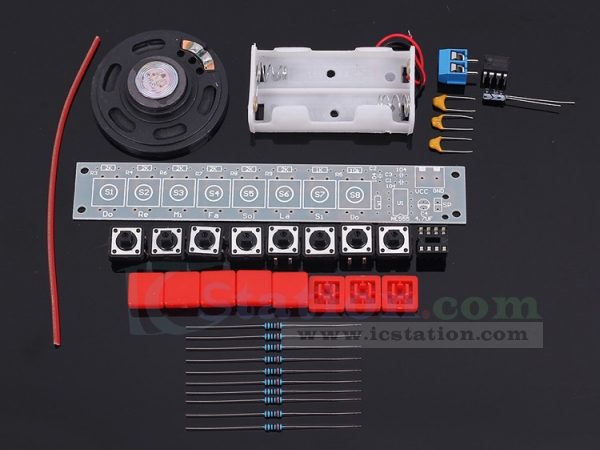

Component List:

NO. Component Name PCB Marker Parameter QTY
1 IC Socket U1 DIP-8 1
2 NE555 U1 DIP-8 1
3 KF301-2P Connector     1
4 Electrolytic Capacitor C4 4.7uF 1
5 Capacitor C1-C3 0.1uf 104 3
6 Metal Film Resistor R1,R2 1K 2
7 Metal Film Resistor R3,R4,R6-R9 2K 6
8 Metal Film Resistor R5 10K 1
9 Cable   5cm 2
10 Button S1-S8 12*12*7.3mm 8
11 Button Cap     8
12 Battery box   AA*2 1
13 Speaker SP 8ohm 0.25W 5cm 1
14 PCB   22*135mm 1

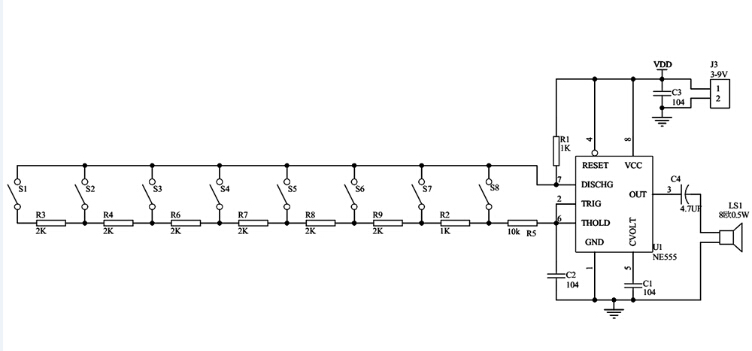

Diagram:



Finished Product Picture:





I. Tested by ICStation's Outstanding Partner Workshop MasterOK electronics Repair:

Learn More Details in the Video:



II. Tested by ICStation's Outstanding Partner The Unwanted Guy:

Learn More Details in the Video:
