10K Potentiometer Module Rotation Angle Sensor Analog Encoder Adjustable Potentiometer Module

GY20676
5 9
$5.99 $4.19
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
  It is a rotation angle sensor.The module adopts an adjustable potentiometer and distributes a rotating cap for easy viewing angle.

2.Feature:

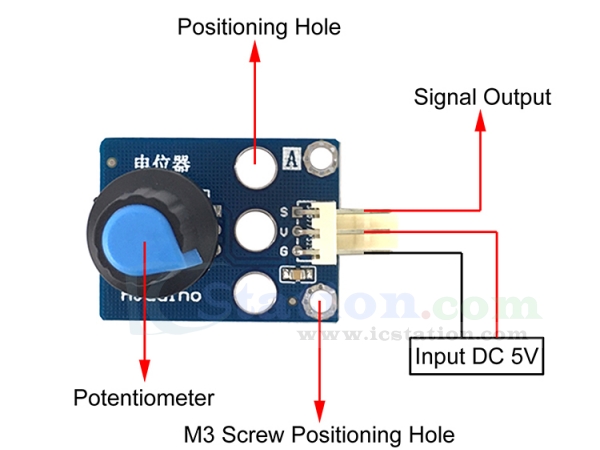

  1).The rotation angle sensor adopts the anti-reverse pin socket design,which can be connected with the anti-reverse sensor 3P line.
  2).The module adopts 10K adjustable potentiometer,and the analog signal is linear and stable.
  3).The potentiometer module has two M3 screw holes for easy module fixing.

3.Parameter:
  1).Product Name:Rotation Angle Sensor
  2).Input Voltage:DC 5V
  3).Potentiometer Resistance:B10K
  4).Signal Output Mode:analog signal output
  5).Interface Form:2.54 pitch pin header (anti-reverse socket)
  6).Fixing Method:M3 screw hole
  7).Work Temperature:-25℃~85℃
  8).Work Humidity:5%~95%RH
  9).Size:31*24*13mm

4.Application:
   1).It can be connected with the analog port of the single-chip microcomputer to control the motor speed as an adjustable resistor.
   2).A single balance wheel can be installed on its rotating head to measure the inclination,and the rotation angle is from 0 to 300 degrees.
   3).The 3P sensor cable can be used to connect with the Arduino sensor expansion board,and interactive works related to the rotational position can be easily realized by programming on various microcontrollers.

5.Package:
  1pcs Rotation Angle Sensor
